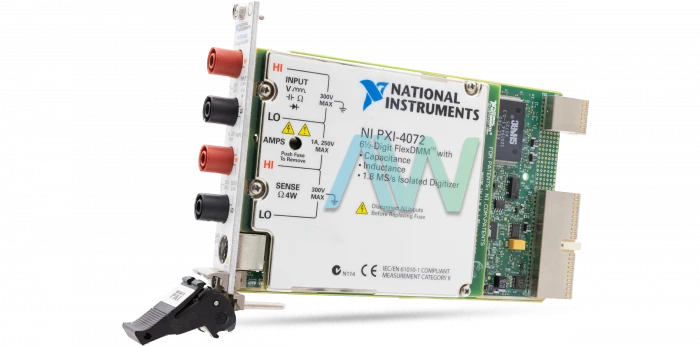

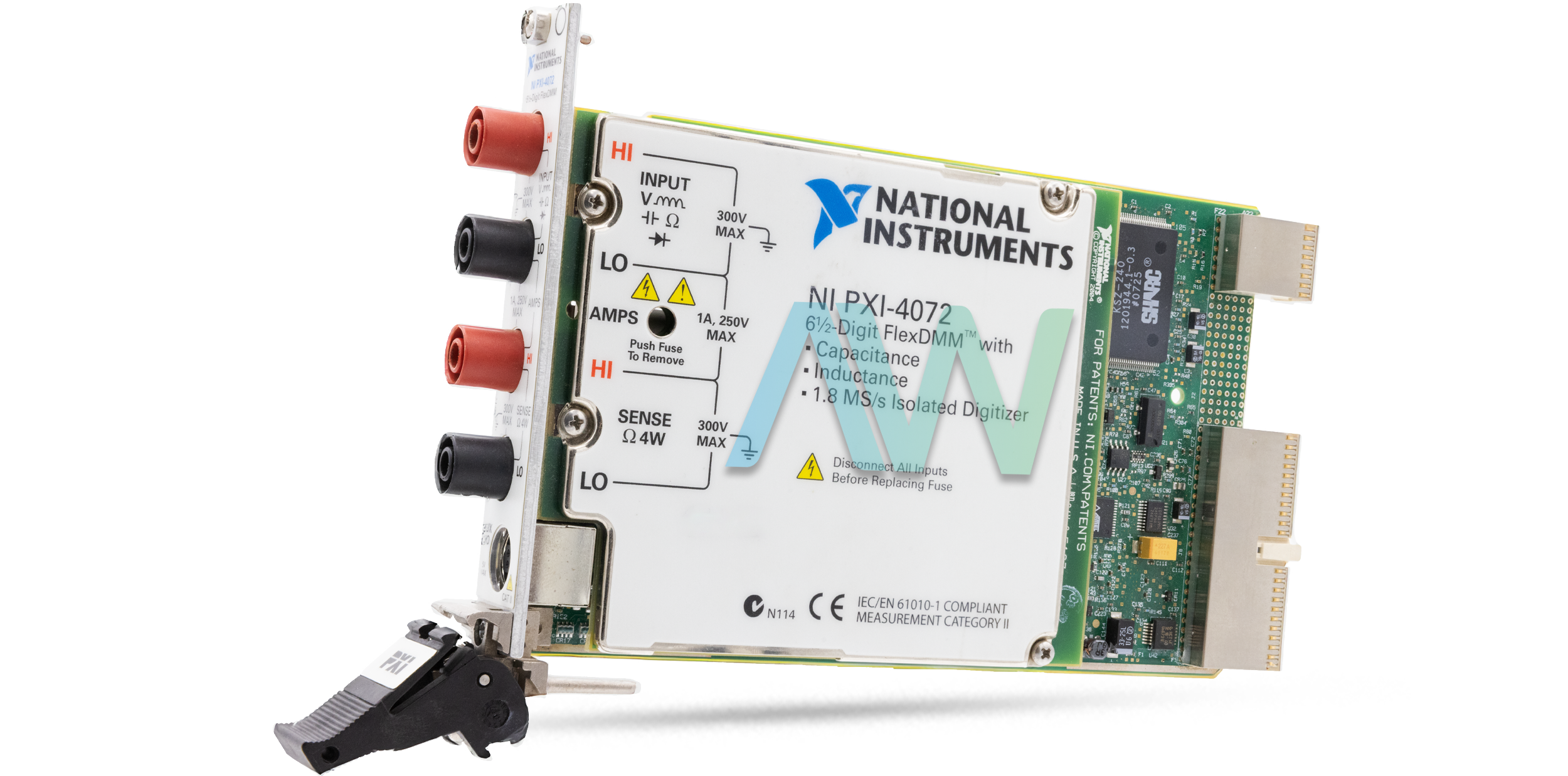

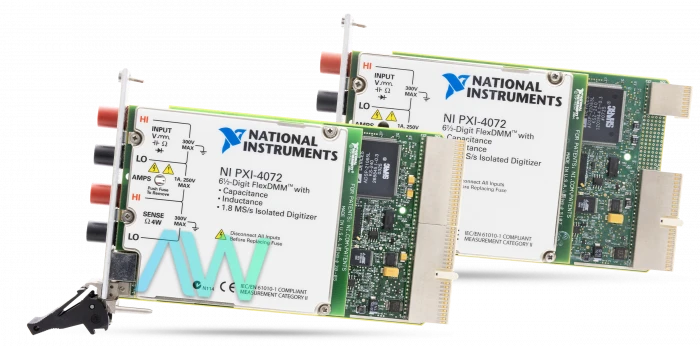

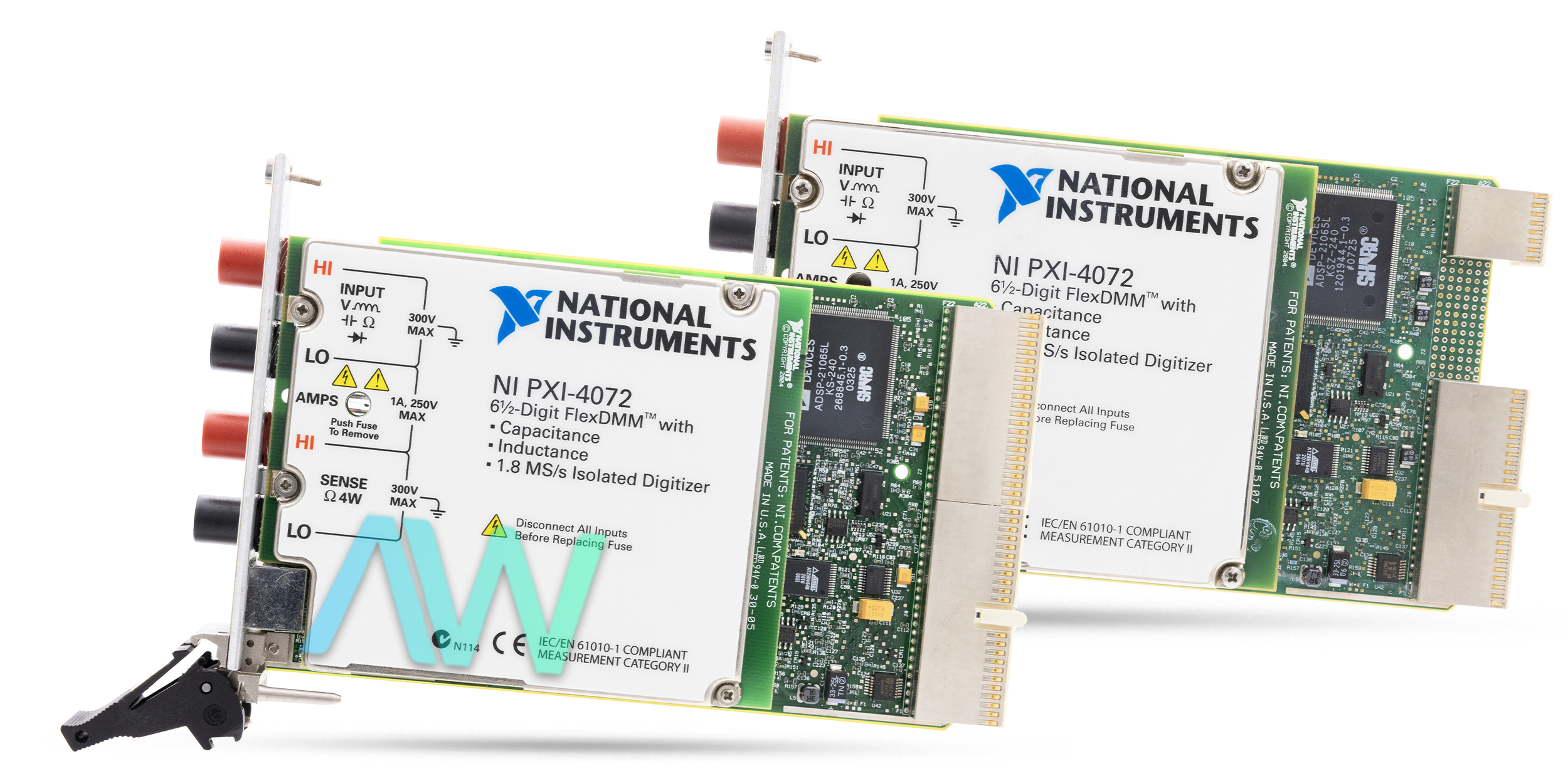

National Instruments PXI-4072 PXI Digital Multimeter
The National Instruments PXI-4072 (Part Number: 778270-01) FlexDMM gives the user the usefulness of three normal instruments in a solitary slot 3U PXI module: a 6½-digit multimeter, an LCR meter, and disengaged digitizer which has a maximum sample rate of 1.8 MS per second. The NI PXI-4072 FlexDMM brings computerized multimeters closer to providing universal estimation ability by offering the user the 20 most basic ATE estimations, including voltage, current, capacitance, inductance, temperature, and resistance. By coordinating these estimations into one PXI module, the user can diminish test framework size and cost, increment throughput, and abbreviate test development time. This model can likewise be utilized with PXI switches to frame a multichannel information obtaining framework.
These National Instruments PC-based advanced multimeters and LCR meters are upgraded for computerized test. Accessible on buses from USB to PXI, these DMMs consolidate offer more than 150 NI switch topology alternatives to make high-channel-count test frameworks. The device has a DC voltage range of -300 V to 300 V; and a DC current range of -1 A to 1 A. It is equipped with a 6.5 digit resolution. The PXI-4072 has a DC range/function change of 100/s, and an AC range/function change of 10/s. Additionally, the device has an operating ambient temperature range of 0 °C to 55 °C.
The device operates on the NI-DMM driver software. National Instruments NI PXI-4072 FlexDMM and LCR Meter drivers are minor programs that empower the Digital Multimeter to communicate with the working framework software. Keeping the NI PXI-4072 FlexDMM and LCR Meter software updated prevents crashes and amplifies equipment and framework execution. Utilizing obsolete or degenerate National Instruments PXI-4072 FlexDMM and LCR Meter drivers can cause framework blunders, crashes, and make your PC or equipment fail. Besides, introducing the wrong National Instruments drivers can aggravate these issues even more. Also, your computer should have one of the following configurations: a PCI slot, a x1, x4, x8, x16 PCI Express slot, a USB 2.0 or 1.1 slot, a PXI, PXI/CompactPCI, or PXI/SCXI combination chassis, chassis documentation, and a controller. Additional specifications for the PXI-4072 can be found in the user manuals and datasheets under the "Manuals & PDFs" tab.
The PXI-4072 has been declared Obsolete by National Instruments, but the Digital Multimeter will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-4072 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778270-01 |
| HTS Code | 8471804000 |
| Type | PXI Digital Multimeter |
| Maximum Sample Rate | 1.8 MS/s |
| Support | L and C Measurement Support |
| DC Voltage Range | -300 V to 300 V |
| DC Current Range | -1 A to 1 A |
| Digits of Resolution | 6.5 |
| Power Consumption | <12 W from PXI Backplane |
| Input Coupling | AC or DC Coupling |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -40 °C to 70 °C |
| Dimensions | 0.8 in. × 5.1 in. × 8.5 in. (2.0 cm × 13.0 cm × 21.6 cm) |
| Weight | 13 oz (370 g) |
| Warranty | Three Year Warranty |
| PXI-4072 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Submit a Quote Request for Pricing |
Associated part numbers for PXI-4072:
National Instruments PXI-4072 Frequently Asked Questions
Question: Can I use the PXI-4072 to perform an overall impedance measurement of a circuit comprised of inductive, capacitive, and resistive elements?
Answer: No, the DMM is not able to measure impedance. You can, however, calculate impedance by measuring resistance, capacitance, and inductance independently.
Question: What is the flexible resolution of the NI PXI-4072?
Answer: The Digital Multimeter has a 10 to 23-bit flexible resolution.
Question: Can the NI PXI-4072 acquire waveform rates?
Answer: Yes, it can acquire waveforms at sample rates up to 1.8 MS/s.
Question: Can the PXI Digital Multimeter be calibrated with PXI Drivers?
Answer: No, the PXI-4072 needs an option such as NI-DMM API for calibration.
