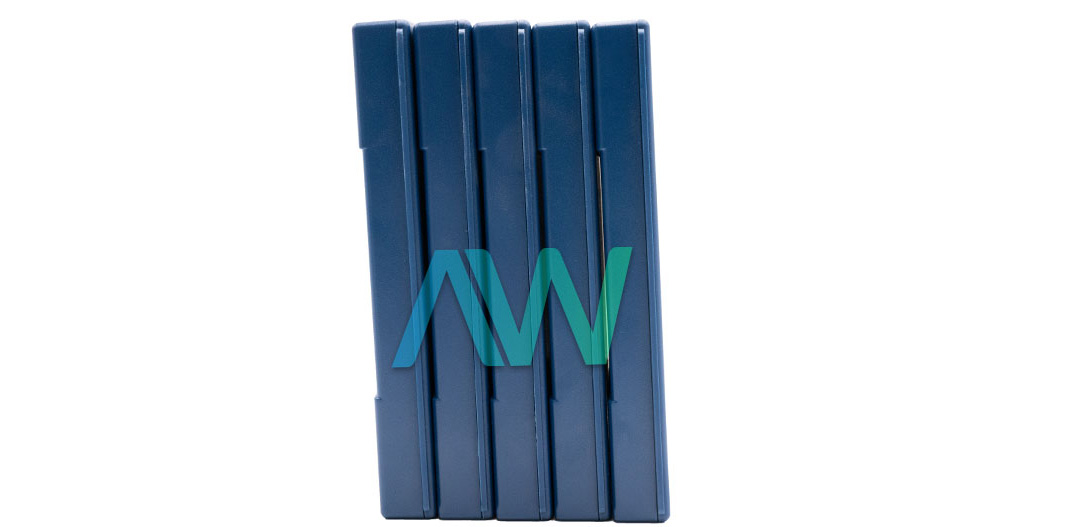

Part Number 199198-01, Set of 5, PXI Slot Blocker Kit
Rated 4.6/5 | 8 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

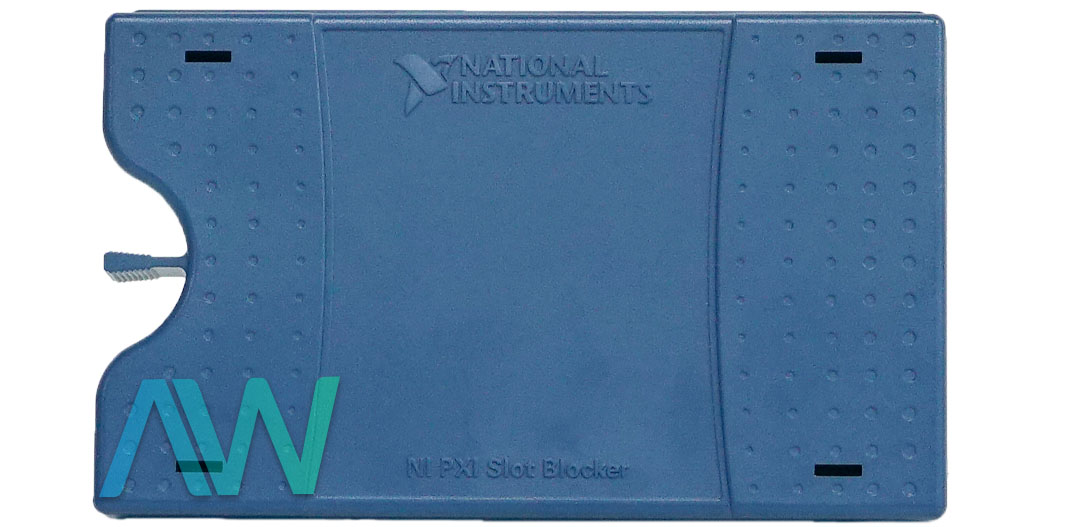

National Instruments PXI Slot Blocker
The PXI Slot Blocker (Part Number: 199198-01 (5 included in Kit)) is specially designed to occupy and provide a protective cover to empty slots in controllers and chassis to keep up system quality and performance. The PXI Slot Blocker is compatible with PXI chassis and control parts, serving an important functional purpose of enhancing performance by increasing the total system cooling. Airflow within the PXI chassis is redirected away from empty slots and towards slots occupied by PXI modules.
To enhance the cooling performance of specific PXI chassis, NI suggests use PXI Slot Blockers in conjunction with either standard or EMC filler panels. These blockers as highly recommended for PXI chassis where the chassis fan location is located in the rear. These include the PXI-104x and PXIe-106x series, the PXIe-108x series (except for the PXIe-1083 and PXIe-1088), the PXIe-109x series (except for the PXIe-1090) and the PXIe-1075. It is also recommended for PXI chassis that have the chassis fan located below the card cage. These include the PXI-103x series, the PXIe-107x series (except for the PXIe-1075), the PXIe-1083, PXIe-1088, and PXIe-1090. The PXI Slot Blocker is not recommended for use with NI PXI chassis options in which the chassis is a dual-stacked configuration.
The following things are needed in order to effectively use the PXI Slot Blocker: a compatible PXI or PXI Express chassis, a system controller that corresponds to the PXI and PXI Express chassis, peripheral modules for the PXI or PXI Express chassis, and PXI Filler Panels (sold separately). To use the PXI Slot Blockers, insert one into all of the empty slots of the PXI(e) chassis. A PXI Filler Panel should then be installed over the blocked slots in order to ensure adequate cooling for all of the modules.
The PXI Slot Blocker leverages its engineered compatibility with the PXI and PXI Express configurations to improve reliability and life span of the PXI system by improving the system’s ability to actively cool itself. While in use, the PXI Slot Blocker moves air away from open slots to filled slots. The PXI Slot Blocker should be used in applications in which enhanced cooling is required.
| Model | PXI Slot Blocker |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 199198-01 |
| Type | PXI Slot Blocker Kit |
| Compatibility | PXI / PXIe Chassis |
| Function | Increase Total System Cooling |
| Recommended For | PXI Chassis with Fans Located in the Rear or Below the Card Cage |
| Required Accessories | PXI Filler Panels (to Install Over all Slot Blockers) |
| # In Kit | 5 |
| Dimensions | For 4HP, 3U Slot Blocker: 0.7 in × 6.2 in × 3.7 in (18.2 mm × 157.5 mm × 94.9 mm) |
| Warranty | Three Year Warranty |
| PXI Slot Blocker Manual | Manual and PDFs Available for Download |
Associated part numbers for PXI Slot Blocker:
National Instruments PXI Slot Blocker Frequently Asked Questions
Question: How do I install PXI Filler Panels over the PXI Slot Blockers?
Answer: First, remove the captive screw covers (if any) from the filler panel. Then, secure the captive mounting screws to the chassis.
Question: Are there any special considerations when installing EMC Filler Panels?
Answer: When installing a EMC Filler Panel over a PXI Slot Blocker, make sure that the EMC gasket is located on the right side.
Question: What is the maximum torque that should be applied to the screws?
Answer: The maximum torque when installing panels over the PXI Slot Blocker is 2.5 in. · lb m to avoid overtightening.
