National Instruments BNC-2090 Rack-Mount BNC Accessory

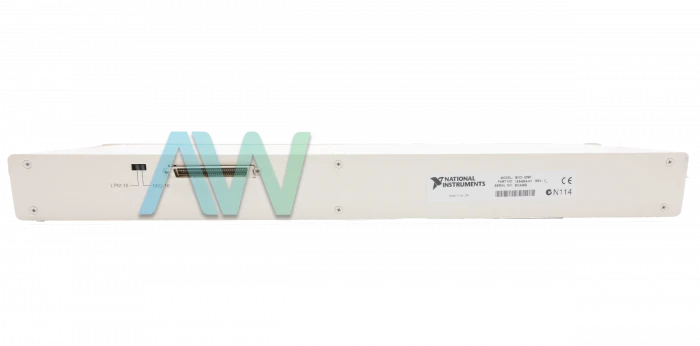

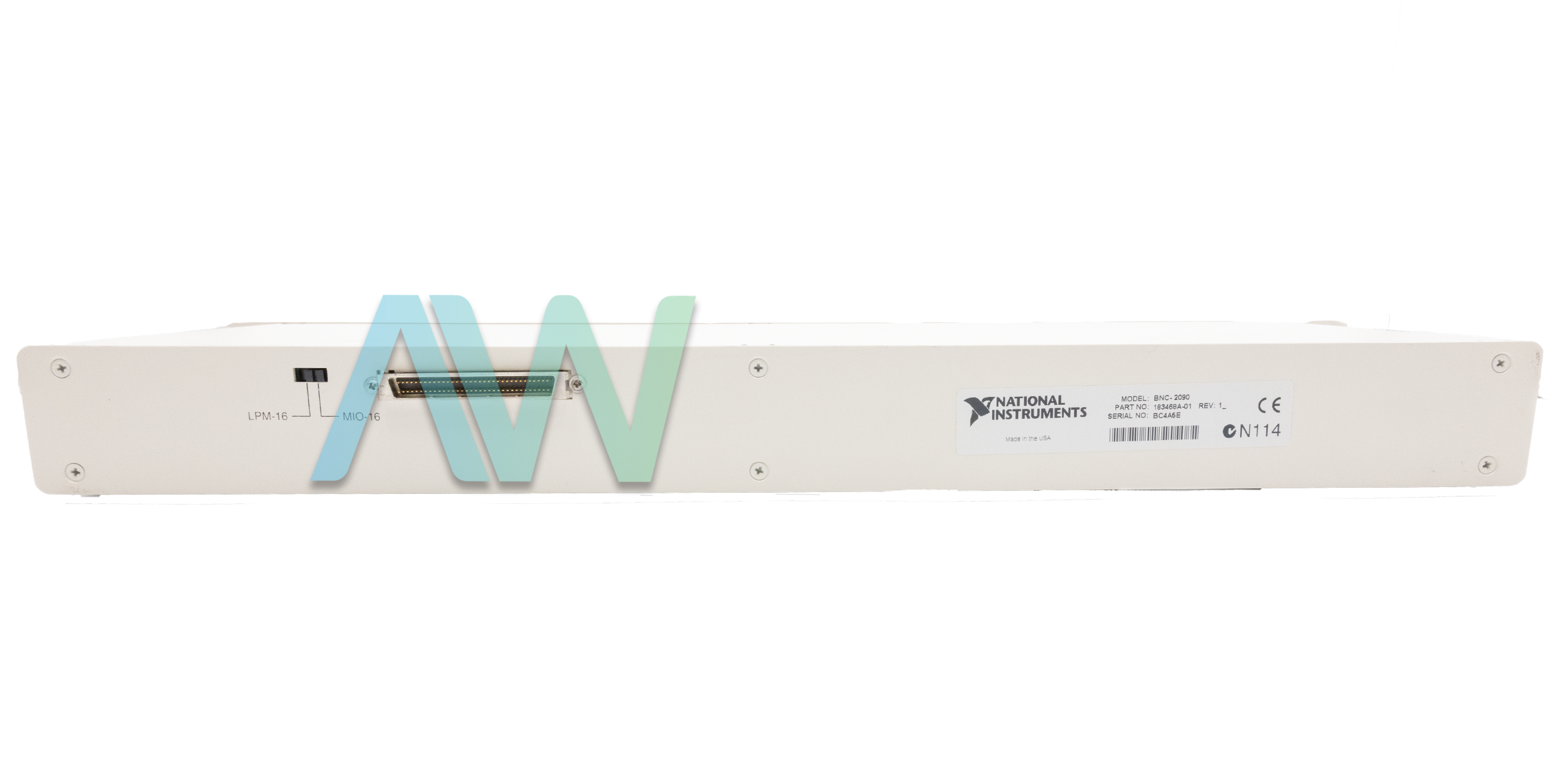

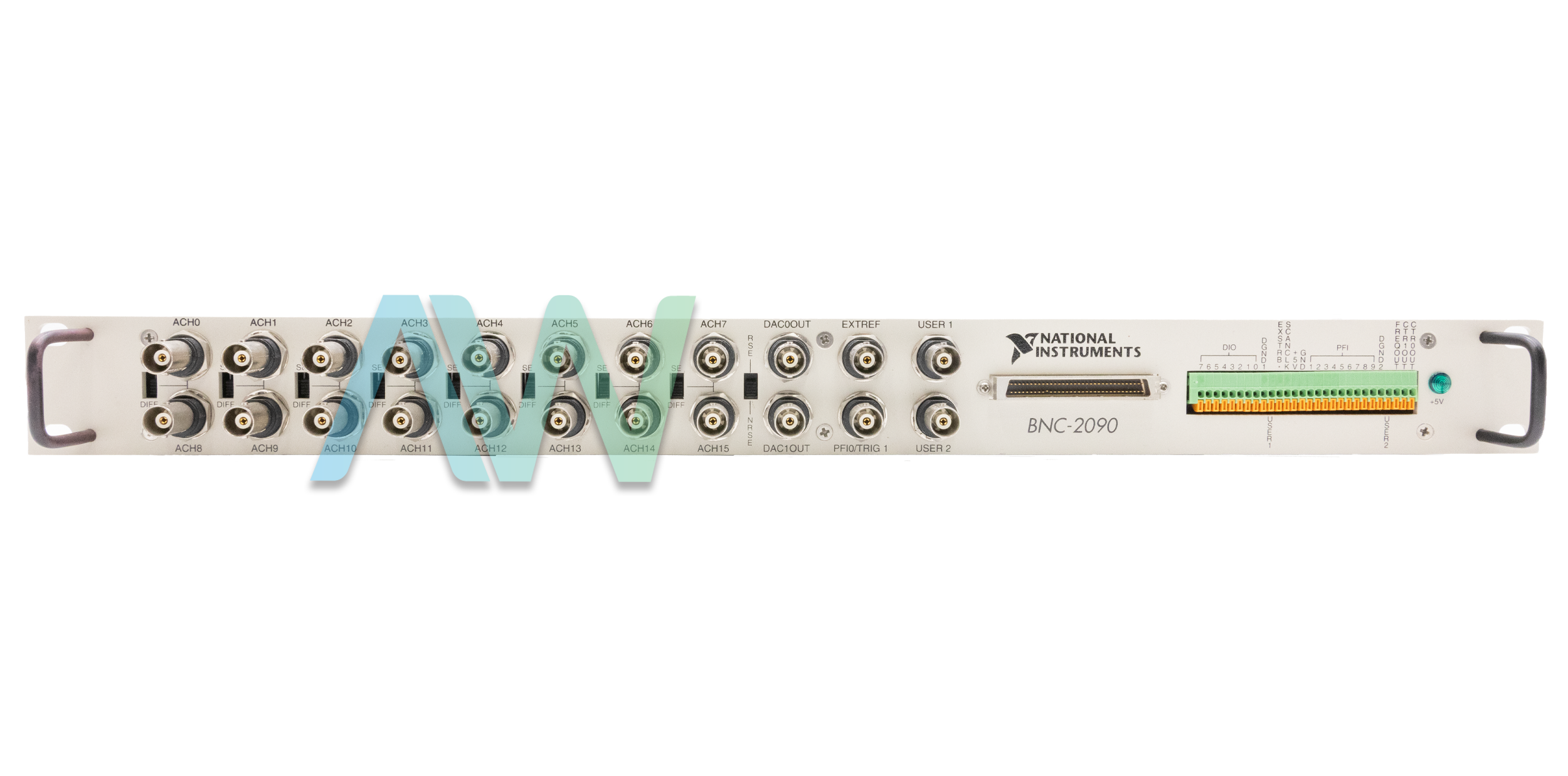

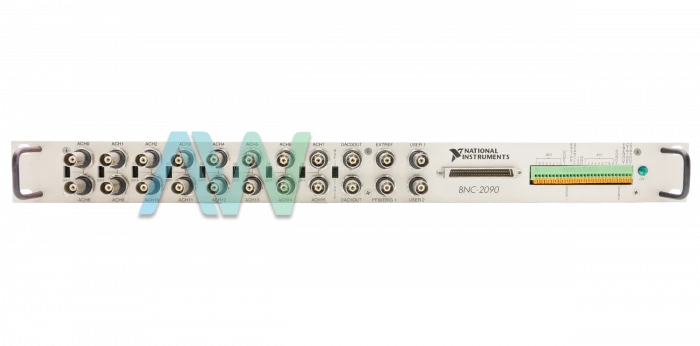

The National Instruments BNC-2090 (Part number: 777270-01) BNC Terminal Block comes with signal marked BNC connectors, spring terminal blocks, and analog signal molding zones to simplify the connection of simple signals and advanced signals to the DAQ board for use in lab, test, and production environments. The user can design the BNC-2090 to utilize eight differential or 16 single-ended analog input channels. The BNC-2090 has silkscreened segment areas for resistors and capacitors for building single pole high-pass and low-pass filters and voltage dividers. This Rack-Mount Accessory is equipped with two 68-position male connectors, and it is compatible with MIO DAQ boards (50-, 68-, or 100-pin) or 50-pin PC-LPM-16 DAQ boards. In addition, it is fitted with 22 BNC connectors (18 analog, 2 digital, and 2 user-defined) and 28 spring terminal blocks–all for field connections.
If the user needs to quantify floating signal sources, then they can arrange the MIO board for DIFF or NRSE mode. Both require bias resistors. However, if the user needs to quantify ground-referenced signal sources, they can configure the MIO board for the NRSE mode or DIFF mode. Lastly, if the user needs to configure the MIO board in the RSE mode, every one of the 16 simple input channels are referenced to AIGND.
In this model, attenuators or voltage dividers permit voltage estimations bigger than the highest input range of MIO boards. For instance, voltage signals in the ±20 V range can be estimated by building a 2:1 voltage divider circuit. The user can interface attenuators to the analog inputs of the BNC-2090 when the inputs from its DAQ board are in DIFF mode. The BNC-2090 open segment positions do not encourage voltage dividers with the MIO board designed for single-finished information signals.
The BNC-2090 measures 19.0 x 1.7 x 7.4 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0° to 70° C and -55° to 125° C respectively, and a non-condensing relative humidity range of 5% to 90%.
The BNC-2090 is no longer available from National Instruments, but the BNC accessory will be available in perpetuity with Apex Waves for either purchase or repairs!
| Model | BNC-2090 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777270-01 |
| Series | CompactDAQ |
| Type | Rack-Mount BNC Accessory |
| BNC Connectors | 22 |
| Analog Input Channels | 16 Single Ended or 8 Differential |
| I/O Connector | Two 68-Position Connectors (Male) |
| Spring Terminal Blocks | 28 |
| Power Requirement | 10 mA (Typical), 1 A (Maximum) |
| Relative Humidity | Noncondending, 5% to 90% |
| Operating Temp Range | 0° to 70° C |
| Storage Temp Range | -55° to 125° C |
| Dimensions | 19.0 in x 7.4 in x 1.7 in (43.2 x 18.8 x 4.4 cm) |
| Warranty | Three Year Warranty |
| BNC-2090 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for BNC-2090:
National Instruments BNC-2090 Frequently Asked Questions
Question: Does the BNC-2090 provide access to DIO?
Answer: Yes, the terminal strip of the device provides access to both Digital I/O and counter/timer features.
Question: What can the BNC-2090 be connected to?
Answer: This connector accessory is designed to be used with a 50, 68, or 100-pin MIO DAQ board, or a 50-pin LPM-16 DAQ board.
Question: What modes is the BNC-2090 able to be set in?
Answer: It can be set in three different modes for application specific measurements, if all channels are configured for the same mode. The modes are differential, nonreferenced single-ended (NRSE), or referenced single-ended (RSE).
