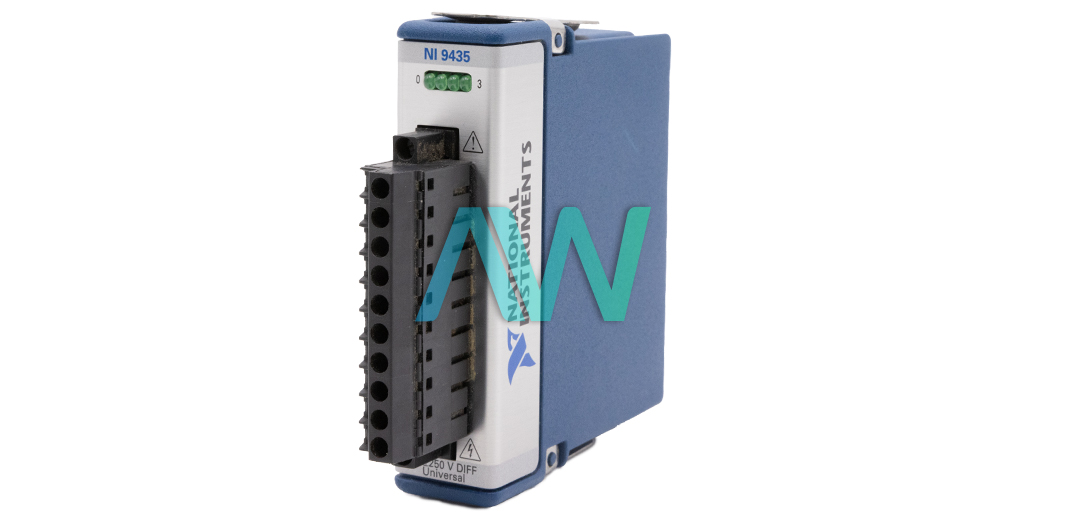

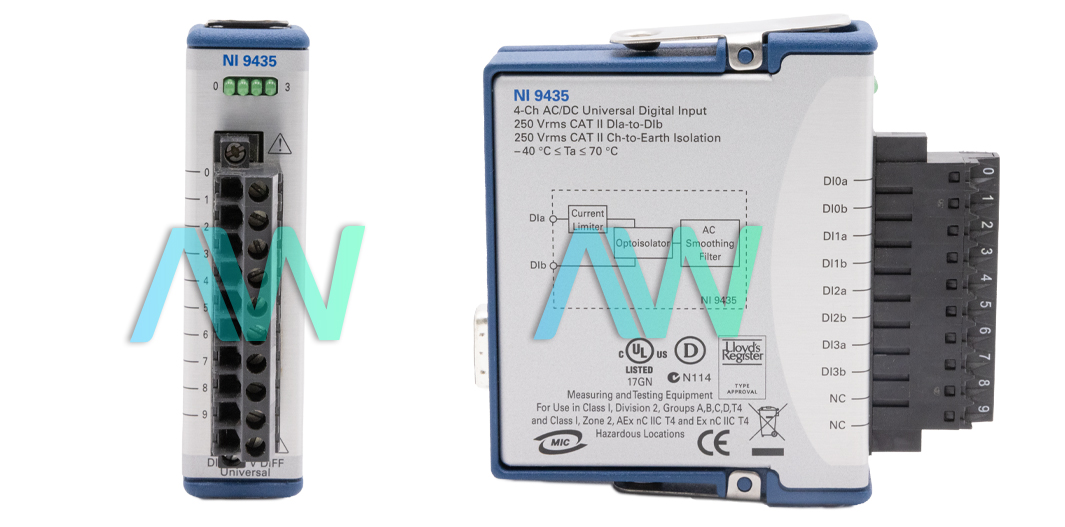

National Instruments 779010-01 C Series Digital Module

Part number 779010-01 is the identifying part number for the National Instruments NI-9435 C Series Digital Module. The module has a broad range of digital logic levels which makes it suitable for use with a wide range of industrial-grade sensors, switches, and other devices.

The 779010-01 features 4 digital input channels that can be configured in both sinking or sourcing mode. It supports input signals from ±5–250 VDC and from 10–250 VAC. As for the digital logic levels, in the OFF state, the input voltage remains ≤±1 VDC/VACpeak while the input current is ≤±200 µA DC/ACpeak. In the ON state, the DC input voltage and DC input current are ≥±4 VDC and ≥ 600 µA DC while the AC input voltage is ≥10 Vrms at 50/60 Hz and  ≥3 Vrms at 1 kHz. Furthermore, the maximum input delay time for the module is 2.8 ms.

The 779010-01 consumes a maximum of 105 mW of power from the chassis while in the active mode. In the sleep mode, the maximum power consumed is just 1.3 mW. On the other hand, the thermal dissipation in active mode and sleep mode at  70 °C is 1.4 W (max) and 1.35 W (max) respectively. There is no channel-to-channel isolation while the channel-to-earth isolation is 250 Vrms continuous.

The recommended temperature range for the operation of the 779010-01 is –40 to 70 °C  at a relative humidity of up to 10% to 90% RH. Similarly, the device can only be utilized indoors and up to a 2000-meter maximum height (it needs to be within an appropriate enclosure to be used outdoors). On the other hand, it can be stored at –40 to 85 °C at a relative humidity of  5% to 95% RH. The device has an IP 40 ingress protection rating and complies with IEC, EN, UL, and CSA safety regulations for electrical equipment used in measurement, control, and laboratories. The MTBF (mean time between failure) for the module is 700,726 hours at  25 °C.

Part Number779010-01
Model NameNI-9435
Part TypeC Series Digital Module
Number of Digital Input Channels4
Input TypeSinking or sourcing
Input Voltage250 VAC, ±250 VDC max
Input Delay Time2.8 ms (max)
Power Consumption From Chassis105 mW (max) in active mode; 1.3 mW (max) in sleep mode
Digital I/O Isolation250 Vrms Channel-to-Earth Ground Isolation
MTBF700,726 hours at 25 °C
