National Instruments 779126-01 C Series Motor Drive Interface Module

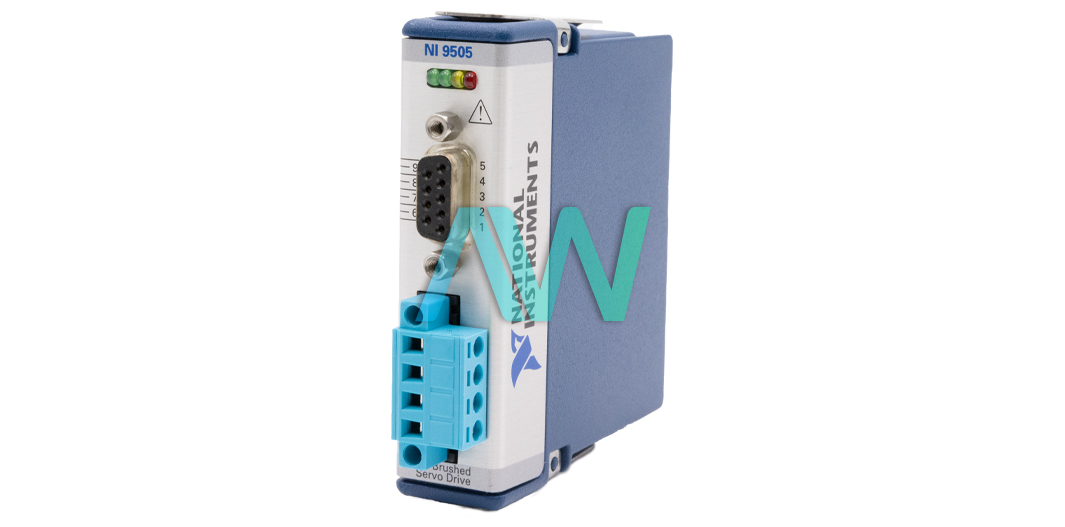

National Instruments part number 779126-01 describes the NI-9505 DC Brushed Servo Motor Drive, a C Series Module equipped with a 9-pin female DSUB connector for use in various testing scenarios. The 779126-01 offers incredible customization and flexibility for the user, combining with a LabVIEW FPGA Module to provide a configurable actuator amplifier or motor drive.

Connection to a DC brushed servo motor and a motor DC power supply can be achieved via the screw terminal connector of the 779126-01. While using one wire for the screw terminal is recommended, a 2-wire ferrule can be used to utilize two wires. The Motor DC power supply for the 779126-01 is designed to operate within a voltage range of 8 to 30 VDC.

To protect the 779126-01, it’s power supply includes safeguards that protect from undervoltage, overvoltage, and reverse polarity.

Another important feature of 779126-01 drive are the encoder inputs. These three inputs can be configured as either single-ended (TTL compatible) or differential. Both of these input types operate in a voltage range of 0 to 5.5 VDC, while the threshold of the inputs ranges from 0.8 V to 2.4 V.

Designed for use in a variety of test setups, the power consumption of the 779126-01 is 100 mW when in active mode and only 0.4 mW while in sleep mode. The screw terminal wiring of the module has a gauge range for copper conductors of 0.2 mm² to 2.5 mm² (26 to 14 AWG), with a temperature rating of 90 °C (194 °F). The device weighs 155 g (5.5 oz)

Part Number779126-01
Model NameNI-9505
Part TypeDC Brushed Servo Motor Drive
Motor DC Power Supply Voltage Range8 to 30 VDC
Connectors9 Pin DSUB, Screw Terminal
Maximum Power Consumption100 mW (Active Mode), 0.4 mW (Sleep Mode)
Encoder Input Voltage Range0 to 5.5 VDC
Threshold Input Range0.8 V to 2.4 V
Weight155 g (5.5 oz)
WarrantyThree Year Warranty
ManufacturerNational Instruments (NI)
