779787-01, C Series, 32 Channels, DSUB Connection, NI-9403 Digital I/O Module

Rated 4.9/5 | 17 ratings

779787-01 NI-9403 Digital I/O Module | Apex Waves | Image
779787-01 NI-9403 Digital I/O Module | Apex Waves | Image
779787-01 New
779787-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

779787-01 NI-9403 Digital I/O Module | Apex Waves | Image
779787-01 NI-9403 Digital I/O Module | Apex Waves | Image
779787-01 New
779787-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 779787-01 C Series Digital Module

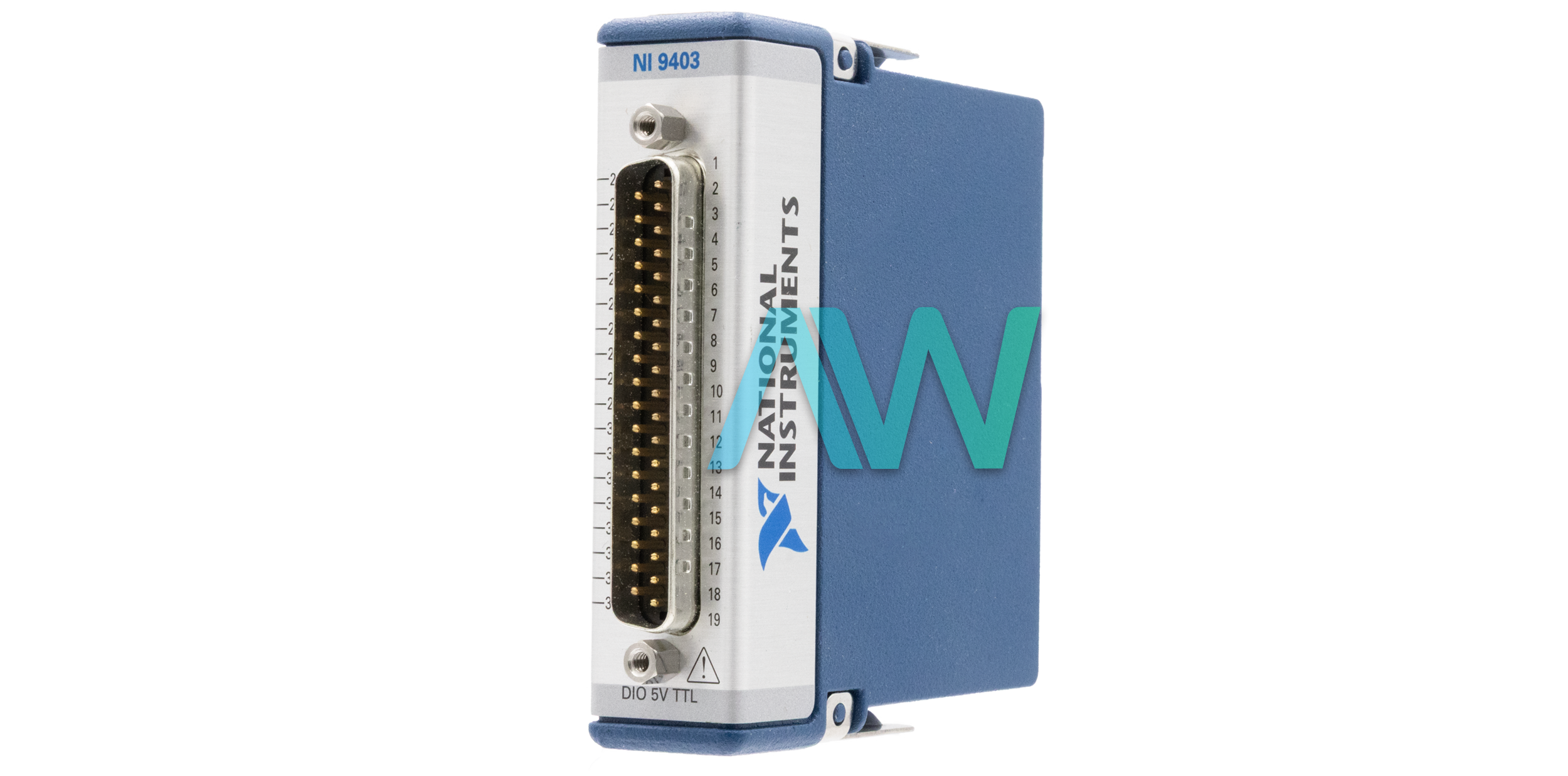

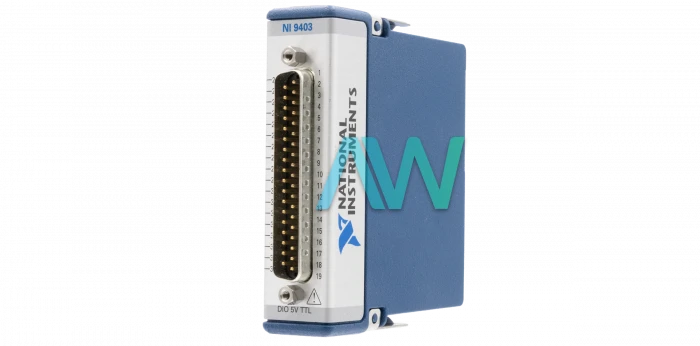

The National Instruments 779787-01 is an identifying part number of the NI-9403, designed as a digital I/O interface with 32 bidirectional channels that provides input and output functions. Each channel has transient isolation between the I/O channels and the backplane and can handle five V/TTL signals. Users can program the module using the LabVIEW FPGA Module thanks to its reconfigurable I/O (RIO) technology, which is proprietary to CompactRIO systems. Because of its adaptability, the 779787-01 can be used for a wide range of tasks, such as pulse generation, digital communication protocols, and bespoke high-speed counter/timers.

The 779787-01 is a software-timed, static digital I/O module that fits inside a CompactDAQ chassis. Unfortunately, because of the serial data transfer, it is unable to allow the routing of timing or triggering signals. The module is designed with characteristics including 60 VDC CAT I isolation, ±30 V overvoltage protection, and up to 2 mA output current per channel. These features guard against harm from electrical malfunctions and guarantee dependable functioning in a variety of scenarios.

Each digital line on the 779787-01 module has a programmable direction for input and output operations. It is in the input power-on state by default. A maximum input current of ±250 µA and an input capacitance of 30 pF are examples of the input parameters. The module provides an output with a channel-to-channel skew of 265 ns and a propagation delay of up to 330 ns. With the cRIO-9151 R Series Expansion chassis, the update/transfer time is 8 µs; for all other chassis, it is 7 µs, with an 18 µs direction change time.

For input signals, the module runs between -0.25 V to 5.25 V in voltage. With a minimum hysteresis (VH) of 0.2 V, it can detect low input signals (VIL) at a maximum of 0.8 V and strong input signals (VIH) at a minimum of 2.2 V. The 779787-01has the capability to produce a minimum 4.75 V high output voltage (VOH) when sourcing 100 µA and 4.4 V high output voltage (VOH) when sourcing 2 mA. At a maximum of 0.1 V while sinking 100 µA and 0.26 V when sinking 2 mA, the low output voltage (VOL) is measured.

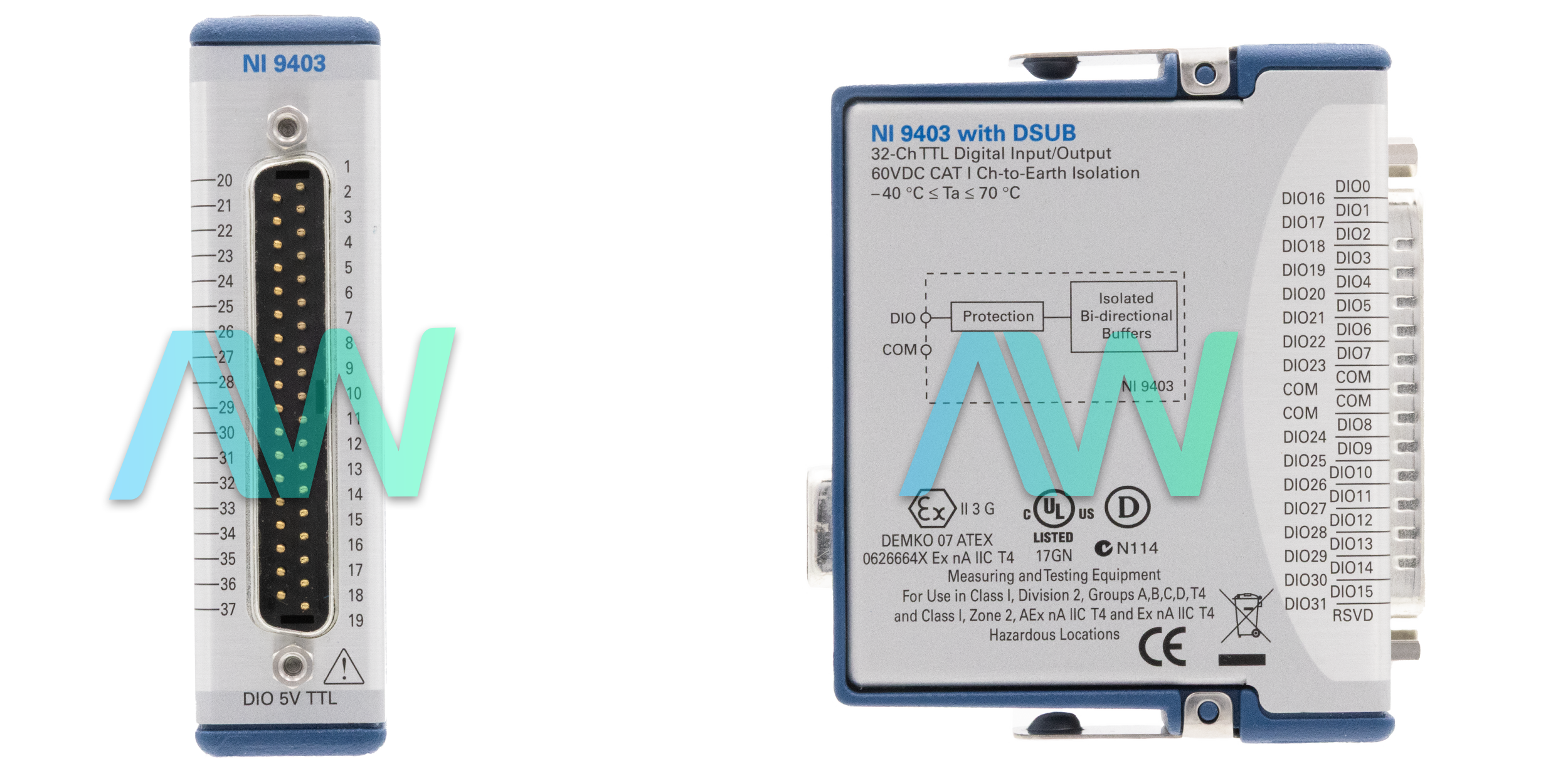

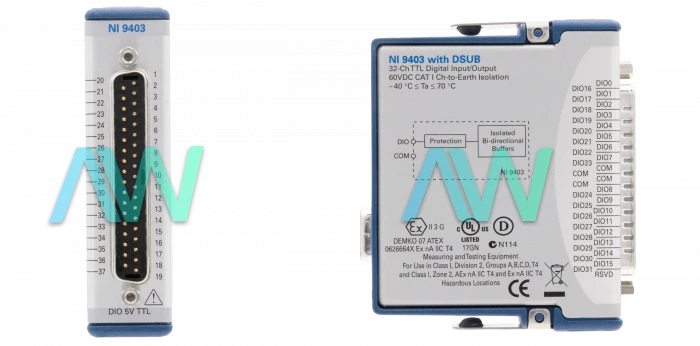

Part Number779787-01
Model NameNI-9403
Part TypeC Series Digital Module
Number of Channels32 bidirectional digital I/O channels
Signal TypeTTL, single-ended
Voltage Compatibility5 V/TTL
Isolation60 VDC, CAT I
Overvoltage Protection±30 V on up to 8 channels
Propagation Delay330 ns maximum
Update/Transfer Time7 µs maximum (all other chassis), 8 µs (cRIO-9151 R Series Expansion)
