785190-01, ±10 V, NI-9264 Voltage Output Module with Spring Terminal Connectors

Rated 4.9/5 | 8 ratings

785190-01, Spring Terminal NI-9264 Module | Apex Waves | Image
785190-01, Spring Terminal NI-9264 Module | Apex Waves | Image
785190-01 New
785190-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

785190-01, Spring Terminal NI-9264 Module | Apex Waves | Image
785190-01, Spring Terminal NI-9264 Module | Apex Waves | Image
785190-01 New
785190-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 785190-01 Voltage Input Module

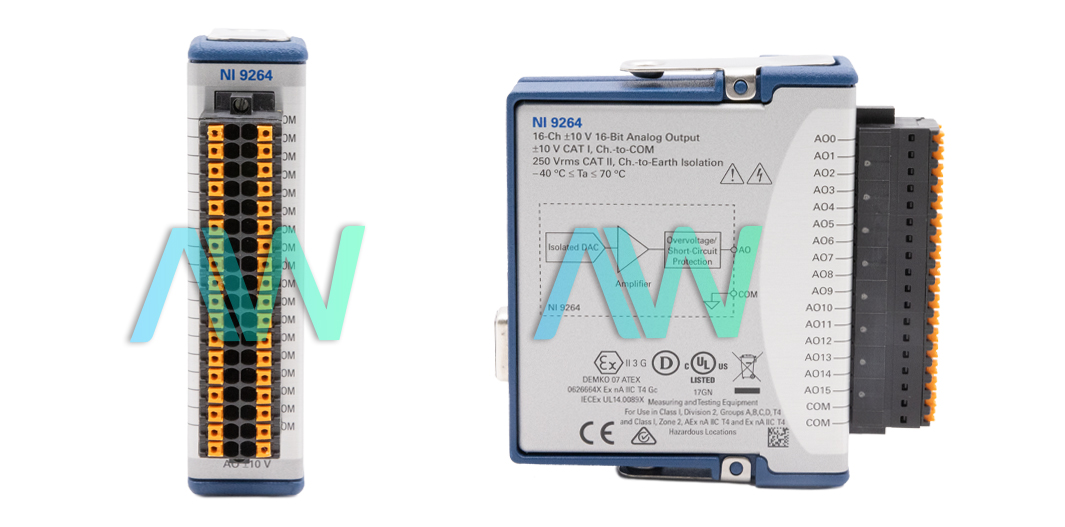

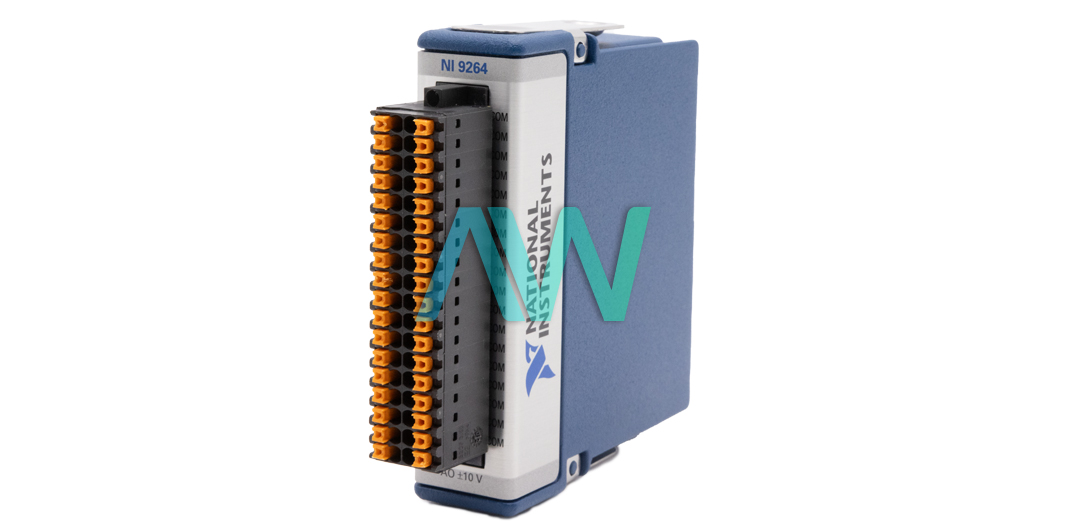

National Instruments part number 785190-01 is the version of the NI-9264 Voltage Input Module with spring terminal connectors. These versatile connectors provide the module with safe and dependable connections under a variety of testing conditions. With 16 analog output channels and a string type DAC that has a resolution of 16 bits, the 785190-01 is an excellent choice for applications across both CompactRIO and CompactDAQ systems.

The push-in, spring-terminal wiring of the 785190-01 has a wire gauge of 0.14 mm² to 1.5 mm² (26 AWG to 16 AWG). Each wire is fastened using screw flanges and has a 10 mm (0. 394 in.) strip of insulation removed from the end, which facilitates stable and secure electrical connections. The screw flanges that keep the wires in place are fastened with a torque of 0.2 N · m (1.80 lb · in.).

The voltage output range of the 785190-01 spans from a minimum of ±10.35 volts to a maximum of ±10.65 volts, with a typical output of ±10.5 volts. At both startup and power-down, the voltage of the module is 0, enhancing safety for the user. The 785190-01 is capable of providing a maximum current drive of ±16 mA across all of its channels, and has an output impedance of 2.0 Ω.

The 785190-01 features 250 Vrms of channel-to-earth isolation voltage, and has no interference in channel-to-channel isolation. This robust voltage input module can withstand up to 3,000 Vrms, providing functionality in some of the most challenging conditions. Easy to place in various test setups, the 785190-01 weighs in at only 161 g (5.7 oz).

Part Number785190-01
Model NameNI-9264
TypeVoltage Input Module
Compatible WithCompactDAQ and CompactRIO
Connector TypeScrew Terminal
Wire Gauge Range26 AWG to 16 AWG (0.14 mm² to 1.5 mm²)
Voltage Output Range±10.35 V to ±10.65 V
Max Current Drive±16 mA
Weight161 g (5.7 oz)
WarrantyThree Year Warranty
ManufacturerNational Instruments (NI)
