National Instruments NI-9203 C Series Current Input Module
The National Instruments NI-9203 (Part Numbers: 779516-01, 783731-01, 779516-02) is a Current Input Module from the C Series. This 8-Channel module can acquire samples at 200 kS/s and is intended for high-performance monitoring and control applications. Its 8 single-ended analog input channels have a resolution of 16 bits. The NI-9203 comes featured with variable connectivity and programmable input range options. To safeguard the device against signal transients, this module has 250 Vrms, channel-to-ground dual isolation barrier. In addition, this Current Input Module has an integrated overvoltage protection for each channel that is set at ±30 V.

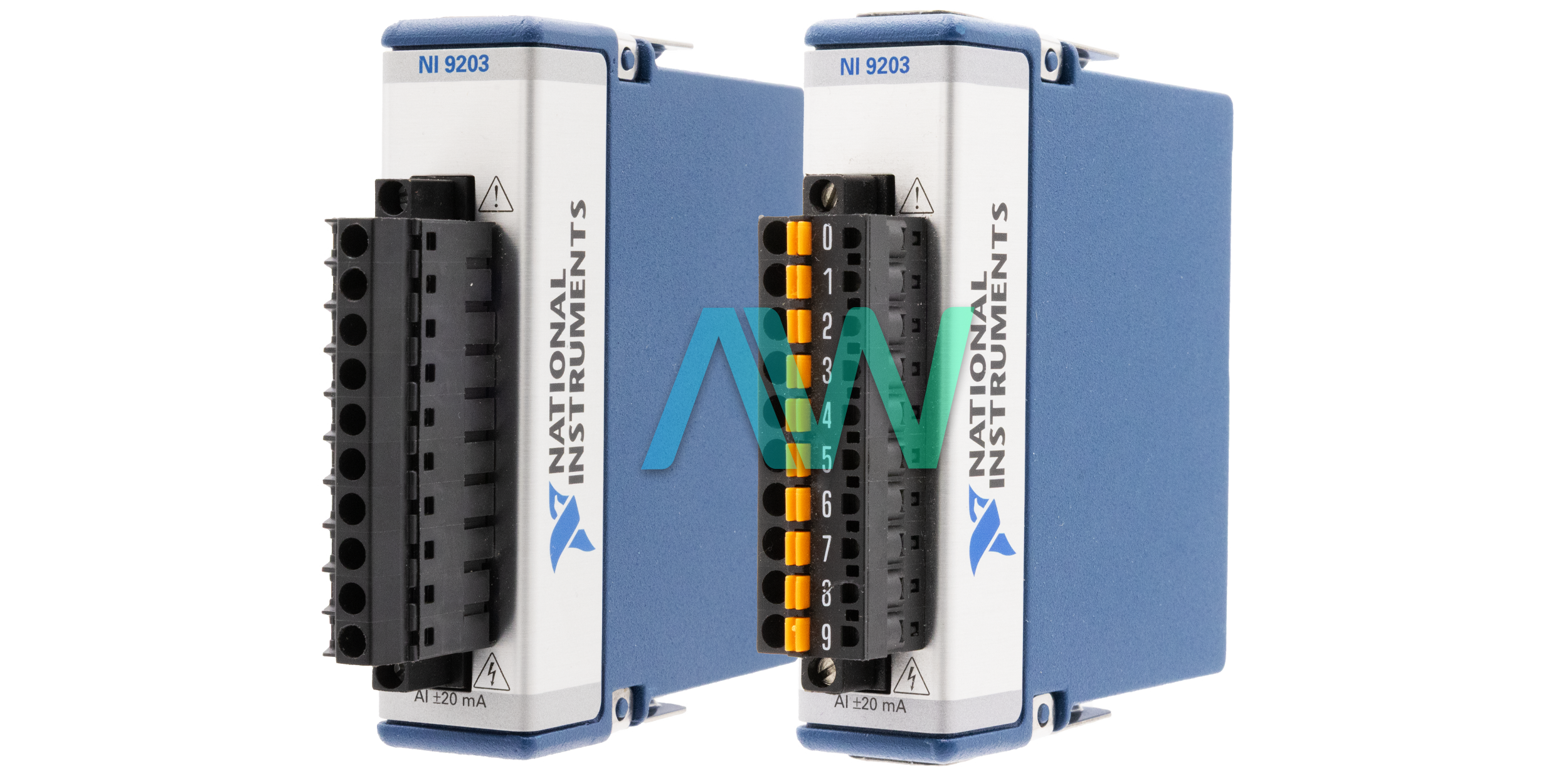

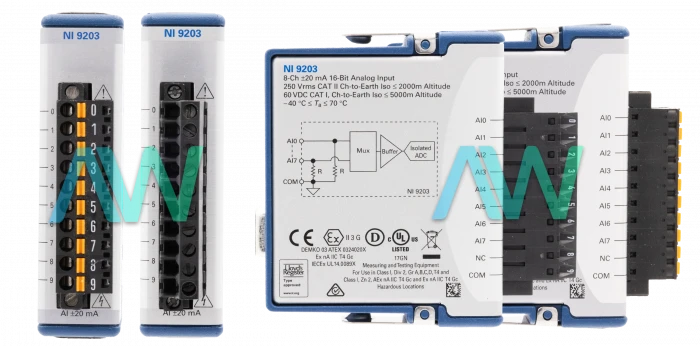

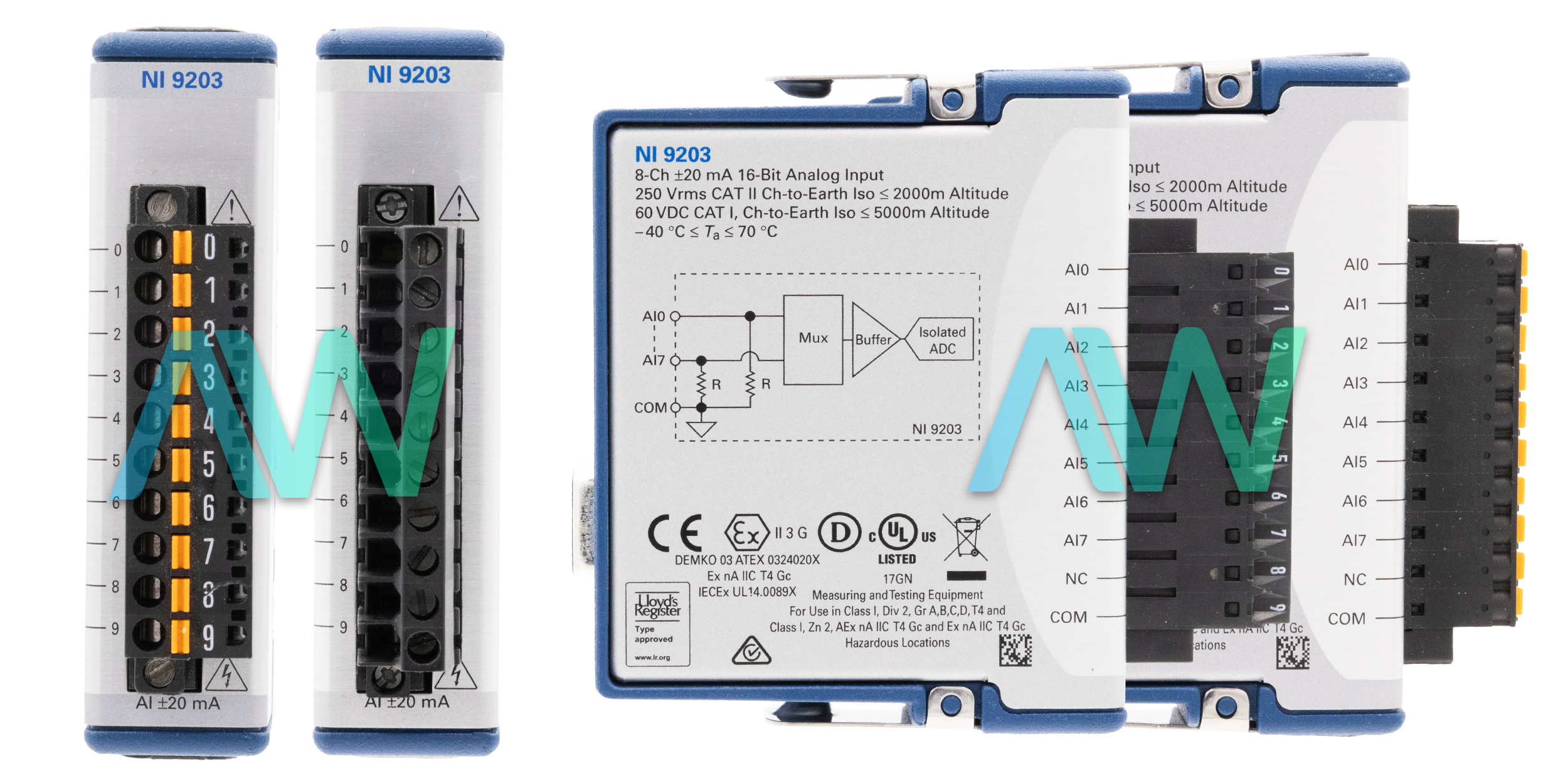

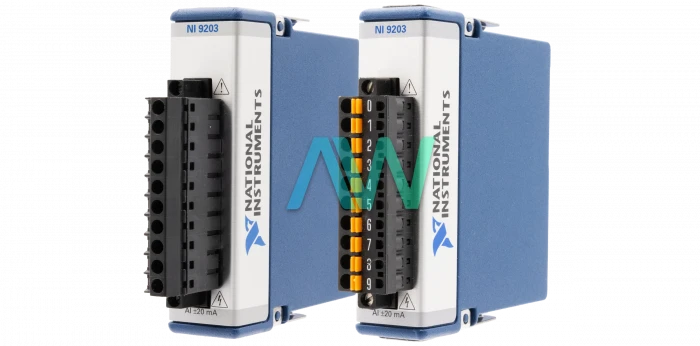

The National Instruments NI-9203 is available in three variations since it can be outfitted with several different connector types: a Screw Terminal (Part Number: 779516-01), Spring Terminal (Part Number: 783731-01), and a Conformal Coated Screw Terminal (Part Number: 779516-02). The addition of conformal coating provides the terminals with maximum protection against moisture. All other specifications of the NI-9203 are the same. For example, the module can measure current within a range of -20 mA to 20 mA. The printed circuit board of the NI-9203 is contained within a protective housing.
The device is run using the NI-DAQmx 9.2 driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, C/C++, C#, or Visual Basic .NET. The device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.
The input circuitry of this Current Input Module includes a single 16-bit successive approximation or SAR ADC. The ADC’s function is to buffer, condition, and sample the input signals. A properly calibrated NI-9203 can operate with ±0.04% gain error (or ±0.05 with Bipolar accuracy) and ±0.02% offset error provided that the temperature is 25 °C, ±5 °C. Also, the NI 9203 module consumes 399 mW of maximum power in active mode and 5 mW maximum power in sleep mode. When used with an R Series Expansion Chassis, this module offers 5.2 μs min conversion time. The NI-9203 module delivers overvoltage protection for every channel. However, only a single channel can be in the overvoltage setting at a time. The device has a recommended operating temperature range of –40 to 70 °C.
| Model | NI-9203 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783731-01, 779516-01, 779516-02 |
| Type | C Series Current Input Module |
| Single-Ended Analog Input Channels | 8 |
| Maximum Sample Rate | 200 kS/s |
| Analog Input Resolution | 16 Bits |
| Front Connector | Spring Terminal or Screw Terminal |
| Measure Current | -20 mA to 20 mA |
| Max Chassis Power Consumption | 399 mW (Active), 5 mW (Sleep) |
| Max Safety Voltages | ±30 VDC Channel-to-COM |
| Ingress Protection | IP 40 |
| Operating Temp Range | -40 °C to 70 °C |
| Storage Temp Range | -40 °C to 85 °C |
| Warranty | Three Year Warranty |
| NI-9203 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for NI-9203:
National Instruments NI-9203 Frequently Asked Questions
Question: What is the input impedance of the NI-9203?
Answer: The input resistance of the module is 138 Ω.
Question: How long is the calibration interval for the Current Input Module?
Answer: The recommended calibration interval of the NI-9203 is one year.
Question: What is the analog input isolation of the module?
Answer: The analog input isolation is 250 VRMS Ch-Earth Ground Isolation.
Question: Is the NI-9203 enclosed?
Answer: Yes, all versions of the NI-9203 Current Input Module are enclosed.
