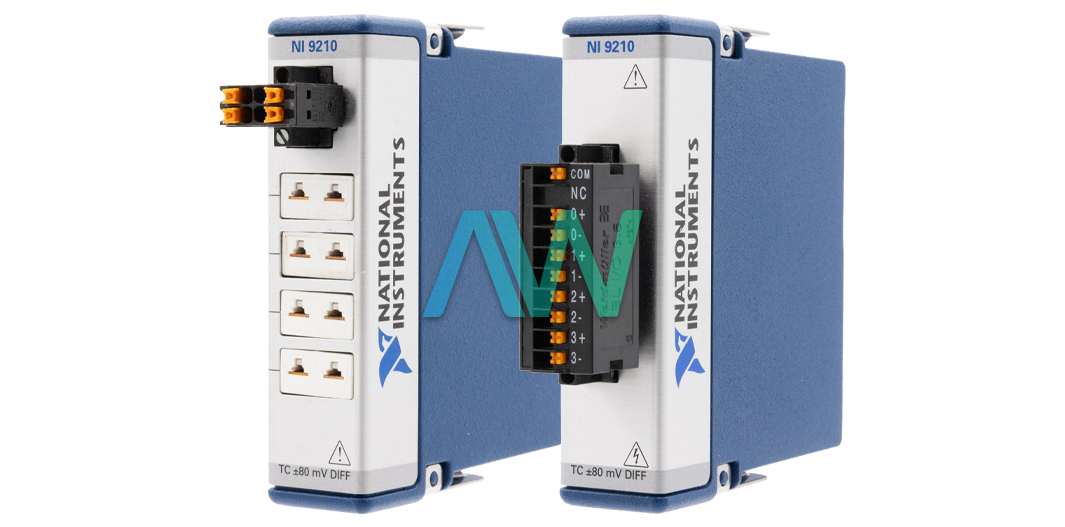

National Instruments NI-9210 C Series Temperature Input Module

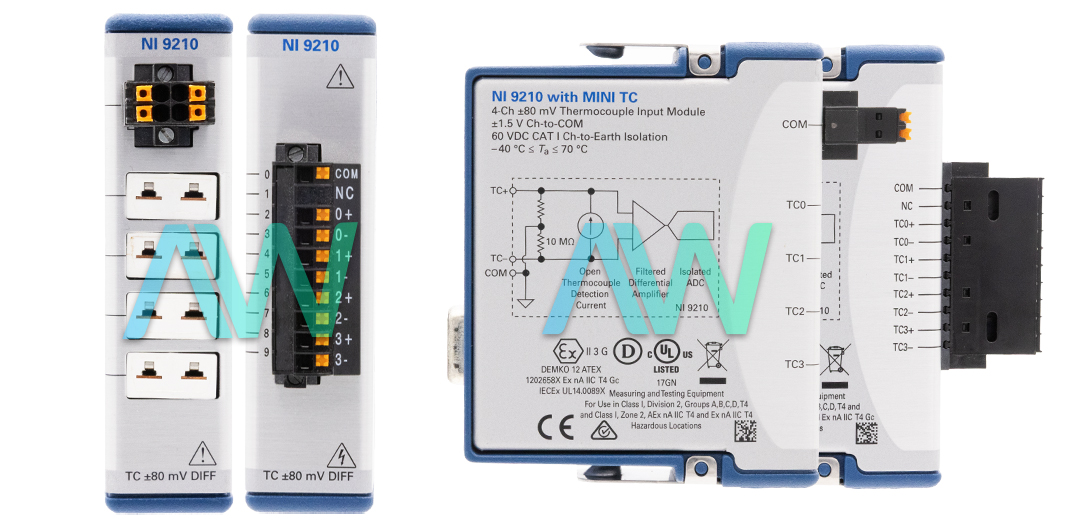

The NI-9210 is a C Series Temperature Input Module from National Instruments. There are two versions of this module. Part number 784788-01 has 60 Vrms Ch-Earth Ground Isolation and a Miniature Thermocouple (mini-TC) front connector. Part number 785043-01 has 250 Vrms Ch-Earth Ground Isolation and a Spring Terminal front connector. This module is ideal for thermocouple measurements with high accuracy. Supported hardware platforms for the NI-9210 module are CompactDAQ/CompactRIO systems. This module features NIST-traceable calibration. The channels of the NI-9210 have a dual isolation barrier. These features make it safe, noise immune, and provide a high voltage range. The NI-9210 module takes inputs from thermocouples and RTDs. The NI 9210 supports all standard thermocouples.
The NI-9210 Temperature Input Module has four differential analog input channels with a Delta-Sigma type ADC. The resolution of the ADC is 24 bits. The NI-9210 module supports a scanned sampling mode. This module can measure within the range of +80 mV voltage. The conversion time of the module is 70 ms/channel. The input bandwidth of the NI-9210 module is 15 Hz at -3dB. The module also removes low-frequency noise of 50/60 Hz. The minimum noise rejection of the NI-9210 module is 85 dB. The input terminals also have up to +30 V overvoltage protection.
The NI-9210 Temperature Input Module has two internal channels for measurement accuracy. These channels include an auto zero channel and a cold junction channel. The auto zero terminal is optional. The NI-9210 module has the maximum power consumption of 200 mW in active mode. In sleep mode, it reduces to 10 mW.
| Model | NI-9210 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784788-01, 785043-01 |
| Type | C Series Temperature Input Module |
| Differential Analog Input Channels | 4 |
| Maximum Sample Rate | 14 S/s |
| Front Connector | Mini-TC or Spring Terminal |
| Analog Input Isolation | 60 Vrms Ch-Earth Ground Isolation or 250 Vrms Ch-Earth Ground Isolation |
| Weight | 5.40 oz with Mini-TC; 5.71 oz. with Spring Terminal |
| Warranty | 2-3 Year Warranty |
| NI-9210 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9210:
National Instruments NI-9210 Frequently Asked Questions
Question: What is the accuracy of the NI-9210?
Answer: The accuracy of the NI-9210 is 0.8°C.
Question: What is the thermal dissipation?
Answer: The thermal dissipation for the NI-9210 is 200 mW maximum in active mode and 10 mW maximum in sleep mode.
Question: How long is the NI-9210 calibration interval?
Answer: The input module's calibration interval is 1 year.
Question: Which accessories can be utilized with the NI-9210 module?
Answer: The NI-9976 Terminal Block can be utilized with the NI-9210 module.
