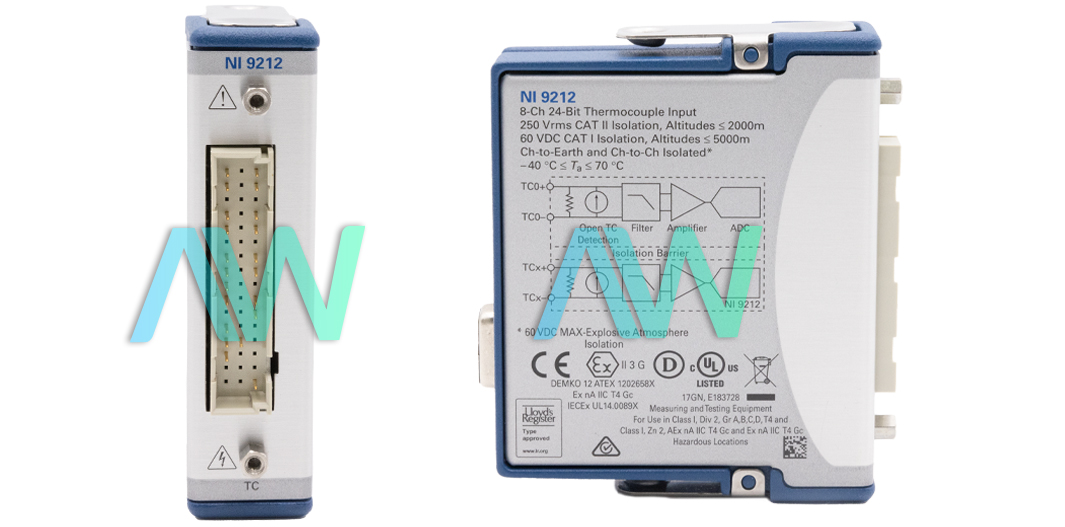

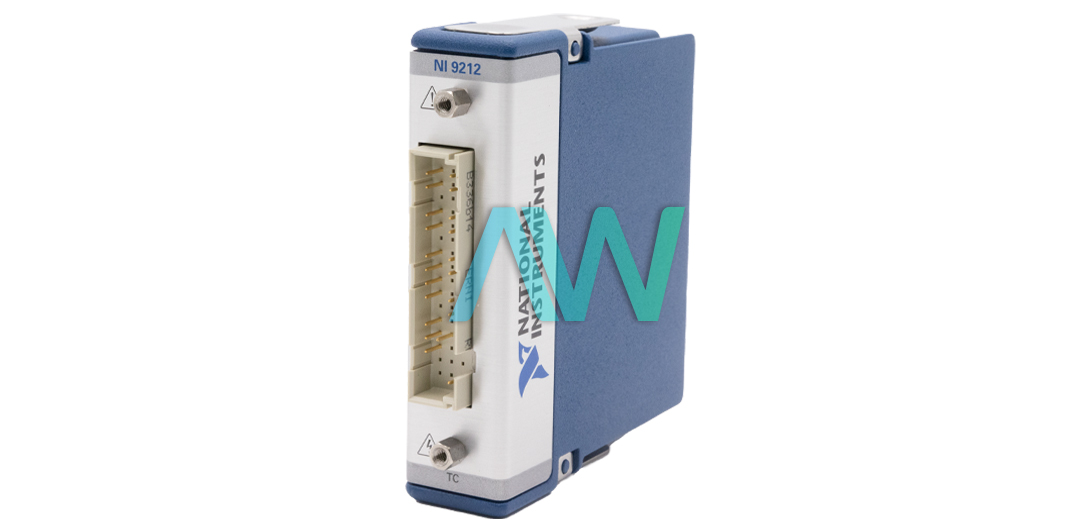

National Instruments NI-9212 C Series Temperature Input Module
The NI‑9212 is a C Series Temperature Input Module manufactured by National Instruments. There are two part numbers available for this module. Part number 785259-01 has 0.71 degrees C measurement accuracy, 60 Vrms Ch-Ch Isolation, and a mini-TC front connector. Part number 782975-01 has 0.39 degrees C measurement accuracy, 250 Vrms Ch-Ch Isolation, and a Screw Terminal front connector. This module can operate with both CompactDAQ and CompactRIO platforms. The NI 9212 is suitable in a wide range of applications, such as in-vehicle data logging, battery stack testing, and white goods testing.
The NI 9212 module has 8 isolated thermocouple channels that can generate simultaneous samples. The maximum sample rate is 95 S/s/channel. This module is hot-swappable and can operate at a maximum voltage range up to ±78.125 mV. It is operated through LabVIEW software. This software enables the NI-9212 to be used for large project development. It uses DAQ assistance and Instrument I/O assistance to produce an automatic code. LabVIEW is a helpful tool for digital signal processing and is preferable for advanced measurement analysis.
The NI-9212 Temperature Input Module is structured with an open thermocouple detection circuit. The NI-9212 has 24 bit analog to digital convertor resolution. There is a resistor in each channel. The resistor helps generate input impedance. The impedance is produced among COM and TC terminals. The NI-9212 also supports a high-speed timing mode. High speed timing mode helps reduce the power line frequencies and is used to reject noise. The timing mode also enhances the signal bandwidth and sample rate.
| Model | NI-9212 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 782975-01, 785259-01, 155814C-01L |
| Type | C Series Temperature Input Module |
| Differential Analog Input Channels | 8 |
| Maximum Sample Rate | 95 S/s per Channel |
| Front Connector | Mini-TC or Screw Terminal |
| Analog Input Isolation | 60 Vrms Ch-Ch Isolation or 250 Vrms Ch-Ch Isolation |
| Weight | 5.29 oz. |
| Warranty | Three Year Warranty |
| NI-9212 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9212:
National Instruments NI-9212 Frequently Asked Questions
Question: Which accessories can be used with the NI-9212 module?
Answer: The TB-9212 Isothermal Terminal Block and a Calibration Terminal Block can be used with the temperature input module.
Question: How long is the calibration interval of the NI-9212?
Answer: The calibration interval of the device is 1 year.
Question: What driver is used by the NI-9212 temperature input module?
Answer: The driver used by the device is NI-DAQmx, version 15.1 or later.
Question: What is the conversion time of the input module?
Answer: The conversion time of the NI-9212 is 550 ms in high-resolution mode, 140 ms in best 50 Hz rejection mode, 120 ms in best 60 Hz rejection mode, and 10.5 ms in high-speed mode.
