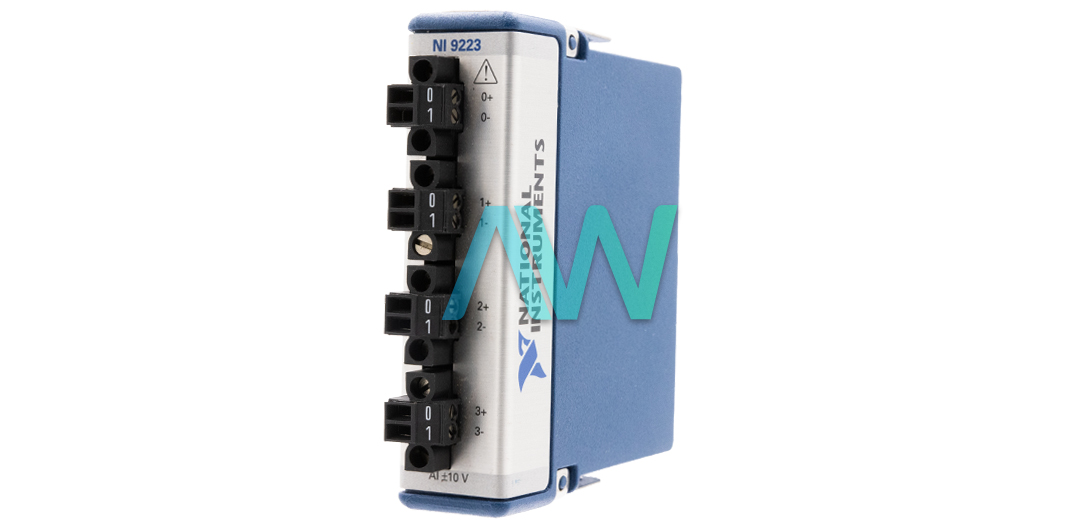

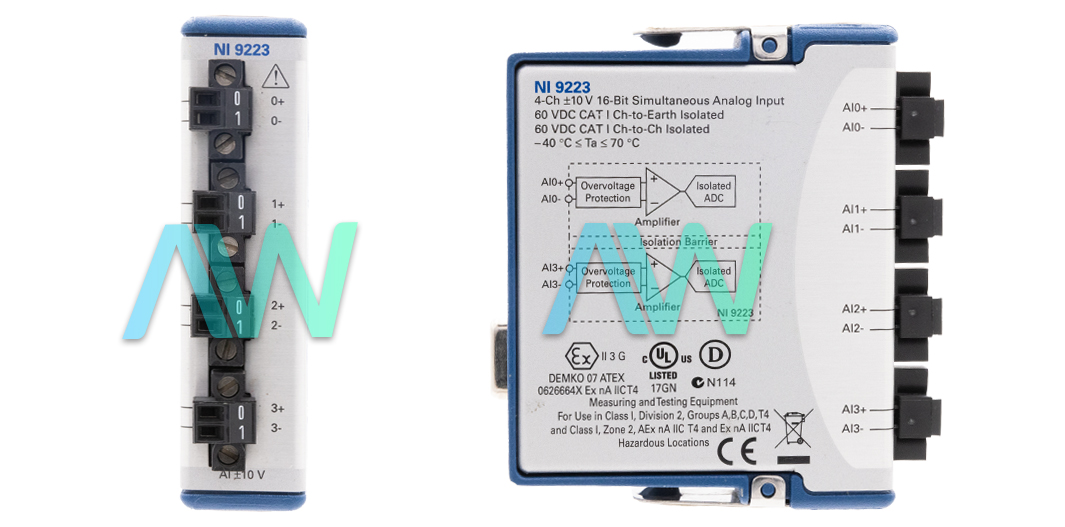

National Instruments NI-9223 C Series Voltage Input Module
The NI‑9223 (Part Numbers: 783284-01, 781398-01, 784535-01, and 784535-01) is a C Series Voltage Input Module that completes differential simple information. This module comes with ±10 V, 1 MS/s maximum sample rate, 16-Bit resolution, Simultaneous Inputs, and four channels. This module is appropriate for applications, such as ballistics, shock, and impact wave testing. The NI 9223 can test at the most extreme example rate per channel while the module beside it tests at a much slower rate, which is perfect for blended estimation test frameworks.
The NI 9223 module utilizes four 16-bit simple to-computerized converters (ACCs) for genuine concurrent testing at up to 1 MS/s per channel. The NI 9223 C Series Voltage Input Module utilizes four of the 2-position screw-terminal connectors. These modules incorporate every one of the four connectors. The user can arrange more as substitutes or for simple test hardware changes among gadgets under test.
A licensed strategy for exchanging information over PC transports, NI Signal Streaming innovation is one of the center advancements that conveys high-speed streaming information to NI C Series Modules. Despite the fact that NI Signal Streaming improves data transmission, extreme throughput contrasts between frameworks. Inward benchmarks demonstrate a USB body can stream up to 16 NI 9223 channels and an Ethernet case can stream up to six NI 9223 channels without experiencing a support flood. For NI CompactRIO equipment, the quantity of bolstered channels relies upon framework engineering and utilization of the field-programmable entryway exhibit (FPEE).
The NI 9223 is run using the NIDAQmx driver software which is compatible with software packages/application development environments such as LabVIEW, LabWindows/CVI, or Visual Basic .NET. The device can be verified using the Measurement & Automation Explorer (MAX) tool.
The screw terminal fitted model of the NI 9223 weighs 4.9 oz, while the BNC fitted model weighs more at 5.8 oz. It has a recommended operating and storage temperature ranges of -40 to 70 °C and -40 to 85 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, random and sinusoidal operating vibrations of 5 grms and 5 g–all at a frequency range of 10 to 500 Hz.
| Model | NI-9223 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783284-01, 781398-01, 784535-01, 784535-01 |
| Type | C Series Voltage Input Module |
| Differential Analog Input Channels | 4 |
| Maximum Sample Rate | 1 MS/s per channel |
| Analog Input Resolution | 16 bits |
| Front Connector | BNC, Screw Terminal, or Snap-In |
| Weight | Screw Terminal- 4.9 oz BNC- 5.8 oz. Snap-In- 5.58 oz |
| Warranty | Three Year Warranty |
| NI-9223 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9223:
National Instruments NI-9223 Frequently Asked Questions
Question: What is the input impedance of the NI-9223?
Answer: The input impedance of the Voltage Input Module is >1 GΩ.
Question: Why are the differences between the part numbers for the NI-9223?
Answer: The NI-9223 input module has three options for front panel connectors: BNC (Part number: 783284-01), Screw Terminal (Part number: 781398-01), and Snap-In (Part number: 784535-01). Part number 784535-01 is the Screw Terminal OEM (MEMSTEC only) version of the device.
Question: What is the sample rate?
Answer: The NI 9223 sample rate is 1 MS/s per channel.
Question: Is the NI-9223 an enclosed module?
Answer: Yes, both versions of the NI-9223 are enclosed.
