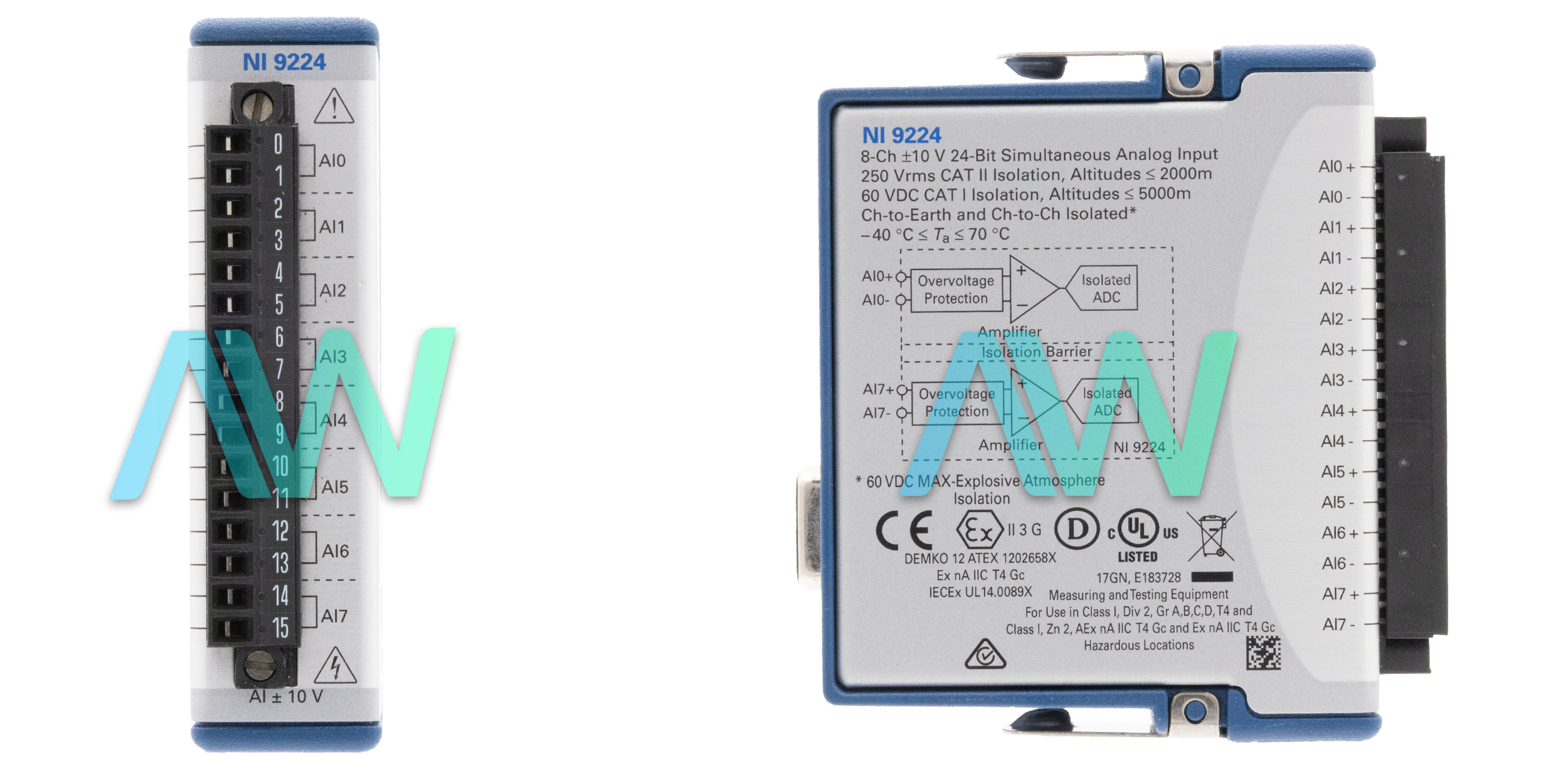

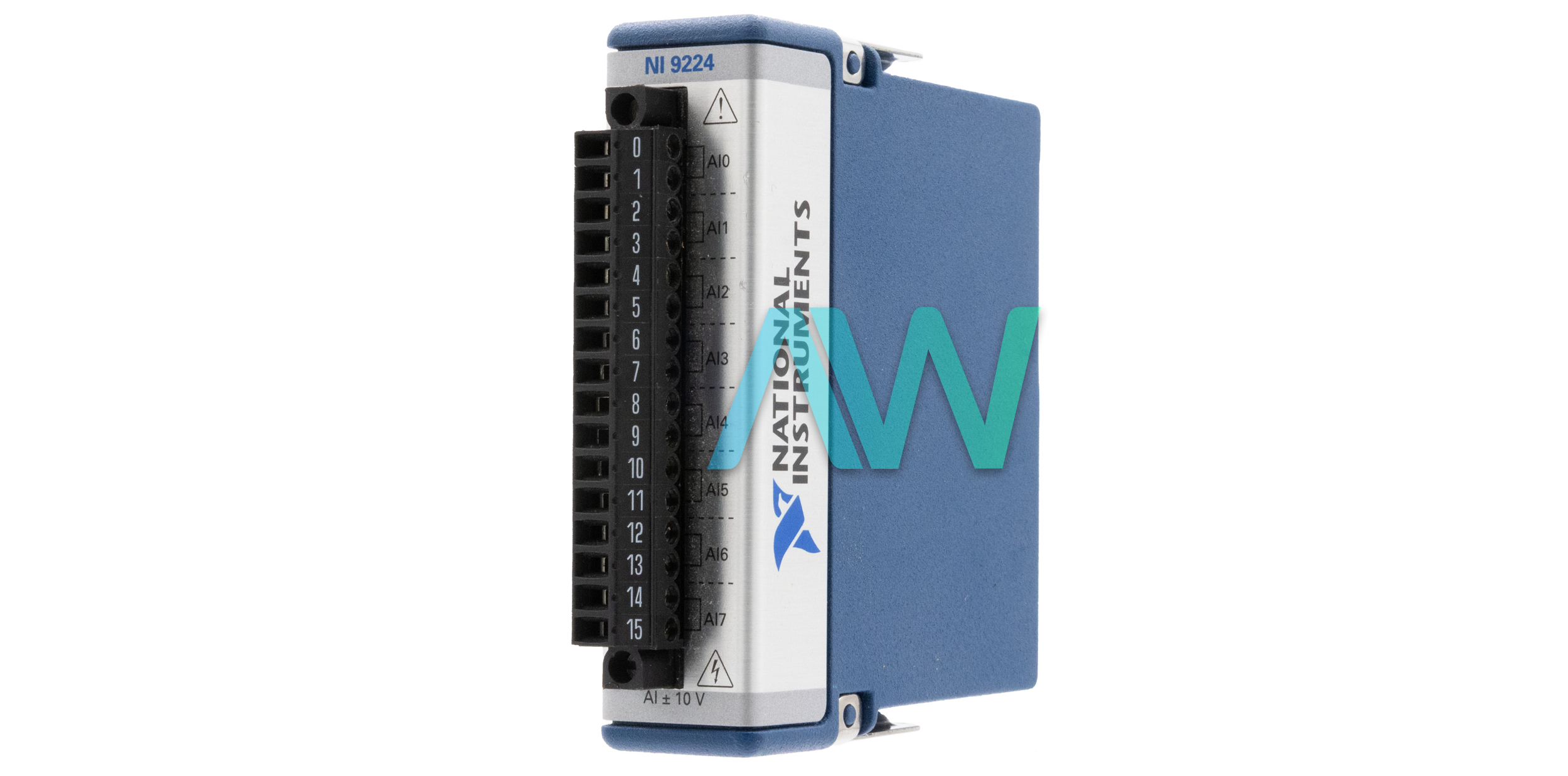

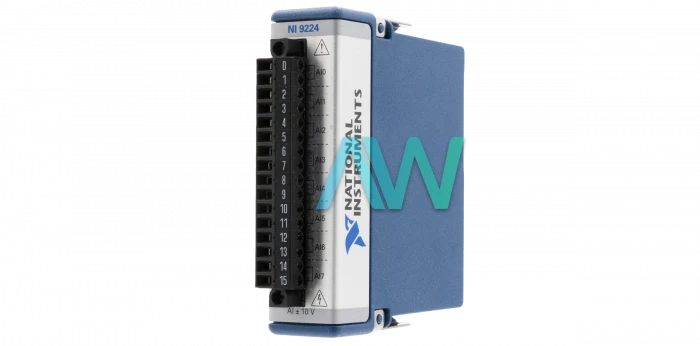

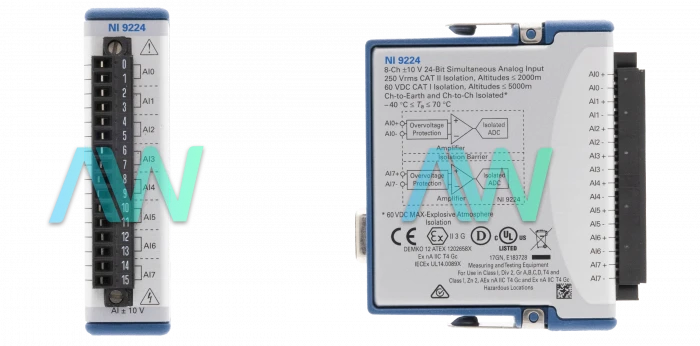

National Instruments NI-9224 C Series Voltage Input Module
The NI‑9224 (Part Numbers: 783862-01, 157994A-02L) is a C Series Voltage Input Module that performs differential simple information and comes with ±10 V input voltage range, 1 kS/s sample rate per channel, 24-Bit resolution, Simultaneous Inputs, and 8 channels. With channel‑to‑channel confinement, the whole framework, including the gadget under test, is shielded from destructive voltage shoots up to the detachment rating. The NI‑9224 module has synchronous testing with two choices for sifting: a low-idleness filter or a 50/60 Hz dismissal filter. The low-latency filter empowers clients to utilize this module in industrial or control applications, while showing signs of improvement for outer commotion dismissal.
The NI 9224 supports high determination, medium determination, rapid, and medium speed timing modes. High determination timing mode streamlines clamor and rejects control line frequencies. Medium determination timing mode has a higher sample rate when contrasted with high determination, and furthermore rejects control line frequencies. Fast planning mode improves the test rate and signal transfer speed, while medium speed timing mode brings down commotion when contrasted with rapid planning mode.
Estimation Category I is for estimations performed on circuits not specifically associated with the electrical appropriation framework alluded to as MAINS voltage. MAINS is a risky live electrical supply framework that forces hardware. This class is for estimations of voltages from exceptionally secured optional circuits.
Some characteristics of the NI‑9224 are that it takes a preferred standpoint of implicit PID control, flag preparing, and examination capacities, automatically exploits multicore CPUs or sets processors proclivity physically, takes a favorable position of ongoing OS, improvement and troubleshooting backing, and board bolster, and it can be purchased independently or as a feature of a LabVIEW suite.
| Model | NI-9224 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783862-01, 157994A-02L |
| Type | C Series Voltage Input Module |
| Differential Analog Input Channels | 8 |
| Maximum Sample Rate | 1 kS/s per channel |
| Analog Input Resolution | 24 bits |
| Front Connector | Screw Terminal |
| Weight | 5.36 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9224 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9224:
National Instruments NI-9224 Frequently Asked Questions
Question: What type of ADC does the NI 9224 have?
Answer: The NI 9224 has a Delta-Sigma ADC.
Question: Which driver should be used with the NI-9224?
Answer: The NI-9224 can be used with DAQmx 17.1 or higher.
Question: How can I verify safe operation with hazardous voltages while using the NI-9224?
Answer: To confirm safe operation with hazardous voltages, the user can utilize the NI 9939 screw terminal connector backshell kit with the 16-position screw terminal connector on the NI-9224.
Question: Does the NI 9224 have overvoltage protection?
Answer: Yes, the NI 9224 has overvoltage protection for every channel.
