National Instruments NI-9265 C Series Current Output Module
The National Instruments NI-9265 (Part Numbers: 783733-01, 779334-01, 779334-02) is a 4-Channel, 16-Bit, 0 mA to 20 mA range Current Output Module. This model offers 100 kS/s per channel, simultaneous analog output on all four channels and is compatible with any CompactRIO or CompactDAQ chassis. The NI-9265 is a suitable choice for interfacing and modulating or controlling industrial grade, current-driven actuators at high-rates. This device comes with integrated open-loop detection, which generates a software interrupt whenever an open loop is detected. Moreover, to ensure safety and avoid actuators activity at system power-on, the NI-9265 restricts outputs.
For better noise immunity performance, the NI 9265 module includes a channel-to-earth ground barrier as well. Each channel has a 16-bit, String type Digital-to-Analog Converter (DAC) that generates a current signal. This Current Output Module is designed to offer up to 600 Ω load, maximum. With this module, users can utilize a 9 VDC to 36 VDC external power supply. The National Instruments NI-9265 features protection against overvoltage and short-circuit on its channels. In its default configuration, the overvoltage protection setting is ±40 V.

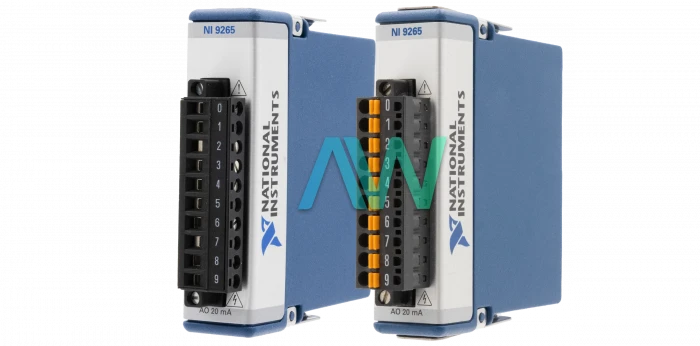

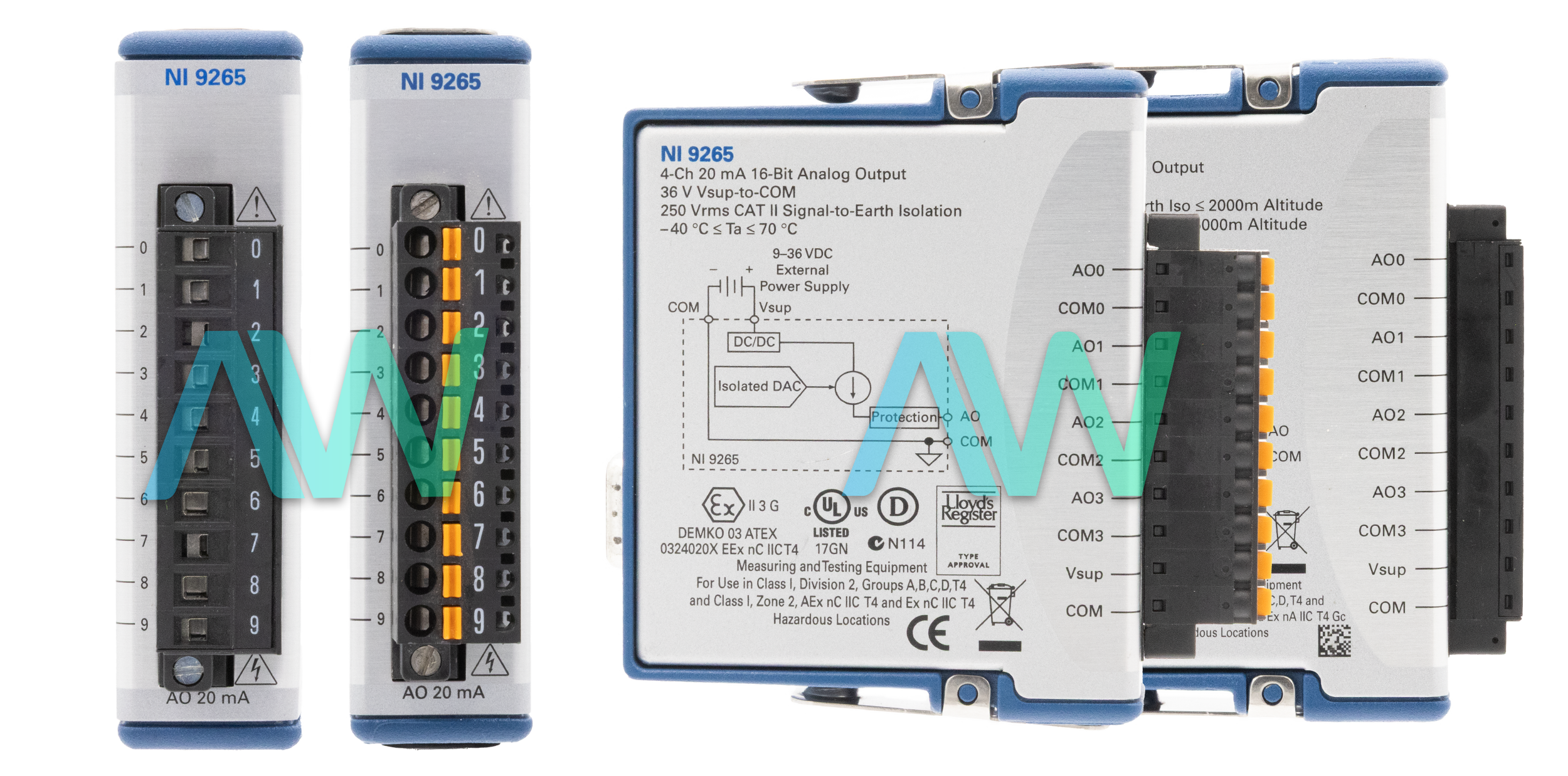

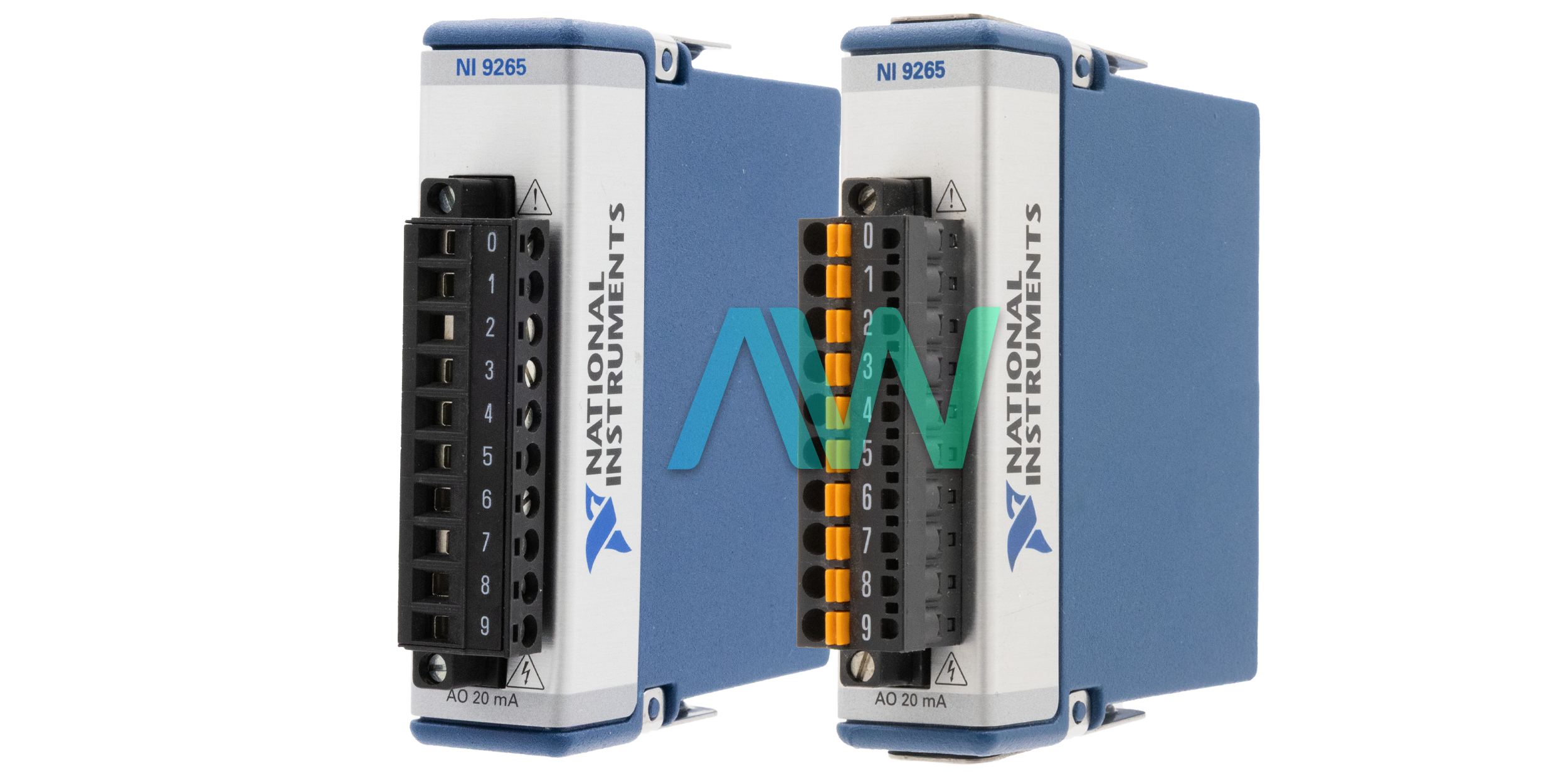

While operating with four channels, this Current Output Module can operate with 12 μs update rate in an R Series Expansion Chassis and 9.5 μs when used in any other chassis. The NI-9265 is available in three variations, based on the type of connection. It is available with non-conformal coated Screw Terminals (Part Number: 779334-01), Spring Terminals (Part Number: 783733-01), and Conformal Coated Screw Terminals (Part Number: 783733-01). The conformal coated version is an ideal solution for applications in a moisture rich environment.
The NI-9265 is run using the NIDAQmx driver software which is compatible with software packages/application development environments (ADEs) like LabVIEW, LabWindows/CVI, or ANSI C.
The screw terminal version of the NI device weighs 5.8 oz (165 g), while the spring terminal version weighs in at 5.4 oz (153 g). It has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, an operating and storage humidity range of 10% RH to 90% RH and 5% RH to 95% RH, and a random and sinusoidal operating vibration of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz.
| Model | NI-9265 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783733-01, 779334-01, 779334-02 |
| Type | Current Output Module |
| Analog Output Channels | 4 |
| Maximum Update Rate | 100 kS/s per Channel |
| Analog Output Resolution | 16 Bits |
| Front Connector | Screw Terminal or Spring Terminal |
| Output Current Range | 0 mA to 20 mA |
| Supported Hardware Platform | C Series |
| Enclosed? | Yes |
| Operating Temp Range | -40 °C to 70 °C |
| Storage Temp Range | -40 °C to 85 °C |
| Weight | Screw Terminal: 5.8 oz (165 g) Spring Terminal: 5.4 oz (153 g) |
| Warranty | Three Year Warranty |
| NI-9265 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing |
Associated part numbers for NI-9265:
National Instruments NI-9265 Frequently Asked Questions
Question: Are any accessories necessary to operate the NI-9265?
Answer: The Output Module needs the NI-9927 Screw Terminal Strain Relief and Operator Protection to operate.
Question: Which driver is required for the calibration capabilities of the NI-9265?
Answer: NI-DAQmx 9.6 or later is required on the calibration system for the NI-9265.
Question: Which type of DAC does the Current Output Module have?
Answer: The NI-9265 module has a string DAC.
Question: What is the wiring gauge of the NI-9265?
Answer: Both the screw terminal and spring terminal versions of the module have a wiring gauge of 26 AWG to 14 AWG (0.2 mm^2 to 2.5 mm^2)
