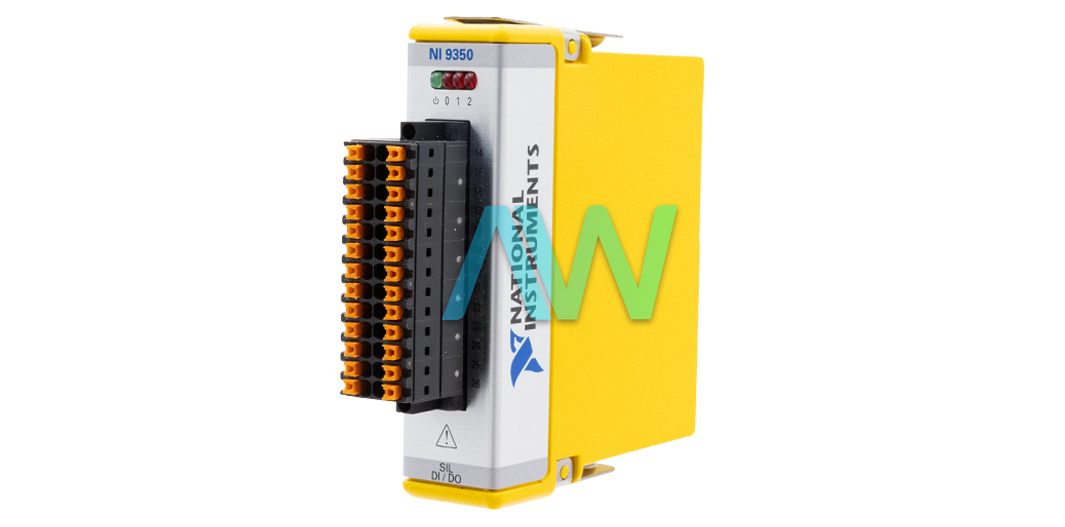

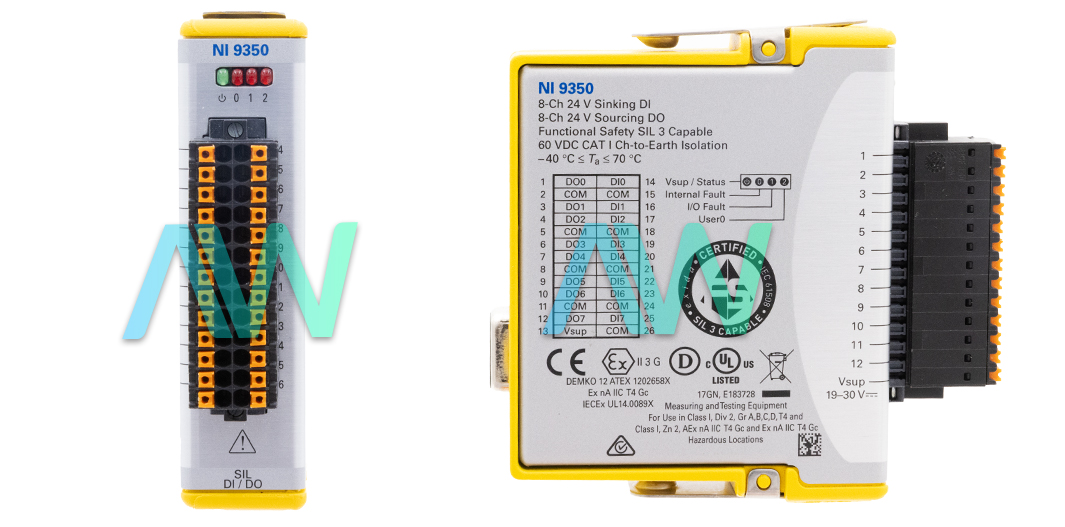

National Instruments NI-9350 C Series Functional Safety Module
The National Instruments NI-9350 (Part Number: 784445-01) is an 8-Channel, Functional Safety Module designed to work with 24 V industrial logic levels. This model offers direct connectivity to various types of sensors, including emergency e-stop buttons and light curtains. In addition, the NI 9350 can be used with final control elements such as contactors, motor drivers, and relays.
This Functional Safety Module is capable of SIL 3 certification as defined by IEC 61508. Users can easily program the internal safety logic solver incorporated in this module with the help of Functional Safety Editor software. The National Instruments NI-9350 module comes featured with user-programmable and automatic self-diagnostics for monitoring the integrity of the connections and the status of hardware.
The NI-9350 module uses a 4 V digital signal to actuate safety devices. This Functional Safety Module comes with 8 digital input channels which receive 0 V to 30 V sinking inputs, as well as 8 digital output channels to generate sourcing type outputs. This device offers 60 V DC, continuous channel-to-earth isolation and is tested to provide 1,000 VRMS withstand isolation voltage.
The NI-9350 comes equipped with an integrated input power protection mechanism that turns off the device and all channels if the supply voltages fall beyond the rated voltage input range. At no DO load, this module draws 1.05 Watts of power (max), and at full DO load, it consumes 61.6 Watts of power. The module offers 250 mA maximum continuous output current on each of its channels.
| Model | NI-9350 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 784445-01 |
| Type | C Series Functional Safety Module |
| Digital Input Channels | 8 |
| Digital Output Channels | 8 |
| Safety Response Time | <250 us |
| Front Connector | Spring Terminal |
| Weight | 7.4 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9350 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9350:
National Instruments NI-9350 Frequently Asked Questions
Question: Which accessories are suggested for use with the NI-9350?
Answer: The NI-9350 can be used with the PS-14 Power Supply and 3 kΩ external pull-down resistors.
Question: Which operating systems are compatible with the Functional Safety Editor?
Answer: The Functional Safety Editor for the NI-9350 is compatible with Windows 8.1 or later, and the 64-bit version of Windows 7. It is not compatible with 32-bit Windows.
Question: What is the input voltage range of the NI 9350 module?
Answer: The input voltage ranges from 0 V to 30 V.
Question: What is the safety response time of the Functional Safety Module?
Answer: The safety response time of the NI-9350 is 250 μs max.
