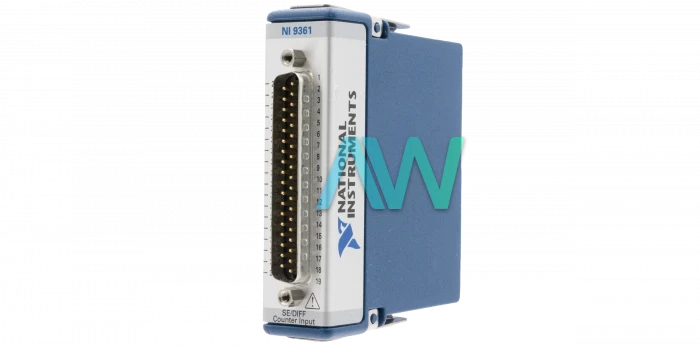

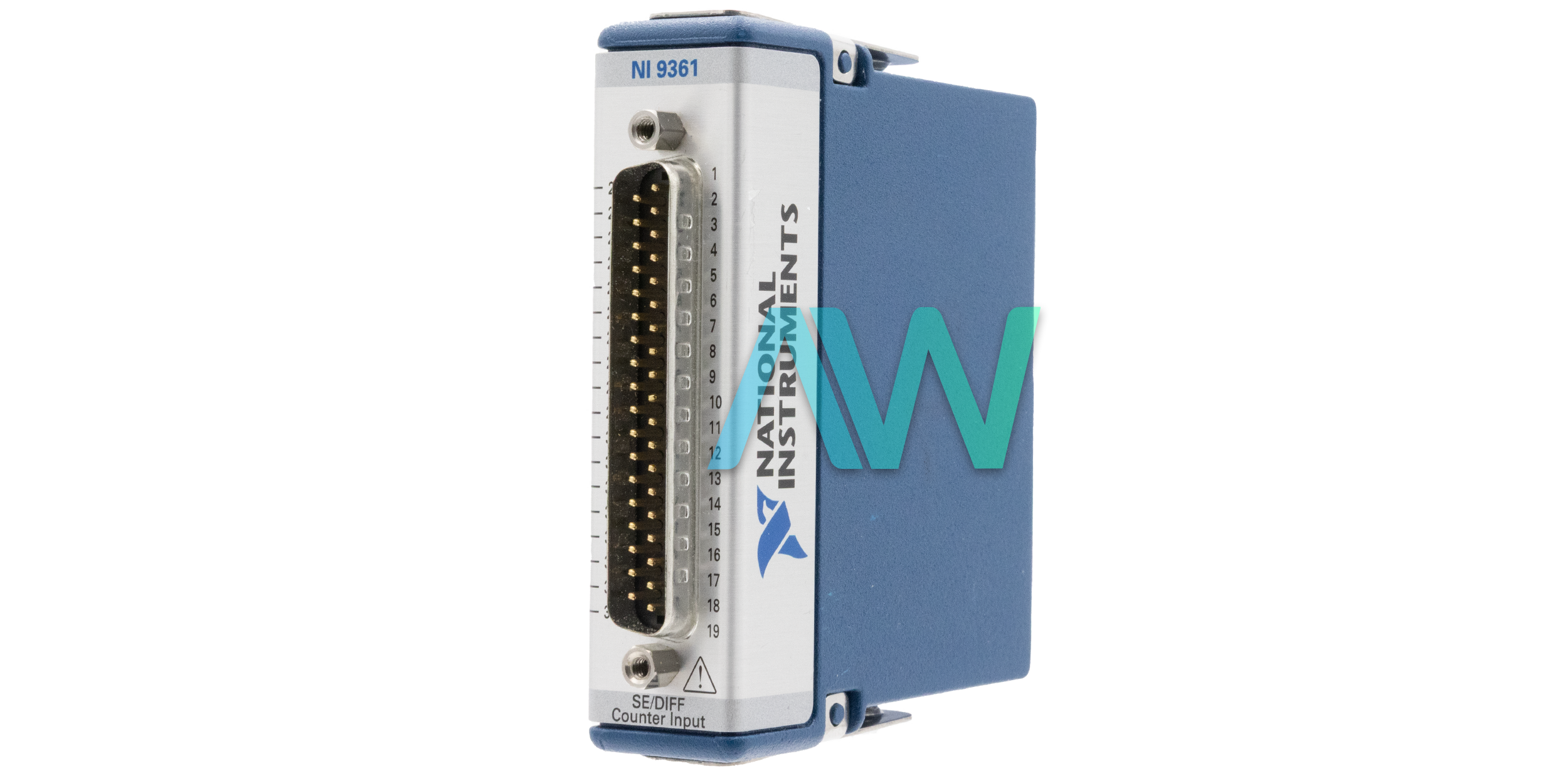

National Instruments NI-9361 C Series Counter Input Module
The NI 9361 (Part Number: 783407-01) is a C Series Counter Input Module that includes a CompactDAQ function, which makes it possible to have 64 counters for every 8 slots. In addition, users have the possibility to arrange each channel to examine a solitary vibration train or put them together to analyze more than four incremental encoders. Encoder position and speed estimations are a few of the characteristics the NI-9361 module can perform.
The NI 9361 counters have 32-bit resolution and are equipped for standard counter estimations, such as edge checking, beat width, period, and frequency estimation and encoder position and speed estimations. Because of the NI 9361 counters, it is possible to synchronize with simple, advanced, and other counter estimations in a framework.
The NI 9361 counters can provide upgraded frequency and obligation cycle (PWM) estimations. The NI-9361 C Series Counter Input Module offers links for 8 digital input channels for the embedded counters. The data channels are intended for association with encoders, corridor impact sensors, and numerous different kinds of sensors with advanced yields. The counters have encoder support for quadrature encoding, incremental encoders with two-pulse, and optional Z index reloading. The encoder measurements available are position and velocity. However, velocity is solely supported for CompactRIO systems.
It is possible to arrange the front end of each channel exclusively to work in differential or single-ended mode. In single-ended mode, users can arrange a programmable voltage edge level and empower or incapacitate an interior draw up resistor.
| Model | NI-9361 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783407-01 |
| Type | C Series Counter Input Module |
| Counter Input Channels | 8 |
| Front Connector | D-Sub |
| Resolution | 32 bits |
| Maximum Input Rate | 1 MHz |
| Weight | 5.15 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9361 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9361:
National Instruments NI-9361 Frequently Asked Questions
Question: Which accessory is suggested for use with the NI-9361?
Answer: The NI-9361 can be used with the NI-9923 37-Pin DSUB to Screw-Terminal Connector Block.
Question: Which driver is required to calibrate the NI-9361?
Answer: NI-DAQmx 14.5 or later is required on the calibration system to calibrate the NI-9361.
Question: What models are needed to calibrate the NI-9361?
Answer: To calibrate the NI-9361, the user needs the NI-9923 Connection Accessory, the cDAQ-9178 Chassis, and a frequency standard such as the Keysight 33250A, NI PXIe-6674T, or NI PXIe-6614.
Question: What is the maximum input current for the NI-9361?
Answer: The maximum input current is 50 µA maximum per input terminal with 5 V input (DI+ or DI-) and 1.5 mA maximum per input terminal with 24 V input (DI+).
