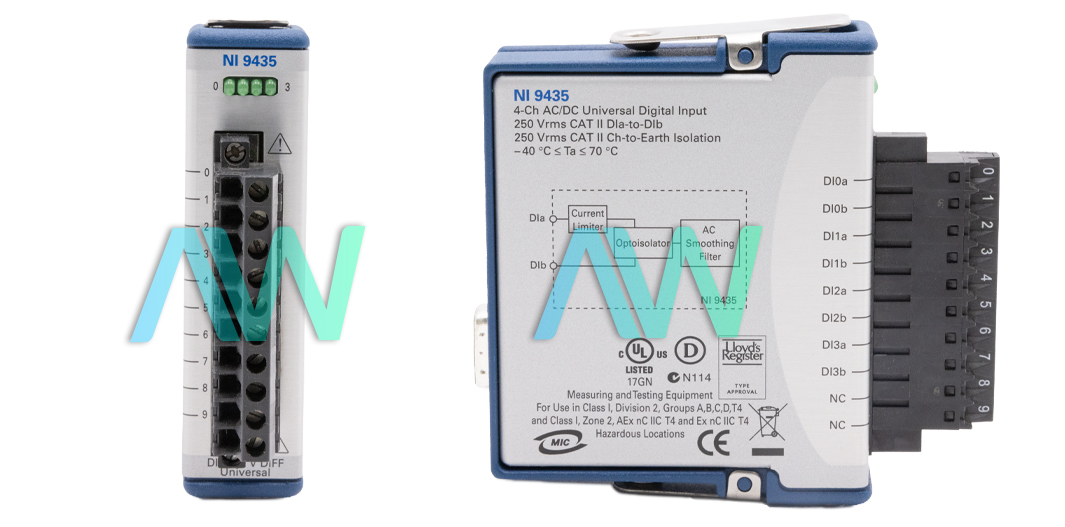

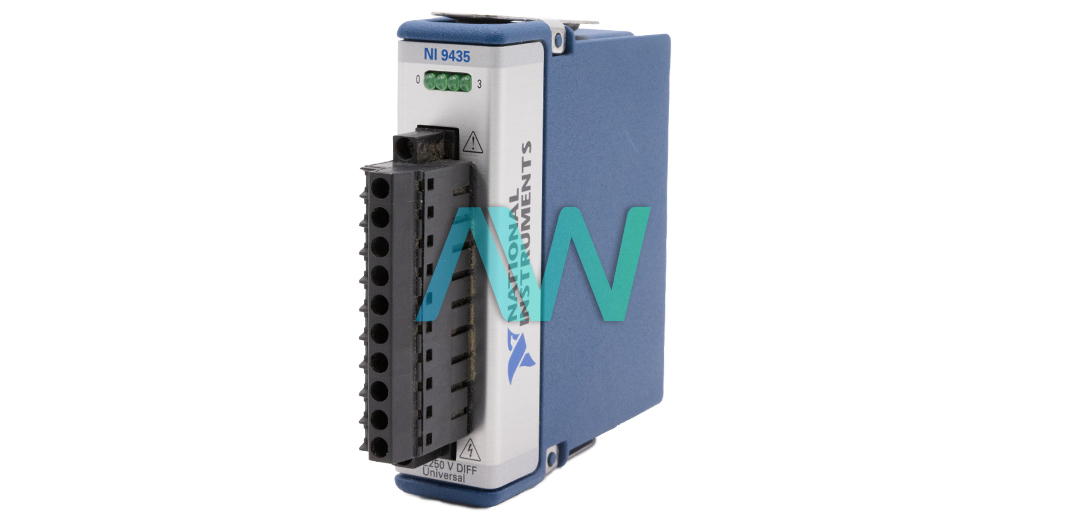

National Instruments NI-9435 C Series Digital Module
The NI-9435 (Part numbers: 779010-01, 189128H-01L) is a 4 Digital Input Channel Universal C Series Digital Module that can be installed in a CompactDAQ or CompactRIO chassis. This device has the capacity to create a direct connection with a broad range of industry-grade transducers, switches, and devices with its broad digital I/O logic levels.
The NI-9435 Digital Module has 10-terminal Screw Terminal front connectors, a maximum update rate of 3 ms, Sinking/Sourcing Inputs, 250 Vrms continuous Channel-to-Earth ground isolation, and does not have channel-to-channel isolation. Each of the 4 channels of this module can accept signals from ±5–250 VDC and from 10–250 VAC. Each channel of this module also has transitory voltage overload protection and a Liquid Electronic Display that allows the user to read the status of the channel.
The NI 9435 operates on Real-Time OS and Windows, and has software compatibility with LabVIEW, LabWindows/CVI, SignalExpress, Visual Studio, and Visual Studio .NET. LabVIEW Professional for Windows is ideal for advanced measurement analysis and signal processing, and compact integration with a broad variety of NI hardware. The NI LabWindows™/CVI for Windows offers basic cross-platform communication with network variables and complete compatibility with IVI, VISA, DAQ, GPIB, and serial. With the NI LabVIEW Real-Time, the user can take advantage of graphical programming to design deterministic real time applications. The device consumes up to 105 mW of power when active, and 1.3 mW maximum when in sleep mode.
It is important to note that the NI 9435 module cannot be connected to signals or operated with measurements within Measurement Categories III or IV. The NI device weighs 5.3 oz (150 g). It has recommended operating and storage temperature ranges of –40 to 70 °C and –40 to 85 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 5 to 500 Hz. The digital module is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1.
| Model | NI-9435 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779010-01, 189128H-01L |
| Type | C Series Digital Module |
| Digital Input Channels | 4 |
| Digital I/O Isolation | 250 Vrms Ch-Earth Ground Isolation |
| Maximum Update Rate | 3 ms |
| Front Connector | Screw Terminal |
| Weight | 5.3 oz. |
| Warranty | Three Year Warranty |
| NI-9435 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9435:
National Instruments NI-9435 Frequently Asked Questions
Question: Which type of front connector does the NI 9435 module have?
Answer: The NI 9435 module has a 10-terminal, detachable screw-terminal connector.
Question: Does the NI-9435 have a sleep mode available?
Answer: Yes, the NI-9435 has a low-power sleep mode available, but it is dependent on the chassis the module is being used with.
Question: Which types of inputs does the NI 9435 have?
Answer: The NI 9435 has sinking or sourcing inputs.
Question: What is the channel-to-channel isolation for the NI-9435?
Answer: The NI-9435 does not have channel-to-channel isolation.
