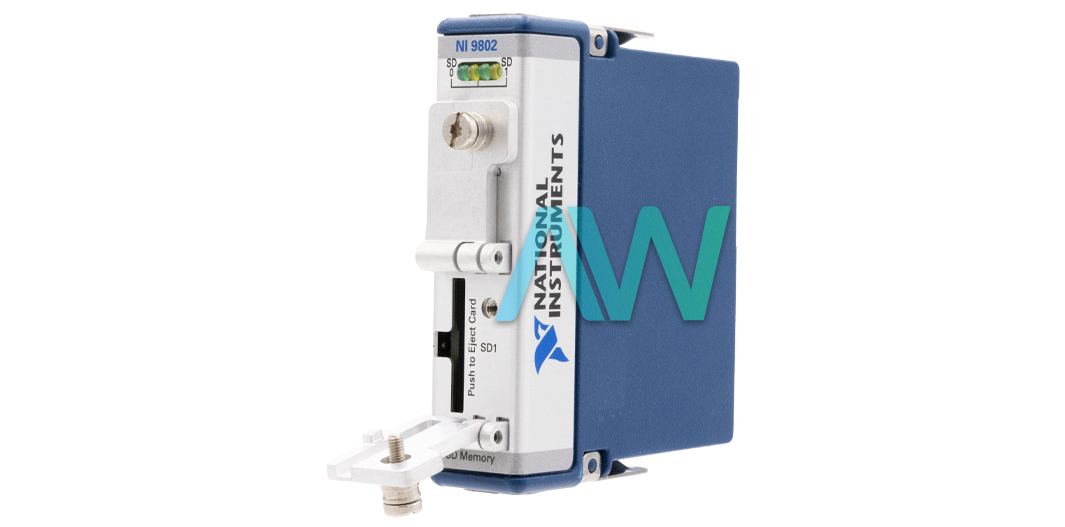

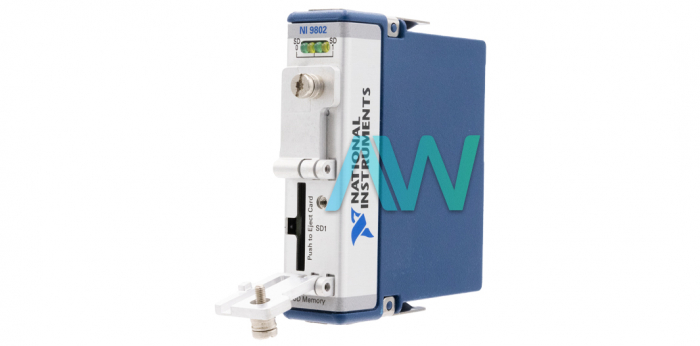

National Instruments NI-9802 Secure Digital Removable Storage Module
The NI-9802 (Part numbers: 779941-01, 779941-02, 196320A-01) is an efficient SD Storage Module from the C Series by National Instruments. The module is removable and come with the capability to read to and write from SD cards. There are two standard SD Card slots. The card slot also incorporates a protective door. A solid-state and nonvolatile data storage feature enables the user to expand the storage capabilities for the CompactRIO data-logging applications. The NI-9802 SD Removable Storage Module also offers a constant Write/Read speed of 2 MB per second for a single SD card at a time. The NI-9802 Module offers a maximum 2 GB of storage capacity for each SD card. The maximum power consumption of the instrument from chassis is 400 mW in active mode and 5 mW in sleep mode. The Secure Digital Storage Module also has a minimal weight of 147 grams.

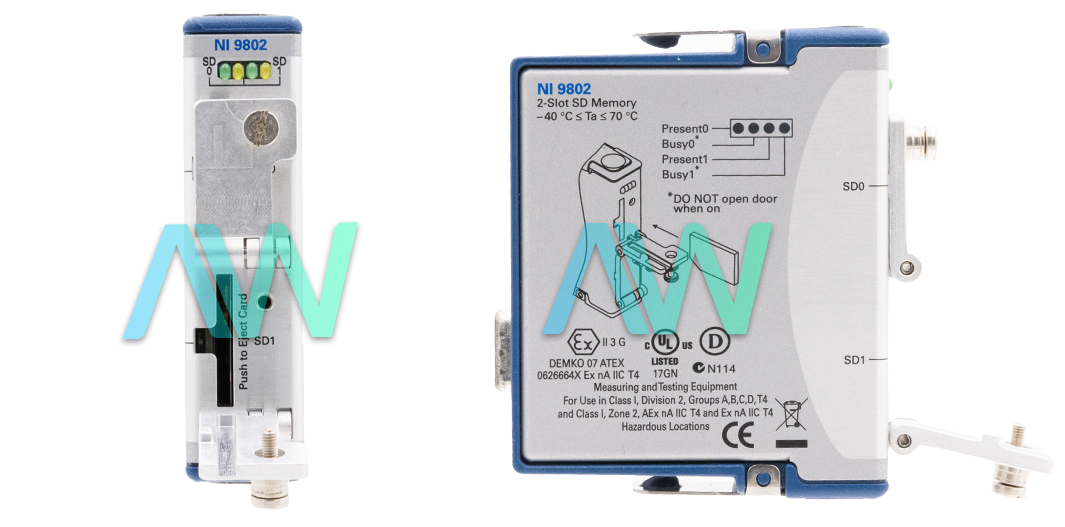

The NI-9802 SD secure removable storage module comes with an open media bay detection. This function enables and ensures the data protection and integrity. The instrument incorporates various indicators and interfaces on the front panel, which includes four LEDs, card slot doors, and card slots. The LEDs blink with different colors to indicate the different operating modes of the module. The instrument also has a built-in mechanism to enable the FPGA target clock. It supports this clock setting up to 40 MHz. The NI-9802 SD Removable Storage Module also supports the sleep mode. The module cannot communicate in this mode and consumes a small amount of power.
| Model | NI-9802 |
|---|---|
| Manufacturer | National Instruments |
| Series | C Series |
| Part Numbers | 779941-01, 779941-02, 196320A-01 |
| Type | Secure Digital Removable Storage Module |
| SD Cards | 2 |
| Storage | 2 GB max storage for each SD Card |
| Data Transfer | 2 MB/s read/write for one SD Card at a time |
| Weight | 5.2 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9802 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9802:
National Instruments NI-9802 Frequently Asked Questions
Question: What type of data protection does the NI-980 offer?
Answer: The NI-9802 offers open media bay detection for data protection.
Question: Is the NI-9802 compatible with CompactRIO chassis?
Answer: The NI-9802 is supported only in CompactRIO reconfigurable chassis and Single-Board RIO devices.
Question: Can the NI-9802 read SD cards?
Answer: The NI-9802 is an SD Card storage module that can read from and write to SD Cards.
Question: How many SD card slots does the NI 9802 have available?
Answer: The NI 9802 has two SD Card slots.
