777318-111 Request for Availability

777318-111, 16 Channels, 16 Bits, 4.8 oz., cFP-AI-111 Analog Input Module for Compact FieldPoint

Rated 4.5/5 | 20 ratings

NI 777318-111 Analog Input Module for Compact FieldPoint | Apex Waves | Image
NI 777318-111 Analog Input Module for Compact FieldPoint | Apex Waves | Image
777318-111 New
777318-111 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

NI 777318-111 Analog Input Module for Compact FieldPoint | Apex Waves | Image
NI 777318-111 Analog Input Module for Compact FieldPoint | Apex Waves | Image
777318-111 New
777318-111 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

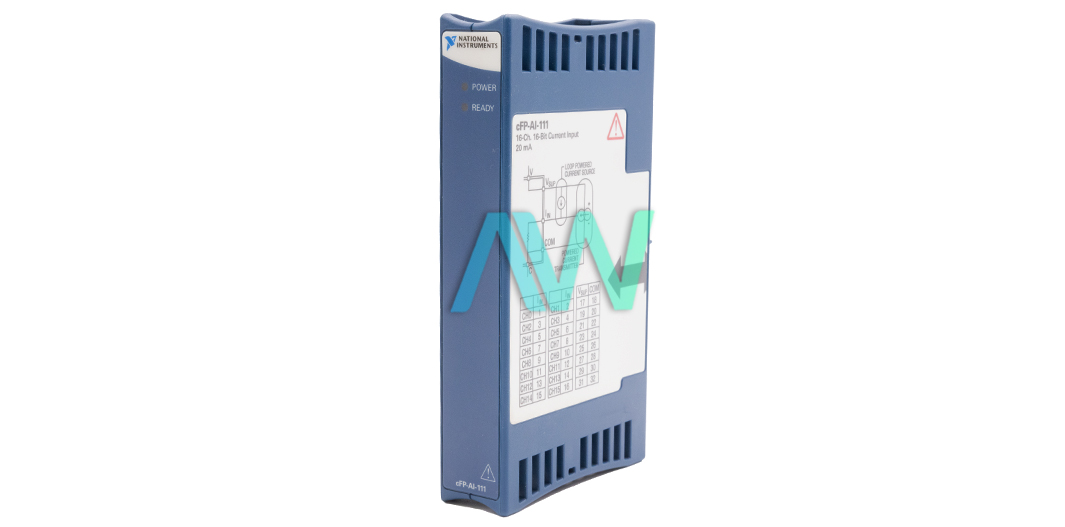

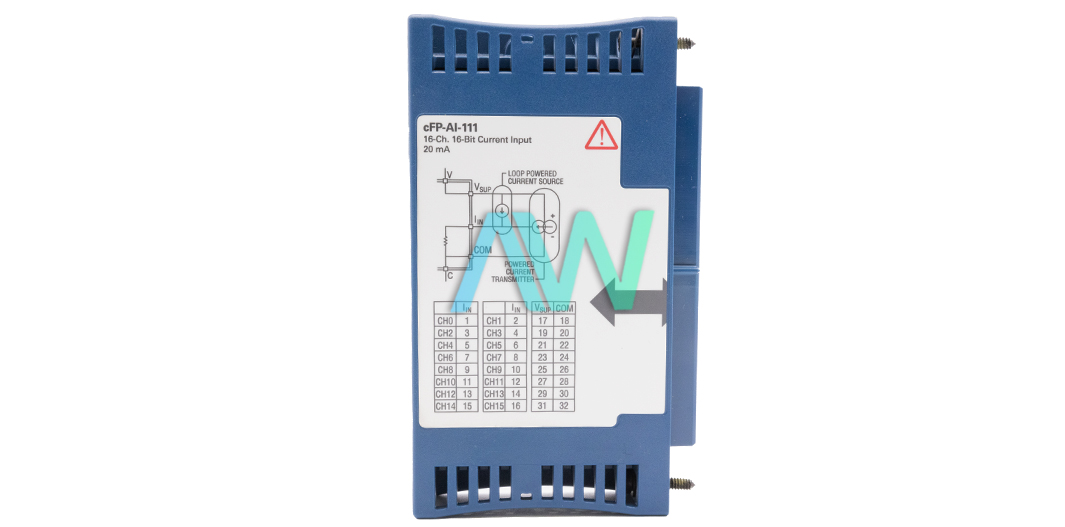

National Instruments 777318-111 Analog Input Module for Compact FieldPoint

National Instruments part number 777318-111 is an identifying part number for the cFP-AI-111, an Analog Input Module for Compact FieldPoint with 16 channels all with the update rate range from 3 Hz to 0.83 Hz. The channels on this model are single-ended analog input channels with an input impedance of 100 Ω. It offers three filter settings (50 Hz, 60 Hz, and 500 Hz) and three input ranges (±20 mA, 4 mA to 20 mA, and 0 mA to 20 mA). The device features an update rate ranging from 3 Hz to 0.83 Hz. The NI cFP-AI-111 provides integrated overvoltage protection for transients up to 2,300 Vrms.

This Analog Input Module can be installed on a live and powered Compact FieldPoint backplane without disrupting the ongoing operations of the system. The 16 input channels on the 777318-111 share a common, isolated ground reference and feature integrated overcurrent protection set at ±30 mA. For current measurements, the current entering the Iin terminal is considered positive, while the current leaving the terminal (Iin) is read as negative. The module includes an over-ranging feature, allowing the device to measure up to 5% beyond each nominal range. For example, with the ±20 mA range selected, the module can measure up to ±21 mA.

The module also includes comb filters with three settings per channel. These filters provide notches of rejection at the harmonics or multiples of any fundamental frequency, offering 95 dB of rejection at the fundamental frequency and at least 60 dB of rejection at its harmonics. This device weighs 4.8 ounces and has physical dimensions of 4.3 x 4.3 x 3.6 inches. It operates effectively within a temperature range of –40 to 70 °C and can be stored in temperatures ranging from –55 to 85 °C. The device supports a non-condensing humidity range of 10 to 90% RH.

It is designed to withstand vibrations, with an operational random vibration rating of 5 grms and a sinusoidal vibration rating of 5 g, both within the frequency range of 10 to 500 Hz. National Instruments has declared obsolete status for the 777318-111 but it is still available for purchase at Apex Waves website.

Part Number777318-111
Model RangecFP-AI-111
Part TypeAnalog Input Module for Compact FieldPoint
Input Channels16
Resolution16 bits
Input TypeCurrent
Input Ranges0 to 20 mA, 4 to 20 mA, ±20 mA
50/60 Hz Noise FilterSoftware selectable
All channel Update Rate3 Hz to 0.83 Hz
Weight4.8 oz.
