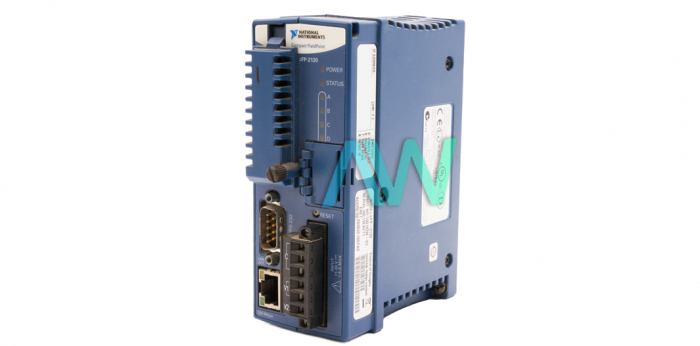

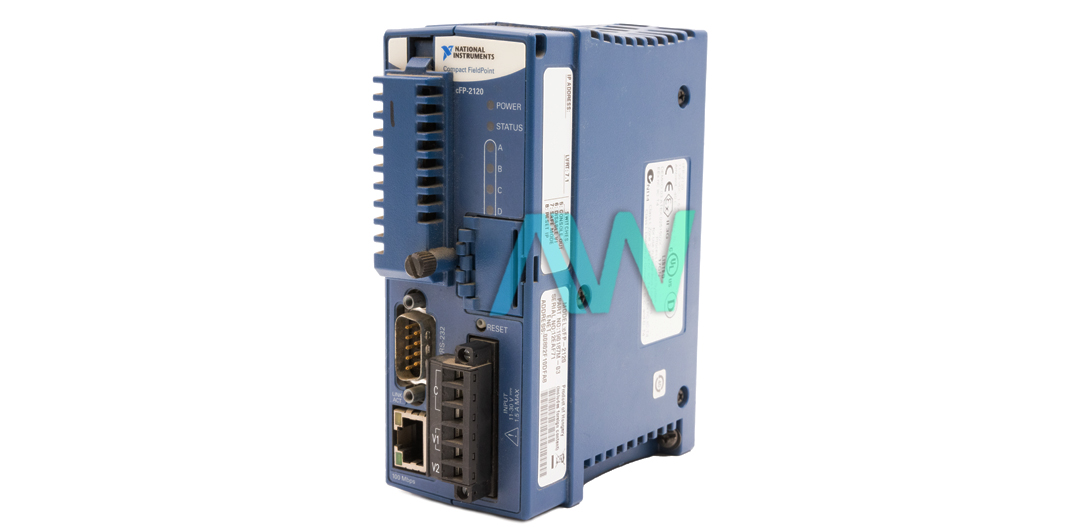

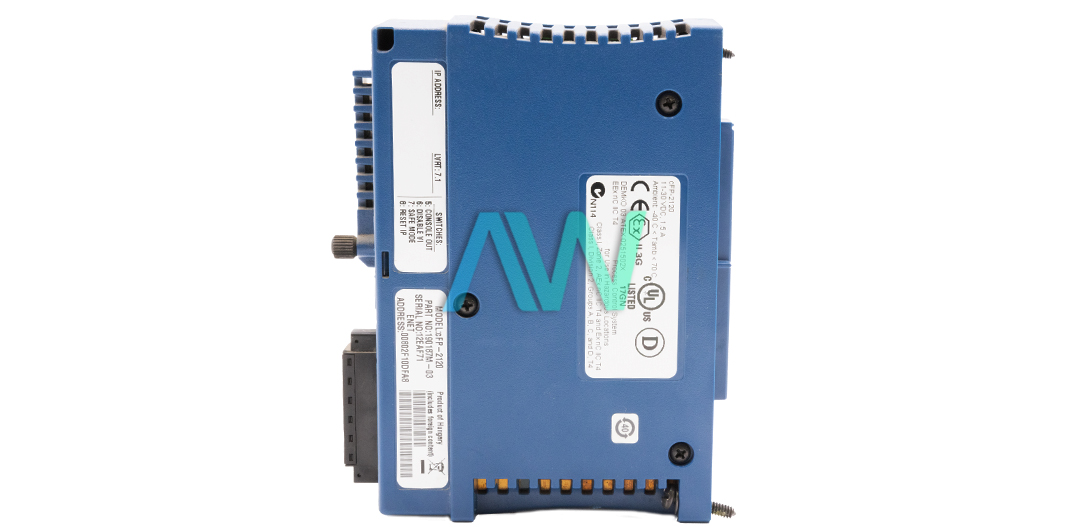

National Instruments cFP-2120 Compact FieldPoint LabVIEW Real-Time/Ethernet Network Controller
The cFP-2120 (Part number: 777317-2120) is an efficient Compact FieldPoint LabVIEW Controller from National Instruments. This model links straight to a 10 or 100 Mbps Ethernet network, then automatically detects the speed of the link and arranges itself to fit the speed. The National Instruments cFP 2120 FieldPoint Controller can be used with mounting hardware, such as a panel-mount or rack mount accessories. This model has built-in non-volatile memory, with the storage capacity of 128 MB. The instrument also incorporates 128 MB of dynamic RAM, and a Baud rate of 110 to 115,200 b/s. The memory life is 300,000 writes per sector. This model permits the user to complete various measurement capabilities and meet high-performance standards of the industry.
The NI cFP-2120 Compact FieldPoint Controller supports advanced networking capabilities, with an Ethernet port, three RS-232 serial ports, and 1 RS-485 serial port. This model also enables the user to control a PC based I/O distributed system. The serial ports enable connection capabilities with other peripherals. This model has an embedded web and file server portal, along with a remote panel user interface to enhance the operational flexibilities of the device. The user can perform real-time data measurements, analysis, and simulations with this durable model, which can withstand tough industrial requirements.
The NI device is run using the Fieldpoint software which includes components like LabVIEW Vis, LabWindows/CVI Functions, OPC server, and so on.
The NI cFP-2120 Compact FieldPoint LabVIEW Real-Time/Ethernet Network Controller is a small instrument, which weighs around 278 grams. Therefore, the instrument is easily portable. The baud rate of the cFP-2120 is 200 bps. The instrument additionally has the capability to isolate voltage of RMS value 100 volts. The cFP 2120 has LED indicators, which indicate status data and DIP switches that complete a variety of tasks. The NI cFP-2120 Compact FieldPoint Controller also has a dielectric withstand capability up to the RMS voltage level of 740 volts continuously for one minute.
The NI device weighs 9.8 oz. Depending on the orientation, it has a recommended operating temperature range of –40 to 60 °C or –40 to 70 °C.
| Model | cFP-2120 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2120 |
| Type | Compact FieldPoint LabVIEW Real-Time/Ethernet Controller |
| Ethernet Ports | 1 |
| SDRAM Memory | 128 MB |
| Internal Nonvolatile Storage | 128 MB |
| Baud Rate | 110 to 115,200 b/s |
| Network Interface | 10BaseT and 100BaseTX Ethernet |
| Max Cabling Distance | 100 m/Segment |
| Power Supply | 11–30 VDC |
| Screw-Terminal Wiring | 16–26 AWG |
| Operating Temp Range | –40 to 70 °C |
| Storage Temp Range | –55 to 85 °C |
| Weight | 9.8 oz. |
| Warranty | Three Year Warranty |
| cFP-2120 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cFP-2120:
National Instruments cFP-2120 Frequently Asked Questions
Question: Which optional accessories can be used with the cFP-2120?
Answer: The optional accessories that can be used with the cFP-2120 are DIN-rail terminal blocks, serial cables, and 37-pin I/O cables.
Question: What is the power supply range for the NI cFP-2120?
Answer: The power supply range for the controller is 11 to 30 VDC.
Question: Which type of screw terminal wiring should be used with the cFP-2120?
Answer: 16–26 AWG copper conductor wire with 0.28 in. of insulation stripped from the end should be used.
Question: What is the network compatibility for the Ethernet Controller?
Answer: The NI cFP-2120 network is compatible with IEEE802.3.
