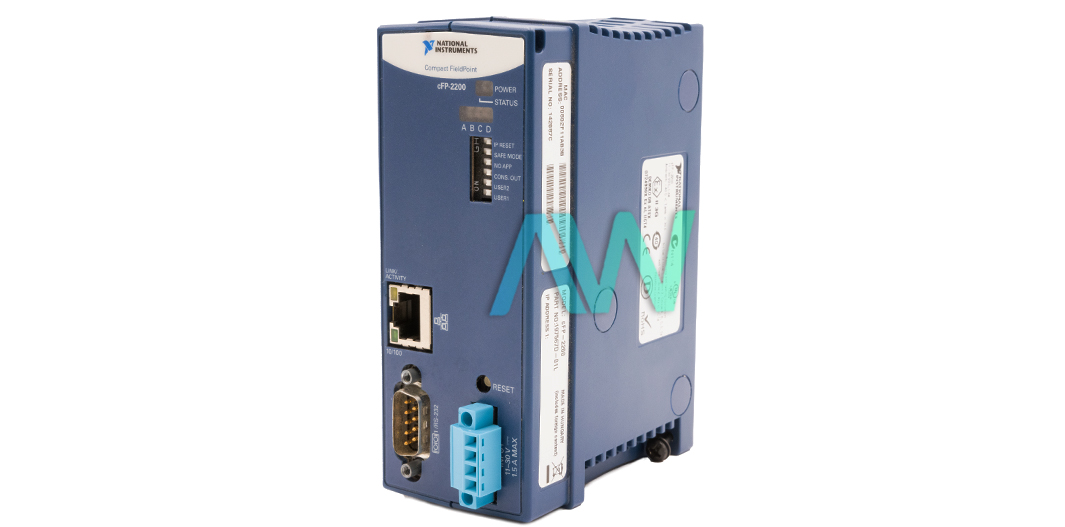

cFP-2200 National Instruments Controller for Compact FieldPoint | Apex Waves | Image

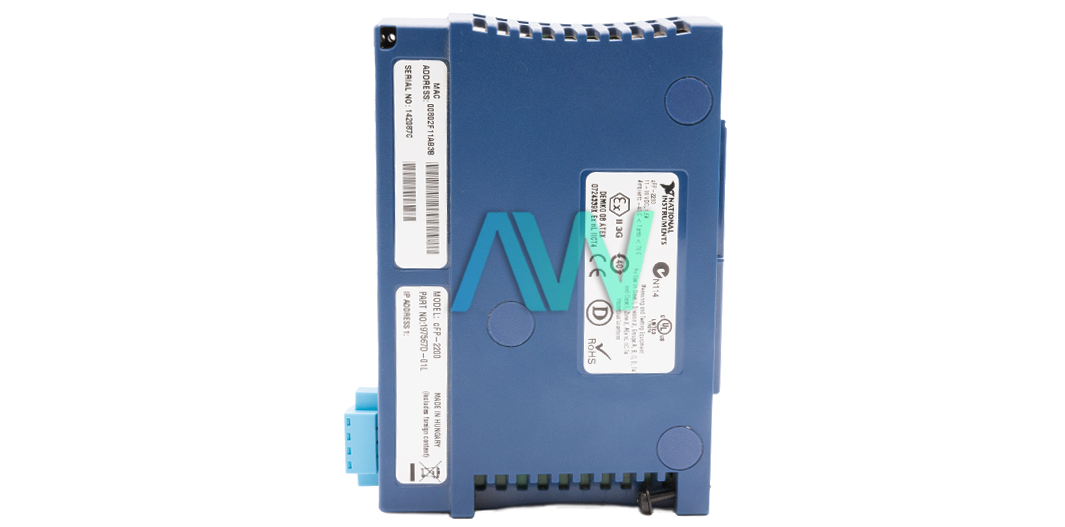

cFP-2200 National Instruments Controller for Compact FieldPoint | Apex Waves | Image
cFP-2200 New
cFP-2200 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

cFP-2200 National Instruments Controller for Compact FieldPoint | Apex Waves | Image
cFP-2200 National Instruments Controller for Compact FieldPoint | Apex Waves | Image
cFP-2200 New
cFP-2200 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cFP-2200 Controller for Compact FieldPoint

The National Instruments cFP-2200 (Part Number: 777317-2200) is a 128 MB Storage, 128 MB DRAM, 400 MHz Controller for NI CompactField Point. This Controller comes equipped with one serial port that can be used to connect a variety of serial devices, such as input or display devices. When power is applied to the NI cFP-2200, the Controller initiates a power on self-test or POST. The cFP-2200 can be configured to launch a stand-alone, embedded LabVIEW Real-Time application.

The system clock of this Controller acquires the time and date from the internally existing real-time, high precision clock at system startup. Users can also utilize the internal clock for the correction of the system clock's drift. The NI cFP-2200 has six DIP switches: NO APP, IP RESET, CONS OUT, SAFE MODE, USER 1, and USER 2. The two USER switches can be defined by the user for their own application. For embedded VIs, multiple remote front panels can be accessed through either a Web browser or LabVIEW. This allows the user to control and monitor any embedded VI from a remote location.

The cFP 2200 is fully compatible with IEEE 802.3 and offers 10 Mbps or 100 Mbps auto-negotiated communication rates. The maximum cabling distance possible with this Controller is 100 ms/segment. With this module, the user can utilize a Class 2, 11 to 30 VDC external power supply. For systems where more than eight modules are required, a combination of a cFP-1808 expansion chassis and the cFP 2200 is a cost-effective and viable solution. With this combination, users can accomplish I/O expansion over serial or Ethernet. For connection to another network, the cFP 2200 has a RJ-45 Ethernet port on its controller front panel. Also, it has an Ethernet port 2 for connections to private networks.

The cFP 2200 operates using the FieldPoint software 6.0.1 or later versions, and requires the installation of LabVIEW Real-Time Module 8.5.1 or later versions - an Application Development Environment. As stated earlier, the device has a RS-232 DTE serial port with a DB-9 connector.

cFP-2200 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.

ModelcFP-2200
ManufacturerNational Instruments
Part Number777317-2200
HTS Code8471500150
TypeController for Compact FieldPoint
Serial Ports1
RAM128 MB
Storage128 MB
CompatibilityIEEE 802.3
Weight9.8 oz.
WarrantyThree Year Warranty
cFP-2200 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cFP-2200:

National Instruments cFP-2200 Frequently Asked Questions



Question: What are the specifications of the NI cFP-2200's serial port?

Answer: The Controller has a single RS-232 serial port that allows for connection to peripherals.



Question: Why am I getting a server app error 1 stating “STM write meta data” when writing from a cFP-2200?

Answer: If you’re getting the STM write meta data error, it likely means that your Listener ID is wired to the STM write instead of the connection ID.



Question: How long can I record on the cFP-2200?

Answer: On the cFP-2200, as long as you send the data back to the host machine that you are connected to, you will be able to continually log data. You only need to be concerned about free space if you are storing data.
