cFP-AO-200, 8-Channel, Analog Output Module for Compact FieldPoint

Rated 5/5 | 9 ratings

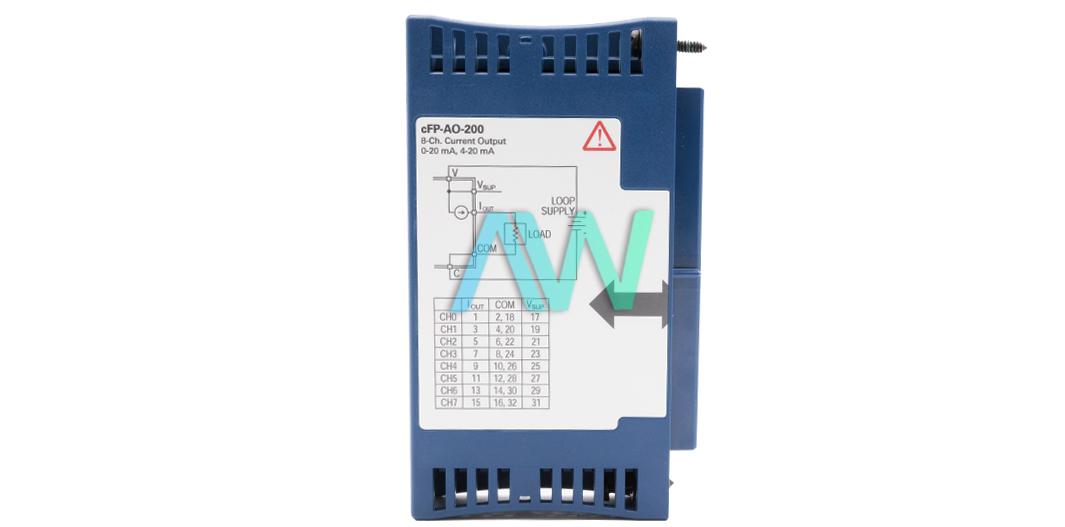

cFP-AO-200 National Instruments Analog Output Module for Compact FieldPoint | Apex Waves | Image

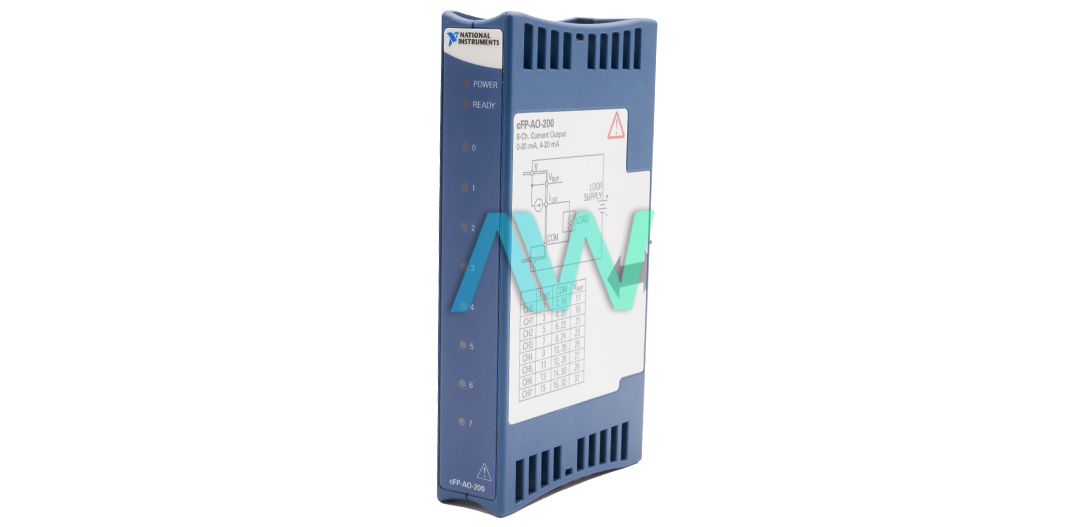

cFP-AO-200 National Instruments Analog Output Module for Compact FieldPoint | Apex Waves | Image
cFP-AO-200 New
cFP-AO-200 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

cFP-AO-200 National Instruments Analog Output Module for Compact FieldPoint | Apex Waves | Image
cFP-AO-200 National Instruments Analog Output Module for Compact FieldPoint | Apex Waves | Image
cFP-AO-200 New
cFP-AO-200 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cFP-AO-200 Analog Output Module for Compact Fieldpoint

The cFP-AO-200 (Part number: 777318-200) incorporates an open-circuit location for wiring and sensor investigating and shorting out insurance for wiring mistakes. Each channel is separately configurable. To make establishment and setup less demanding, the National Instruments cFP-AO-200 highlights HotPnP (fitting and-play) tasks, so it is consequently recognized and distinguished by the arrangement programming. With the cFP-AO-200 module, the user can straightforwardly interface with mechanical actuators or units under test and gain high-exactness power. The I/O modules adjust and scale building units to sensor signals, while also performing self-diagnostics to search for issues with the module or with the wiring, such as open momentum circles. The NI cFP AO 200 module has an update rate of 200 Hz. In general, information throughput to the controller or PC relies upon the product circle speeds and the system speeds.

This module incorporates eight 0 to 20 mA or 4 to 20 mA simple yield output channels (with an overranging of 0.5 mA), produced with a 12-bit DAC, and with an update rate of 200 Hz. Each yield channel incorporates a checking circuit and LED marker for open current circle location.  The NI cFP-AO-200 requires an outside power supply that gives 5 to 24 VDC. It is protected against short-circuits, and has a 2,300 Vrms transient overvoltage protection between the inter-module communication bus and the I/O channels. The NI device has a maximum conversion rate of 200 updates per second, and a slew rate of 0.4 mA per microsecond.

Compact FieldPoint modules incorporate an implicit power conveyance transport that gives different power associations on the module. A field wired power supply associated with the voltage (V) and normal (C) terminals is inside associated with a power circulation transport that gives extra breakout terminals to voltage supply (VSUP) and normal (COM). These terminals give a helpful method to disperse capacity to handle gadgets that require outer power. The device weighs 3.7 oz., and measures 5.00 x 2.60 x 0.94 in. in physical dimensions. It has a recommended operating temperature range of –40 to 70 °C, and a storage temperature range of –55 to 100 °C.

ModelcFP-AO-200
ManufacturerNational Instruments
Part Number777318-200
TypeAnalog Output Module for Compact FieldPoint
Input Channels8
Resolution12 bits
All Channel Update Rate200 Hz
Dimensions5.00 x 2.60 x 0.94 in.
Weight4.0 oz.
WarrantyThree Year Warranty
cFP-AO-200 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cFP-AO-200:

National Instruments cFP-AO-200 Frequently Asked Questions



Question: Why is my cFP-AO-200 putting out a lower max current level than normal?

Answer: The cFP-APO-200 output load drive capability is based upon the voltage of the external supply you’re using. They each have an internal 3 volt drop. You can use the V=I*R to determine the load drive capability. For example, with a 5-volt external supply, you have the 3 volt drop, so 2 Volts/ 21 mA = 95 Ohm load maximum. With a 24 V supply, you can drive the maximum rated load of 1000 Ohms. For a 350 Ohm load, you will need a minimum of a 10.5 Volt supply.



Question: How do you read open loop status on NI cFP-AO-200?

Answer: On the NI cFP-AO-200, if you are reading a multiple channel tag and one or more channels are in an Open Loop condition, then you will receive a warning from the FP Read or FP Write telling you that one or more channels have reported and Open Loop. If you need to find which channel specifically is reporting the Open Loop, you’ll have to read/write each channel one by one to get their status.



Question: Why am I getting an error code – 33180 with the cFP-AO-200 module?

Answer: To fix the error 33180 with the cFP-AO-200, you need to select “All” as FieldPoint I/O Point for this vi.
