cFP-BP-8 In Stock | Ships in 3-5 Days

Q: How many slots are in the cFP-BP-8?

The number of slots is indicated it the model name. The cFP-BP-8 has 8 slots, whereas the product cFP-BP-4 has 4 slots.

Q: Does the cFP-BP-8 have a local bus?

The cFP-BP-8 has a local bus for communications and module power.

cFP-BP-8, 8-Slot, 37-Pin D-SUB Connectors, Backplane for Compact FieldPoint

Rated 5/5 | 5 ratings

cFP-BP-8 National Instruments Backplane for Compact FieldPoint | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

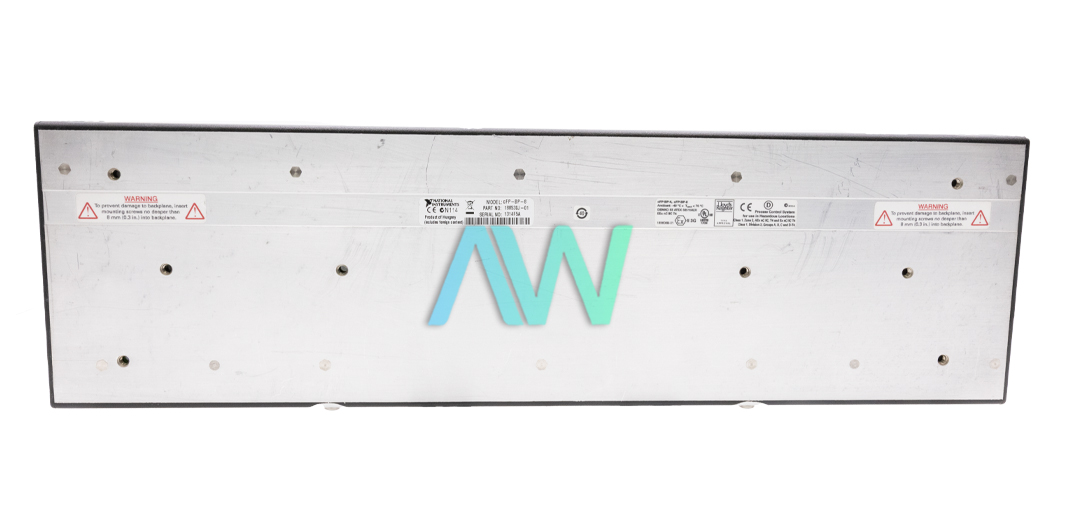

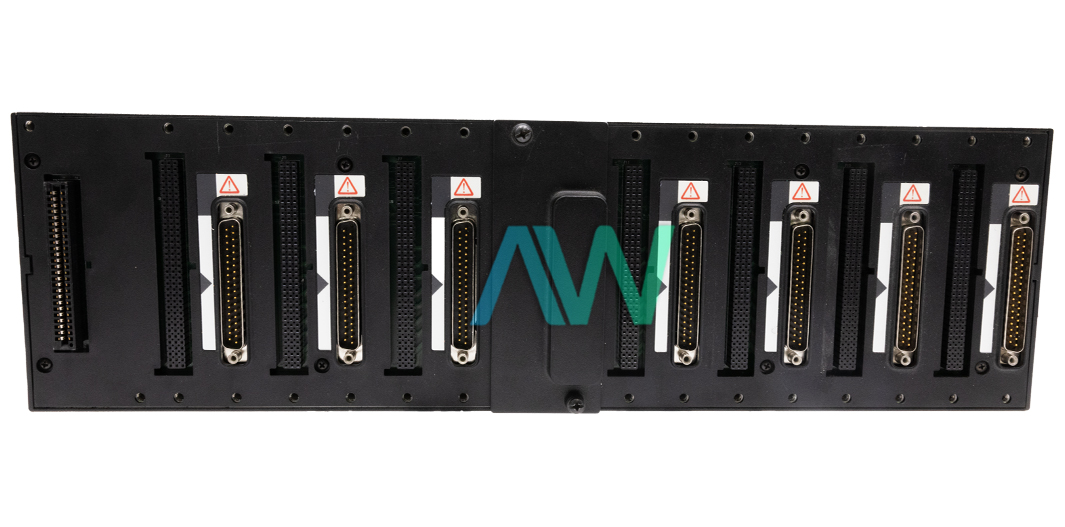

National Instruments cFP-BP-8 Backplane Module for Compact Fieldpoint

The NI cFP-BP-8 (Part number: 778617-08) Compact FieldPoint framework is comprised of one backplane, one cFP-21xx controller, at least one I/O module, and at least one connector square. Each Compact FieldPoint framework can be accessed by a boundless number of PCs and controllers, shaping a conveyed registering framework. The most extreme number of cFP-21xx controllers that the user can introduce on an Ethernet network is constrained just by the arranged topology. FieldPoint programming incorporates NI Measurement and Automation Explorer (MAX) and additionally server and driver programming for a simple mix into application programming bundles. These product segments deal with the low-level correspondences and equipment points of interest, disentangling automatic access to I/O channels. FieldPoint programming keeps running on Windows 2000/NT 4.0 Service Pack 6+/XP and incorporates the accompanying segments: MAX, LabVIEW VIs, LabVIEW Real-Time Module, LabWindows/CVI functions, Measurement Studio instrument drivers, Lookout, OPC server, and VI Logger. The NI device has 8 slots, with a power requirement of 24 VDC/20 W, and a power supply range of 11 to 30 VDC.

To associate I/O modules to enter flags or to outer loads, the user must introduce a cFP-BP-8 connector square or other network embellishment for every I/O module on the backplane. Then, it is possible to utilize the connector attachment to one side of every I/O module attachment. The device is equipped with a 37-pin D-SUB connector. The transient loads and working voltages are associated to estimation circuits from the circuit; they are related to aid test or estimation. The NI cFP-BP-8 Backplane Module for Compact FieldPoint additionally has the cFP-PM-H horizontal mounting bracket available. The mounting bracket offers mounting holes on the sides of the cFP-BP-8 module, allowing the user to easily mount the module to a panel.

The NI device weighs 9.8 oz. It has recommended operating and storage temperature ranges of –25 to 60 °C and –40 to 85 °C, a non-condensing humidity range of 10 to 90% RH, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–at a frequency range of 10 to 500 Hz.

The cFP-BP-8 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

Model	cFP-BP-8
Manufacturer	National Instruments
Part Number	778617-08
Type	Backplane for Compact FieldPoint
Slots	8
Connectors	37-pin D-SUB
Power Requirements with cFP System	24 VDC, 20 W
Power Supply Range	11 to 30 VDC
Software	LabVIEW Real-Time
Warranty	Three Year Warranty
cFP-BP-8 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for cFP-BP-8:

National Instruments cFP-BP-8 Frequently Asked Questions

Question: How many slots are in the cFP-BP-8?

Answer: The number of slots is indicated it the model name. The cFP-BP-8 has 8 slots, whereas the product cFP-BP-4 has 4 slots.

Question: Does the cFP-BP-8 have a local bus?

Answer: The cFP-BP-8 has a local bus for communications and module power.

Question: How do I connect field wiring to the NI cFP-BP-8?

Answer: You have three options to connect field wiring to the 37-pin D-Sub connector on the NI cFP-BP-8. You can either use an integrated connector block, use a cable to an external connector block mounted on a DIN rail, or make your own custom cable.
