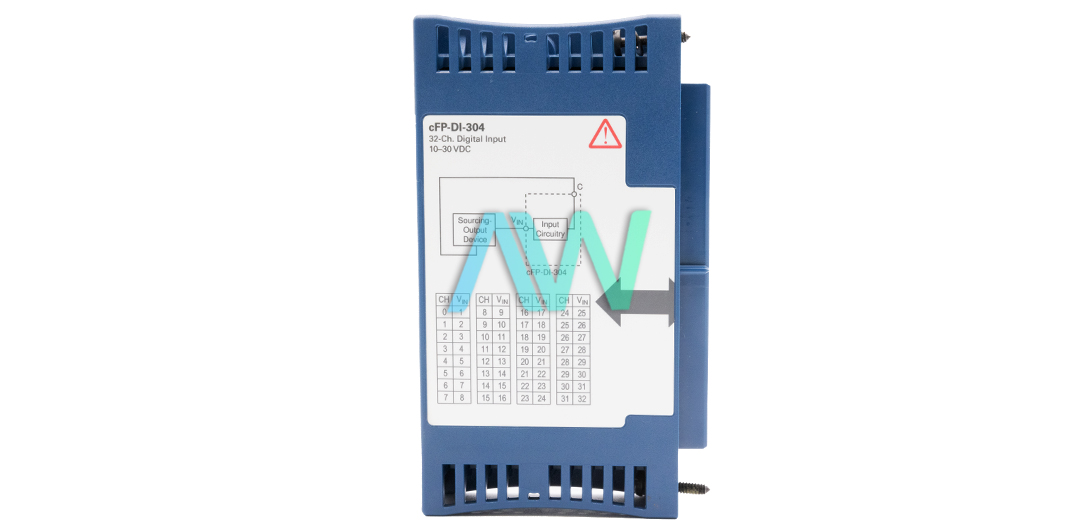

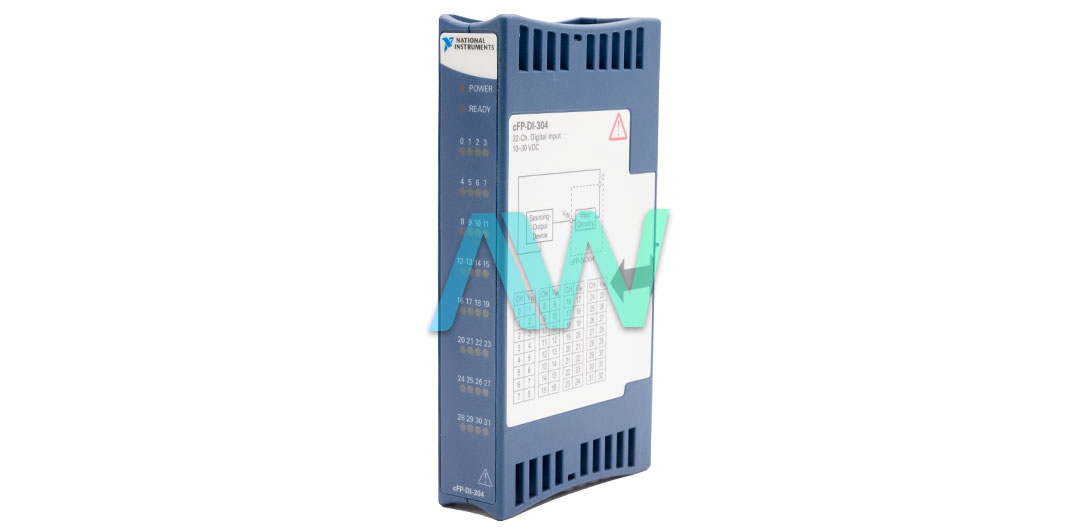

National Instruments cFP-DI-304 Digital Input Module for Compact FieldPoint
The cFP-DI-304 (Part number: 777318-304) is a Digital Input Module for Compact FieldPoint developed by National Instruments. This module is used to monitor voltage levels of the signals. The module is compatible with cFP devices. The module is interfaced with the Compact FieldPoint backplane. The cFP-DI-304 offers isolation between modules. This feature protects the Compact FieldPoint system/controller from high voltages. The cFP-DI-304 is mainly used for monitoring limit switches, power circuits, and relay closures. The module is also compatible with TTL devices.
The cFP-DI-304 Digital Input Module features 32 digital input channels. The impedance of the digital inputs is 30 kΩ. The input channels of the module are the sinking type. The module works over a range of 0~30 VDC. Also, the device has 2 analog output channels. The National Instruments cFP-DI-304 offers a continuous isolation of 250 Vrms between its channels and backplane. However, channels of the cFP-DI-304 are not isolated from each other. This model can withstand a transient voltage of the 2300 Vrms for 5 seconds. The cFP-DI-304 has an indication light on each input channel. The input module has two additional indication lights for POWER and READY status. All these indication lights are green. The module is powered by the network module. The required power of the cFP-DI-304 1 watt.
The cFP-DI-304 module is compatible with modules having 24 VDC power. To protect the module from damaging, the cFP-DI-304 is equipped with a current-limiting feature. The module can update all channels at a rate of 1 kHz. The complete data throughput is based on network speed and software. The device should be externally calibrated at least once a year. It is equipped with a 68-position VHDCI female I/O connector.
The cFP-DI-304 weighs 6.81 oz. It has recommended operating temperature ranges of –40 to 70 °C and –40 to 65 °C with system mounted upright and system mounted in other orientations respectively, a storage temperature range of –55 to 85 °C, a non-condensing humidity range of 10 to 90% RH, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–at a frequency range of 10 to 500 Hz.
| Model | cFP-DI-304 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-304 |
| Type | Digital Input Module for Compact FieldPoint |
| Input Channels | 32 |
| Input Range | 10 to 30 VDC |
| All Channel Update Rate | 1 kHz |
| Dimensions | 5.00 x 2.6 x 0.94 in. |
| Weight | 6.81 oz. |
| Warranty | Three Year Warranty |
| cFP-DI-304 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cFP-DI-304:
National Instruments cFP-DI-304 Frequently Asked Questions
Question: Where do I physically connect the NI cFP-DI-304 to the other equipment for current flow?
Answer: If you need to be able to connect directly to the NI cFP-DI-304, you can connect two sinking IO. The ground is going to be connected to one of the C terminals on the connector block for the cFP-DI-304. Where you connect the C terminal will depend on which connector block you are using.
Question: Does the NI cFP DI-304 feature bank isolation?
Answer: The NI cFP DI-304 features bank isolation with 2300 Vrms of breakdown isolation. It does not have channel-to-channel isolation.
Question: Can you safely use the cFP-DI-304 in areas where hazardous voltages may be present?
Answer: The cFP-DI-304 can be safely used with the cFP-CB-1 connector block in applications where hazardous voltages are present.
