Q: Can I use the cFP-PG-522 to control a stepper motor?

Yes, you can use a cFP-PG-522 to output pulses to your stepper motor controller. The cFP-PG-522 can provide finite or a continuous number of pulses. You can also adjust the duty cycle.

Q: How do you set the duty cycle on the NI cFP-PG-522?

To set the duty cycle on the NI cFP-PG-522, you just need to specify the on time and off time of the pulse.

Q: What is the maximum output frequency of the cFP-PG-522?

The maximum output frequency of the cFP-PG-522 is 5 kHz.

cFP-PG-522, 8-Channel, Digital Output Module for Compact FieldPoint

Rated 4.8/5 | 9 ratings

cFP-PG-522 National Instruments Digital Output Module for Compact FieldPoint | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

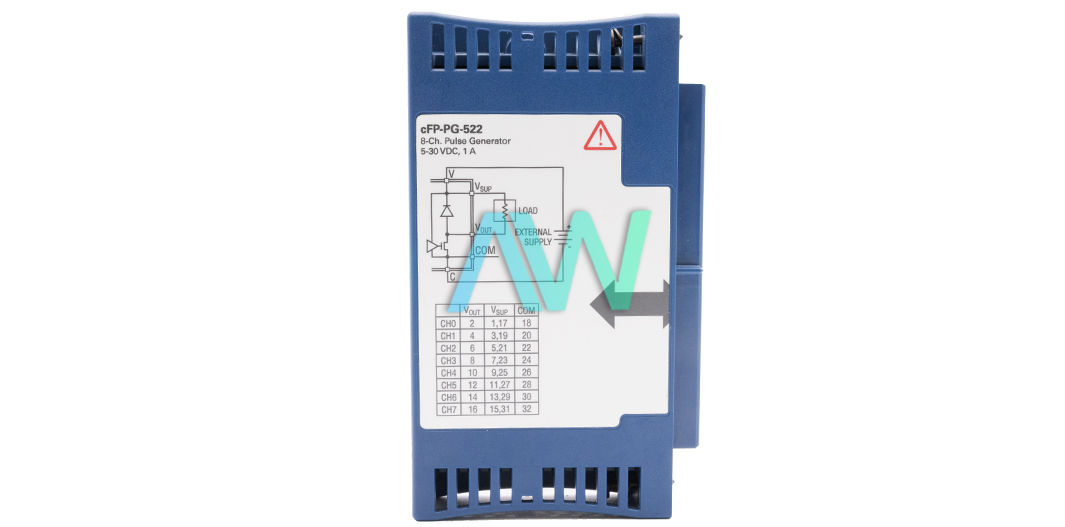

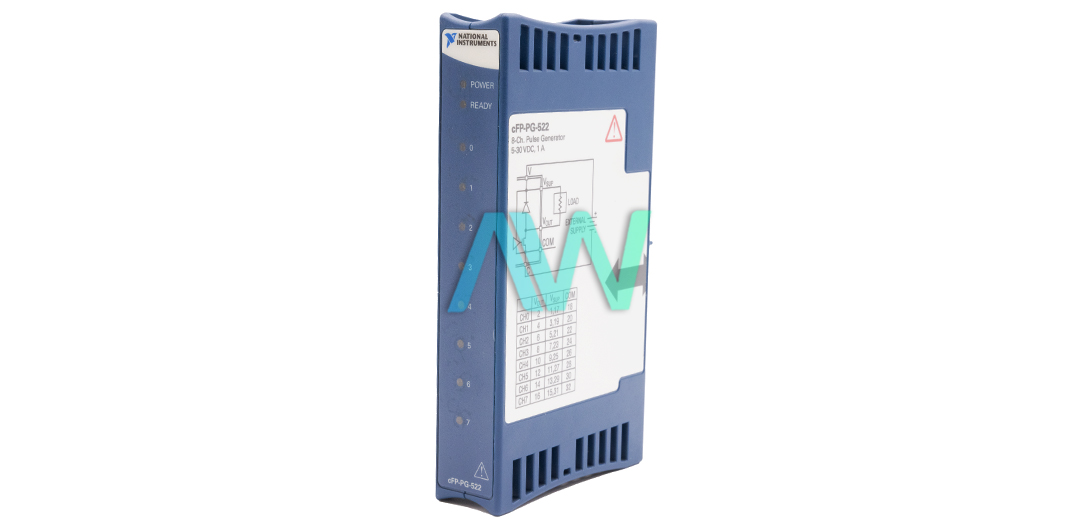

National Instruments cFP-PG-522 Digital Output Module for Compact FieldPoint

The cFP-PG-522 (Part number: 777318-522) is a pulse generation Digital Output Module by National Instruments. This module has 8 pulse generation output terminals. Each terminal can produce finite or continuous pulse trains. The pulse trains help control the external circuits and have a programmable duty cycle and frequency. The duty cycle is controlled through entering the low and high times for the channel. The NI cFP-PG-522 has eight terminals. They are all integrated as common terminals (COM). This module is also structured with power connections. There are sixteen such connections, which enable the module to power devices for field applications.

The cFP-PG-522 has 3 internal time-bases: 1 s, 10 s, and 100 s. The module also is featured with an LED per channel. The LED indicates the pulse generation by the channel. The software helps direct and drop finite pulse trains. It also provides the balance pulses. Moreover, it reads the output state of the channel. The NI cFP-PG-522 is generally used to provide the precise pulse train for gauge control and frequency measurement. It is also workable for stepper motor control. The module has built-in diagnostics to enable the module to certify trouble-free connection and maintenance.

The NI cFP-PG-522 has a hot-swappable feature. This feature makes the setup and connection simple. This feature is also recognized and perceived by the configuration software. The cFP-PG-522 is structured with optical bank isolation. It has 2300 Vrms of interruption isolation. It has the maximum frequency of 5 KHz. It is not accessible with the channel to channel isolation. The module fulfills the safety standards for electrical equipment. These standards are compulsory for control, measurement, and laboratory purposes.

Model	cFP-PG-522
Manufacturer	National Instruments
Part Number	777318-522
Type	Pulse Generation Module for Compact FieldPoint
Output Channels	8
Output Voltage	5 to 30 VDC, sinking
Output Frequency	5 kHz maximum
Maximum Output Current	2 A per channel
Weight	3.5 oz.
Warranty	2-3 Year Warranty
cFP-PG-522 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for cFP-PG-522:

National Instruments cFP-PG-522 Frequently Asked Questions

Question: Can I use the cFP-PG-522 to control a stepper motor?

Answer: Yes, you can use a cFP-PG-522 to output pulses to your stepper motor controller. The cFP-PG-522 can provide finite or a continuous number of pulses. You can also adjust the duty cycle.

Question: How do you set the duty cycle on the NI cFP-PG-522?

Answer: To set the duty cycle on the NI cFP-PG-522, you just need to specify the on time and off time of the pulse.

Question: What is the maximum output frequency of the cFP-PG-522?

Answer: The maximum output frequency of the cFP-PG-522 is 5 kHz.
