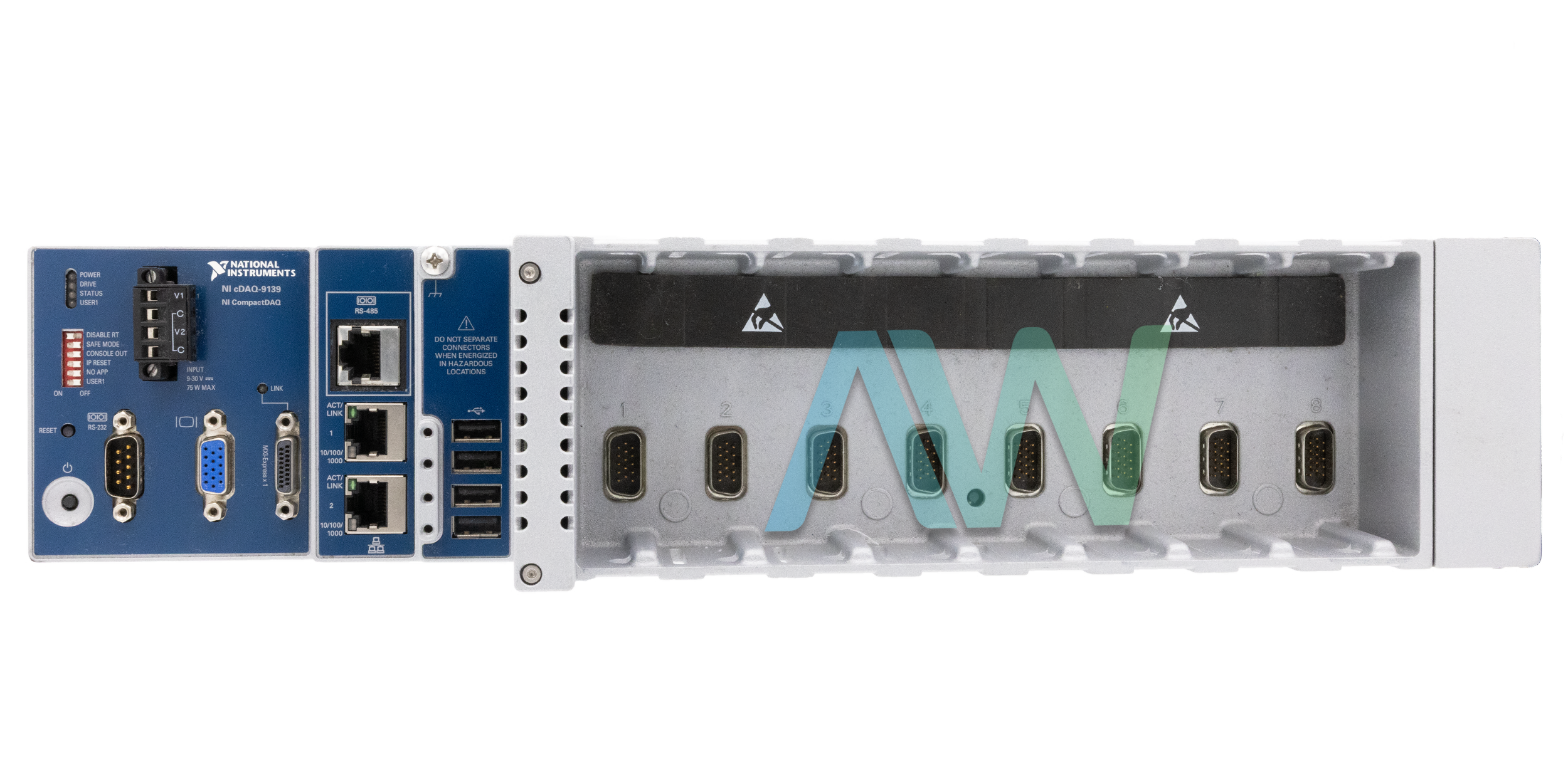

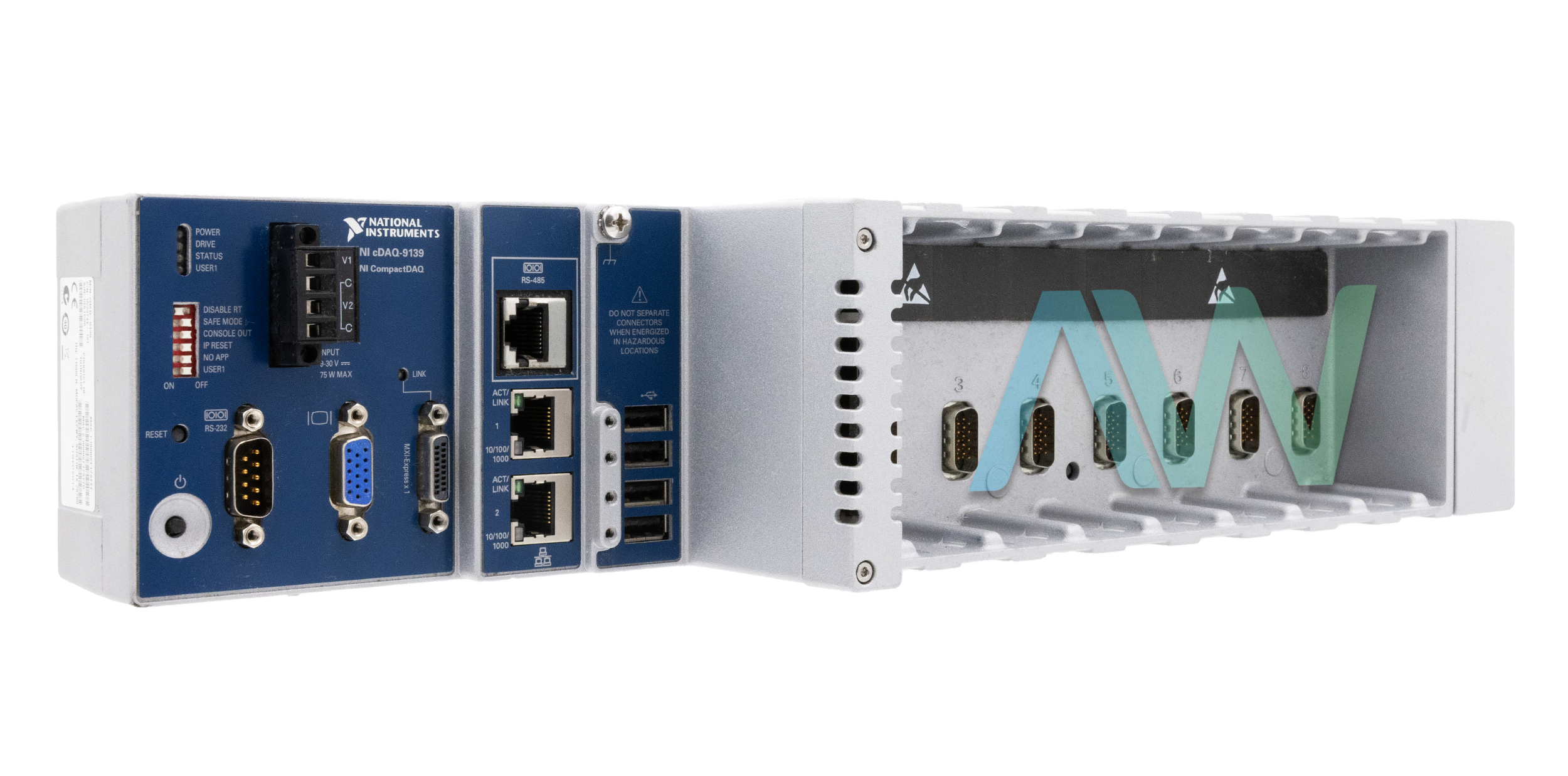

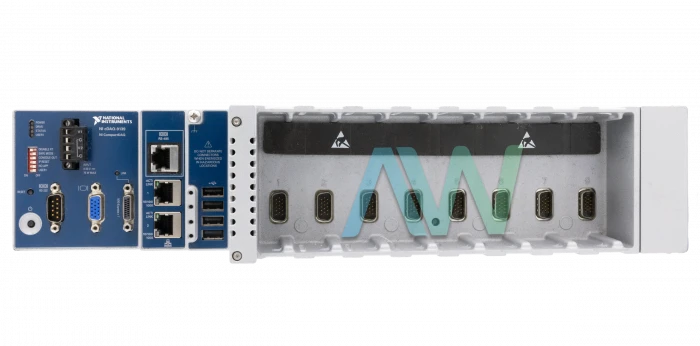

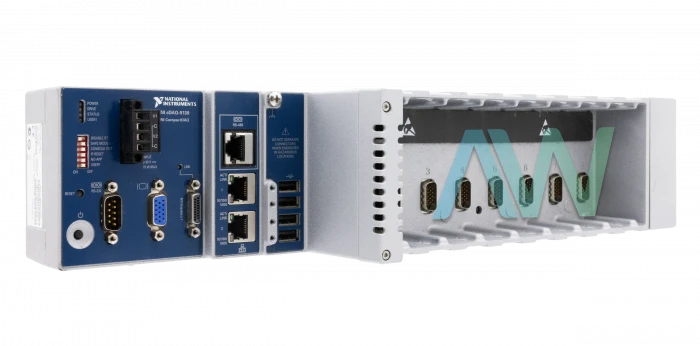

National Instruments cDAQ-9139 CompactDAQ Controller
The National Instruments cDAQ-9139 (Part Numbers: 782325-01 and 782326-01) is a CompactDAQ Controller. This 8-Slot Controller comes equipped with a 1.33 GHz Intel Core i7 processer. The NI cDAQ-9139 can control the synchronization, timing, and data transportation between an integrated computer and C Series I/O modules. This model allows the user to utilize either LabVIEW Real-Time (RT) software or Windows Embedded Standard.
The NI cDAQ-9139 can be combined with up to eight I/O modules. This CompactDAQ Controller offers a wide array of communication interfaces, including: 2 Ethernet Ports, 1 RS-232 Serial Port, 1 RS-485/422 Serial Port, 1 MXI-Express Port, 4 USB 2.0 Hi-Speed Ports, and 1 Video (VGA) Port.
The cDAQ-9139 is offered with 2 GB DDR3 system memory and 32 GB nonvolatile memory. The internal real-time clock incorporated in this controller can operate at an accuracy of 140 ppm. As far as its analog input capabilities are concerned, the cDAQ 9139 comes with an Input FIFO size of 127 samples per slot and can acquire samples at 12.5 ns timing resolution and 50 ppm of timing accuracy.
This cDAQ controller operates over a voltage input range of 9 V to 30 V and consumes 75 watts of power maximum. This model consumes 2 watts of power in standby mode. The NI cDAQ-9139 can accommodate around 50 I/O modules. Moreover, it also allows the hot swapping of modules. Thus, the user can add or remove their desired I/O modules without causing any interruptions within the existing system.
| Model | cDAQ-9139 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 782325-01 and 782326-01 |
| Type | CompactDAQ Controller |
| Slots | 8 |
| CPU | Intel Core i7-660UE |
| Network/Ethernet Ports | 2 |
| Dimensions | 15.80 in. × 3.47 in. × 4.78 in. |
| Weight | 6.16 lb. |
| Warranty | 2-3 Year Warranty |
| cDAQ-9139 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cDAQ-9139:
National Instruments cDAQ-9139 Frequently Asked Questions
Question: What is the difference between the two versions of the cDAQ-9139?
Answer: Part number 782325-01 is designed for Windows OS, while part number 782326-01 is for Real-Time OS.
Question: What is the voltage input range of the cDAQ 9139?
Answer: The cDAQ 9139 has a voltage input range from 9 V to 30 V.
Question: What is the maximum power consumption of the NI cDAQ-9139?
Answer: The maximum power consumption of the NI cDAQ-9139 is 75 W.
Question: What is the earliest version of NI-DAQmx support for the cDAQ-9139 for Windows?
Answer: NI-DAQmx 9.5.1 is the earliest version of NI-DAQmx support for the cDAQ-9139 for Windows.
cDAQ-9139 PDF Manuals
NI-CDAQ-9138-9139-LETTER-OF-VOLATILITY.PDF
NI-CDAQ-9138-9139-USER-MANUAL.PDF
NI-CDAQ-9138-9139-FOR-LABVIEW-REAL-TIME-QUICK-START.PDF
NI-CDAQ-9138-9139-FOR-WINDOWS-QUICK-START.PDF
NI-CDAQ-9139-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
