Modular Systems > National Instruments > CompactDAQ

cDAQ-9185 Request for Availability

Q: Why are there two different part numbers for the NI cDAQ-9185?

Part number 785064-01 is not conformal coated, while part number 786473-01 is conformal coated.

Q: Is the NI cDAQ-9185 CompactDAQ Chassis supported in Linux?

No, this Chassis is not supported in Linux.

Q: Why can't I see the CompactDAQ Chassis in LabVIEW?

The cDAQ-9185 does not have its own controller, so it can not be added to a LabVIEW project- instead, you will be able to access it with DAQmx API.

cDAQ-9185, 4-Slot, Ethernet Bus Connector, TSN Enabled, CompactDAQ Chassis

Rated 4.5/5 | 17 ratings

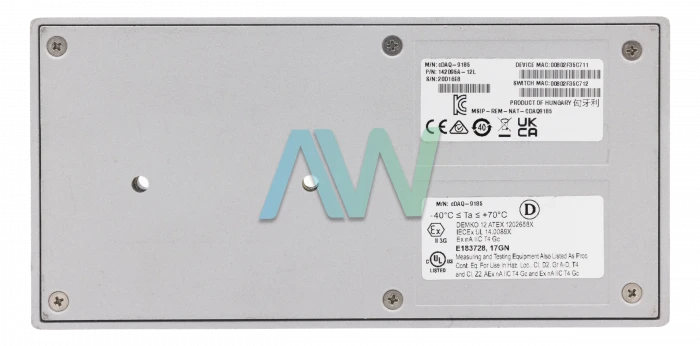

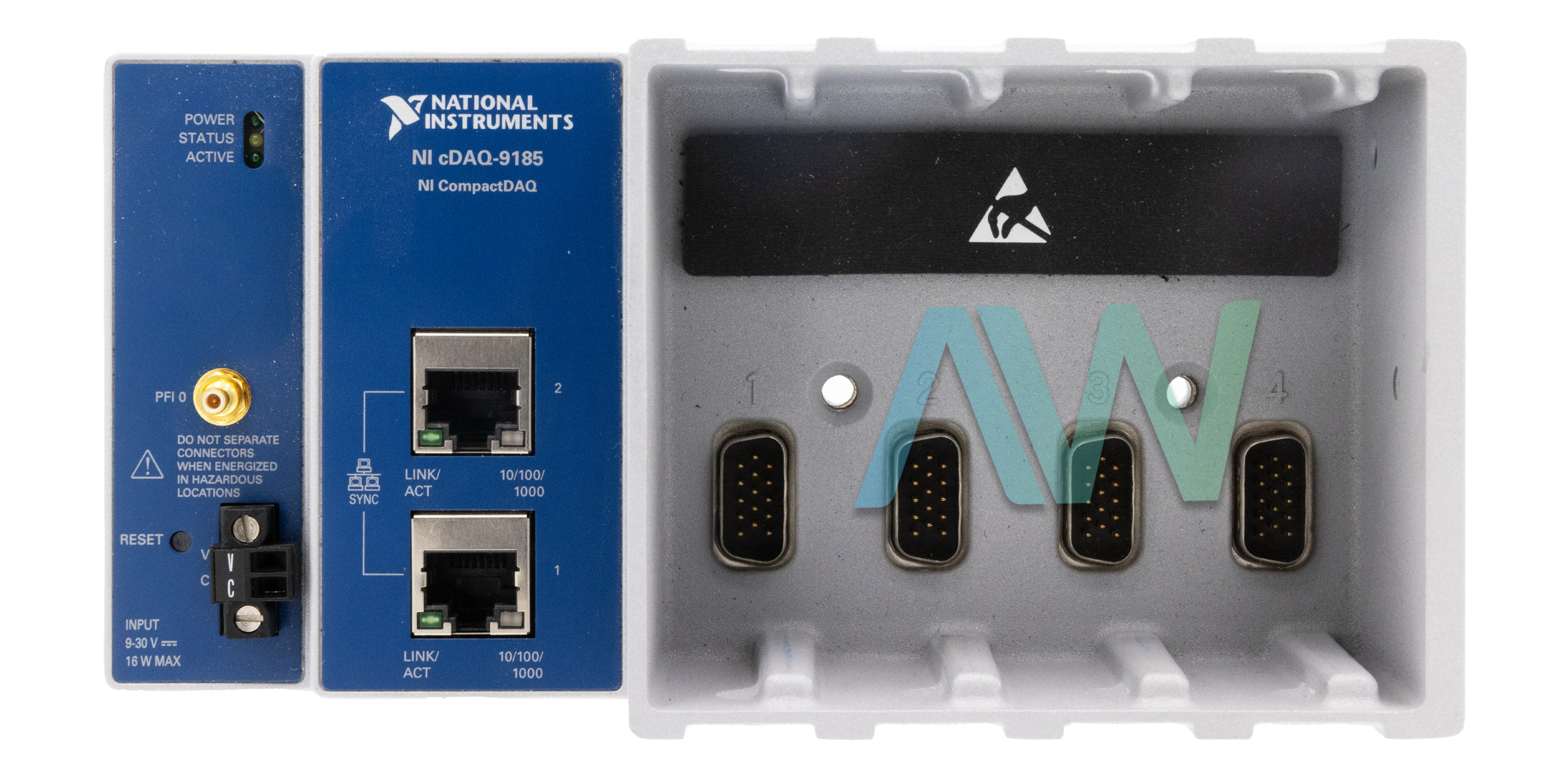

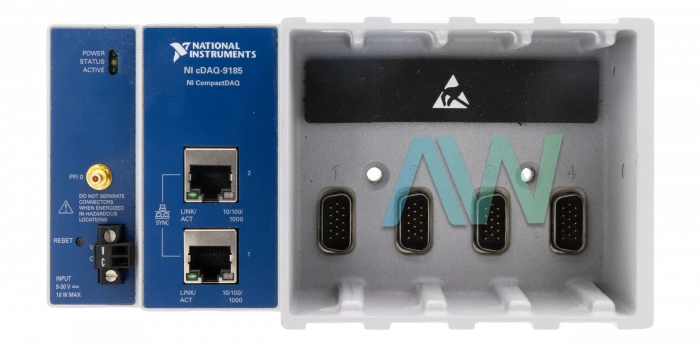

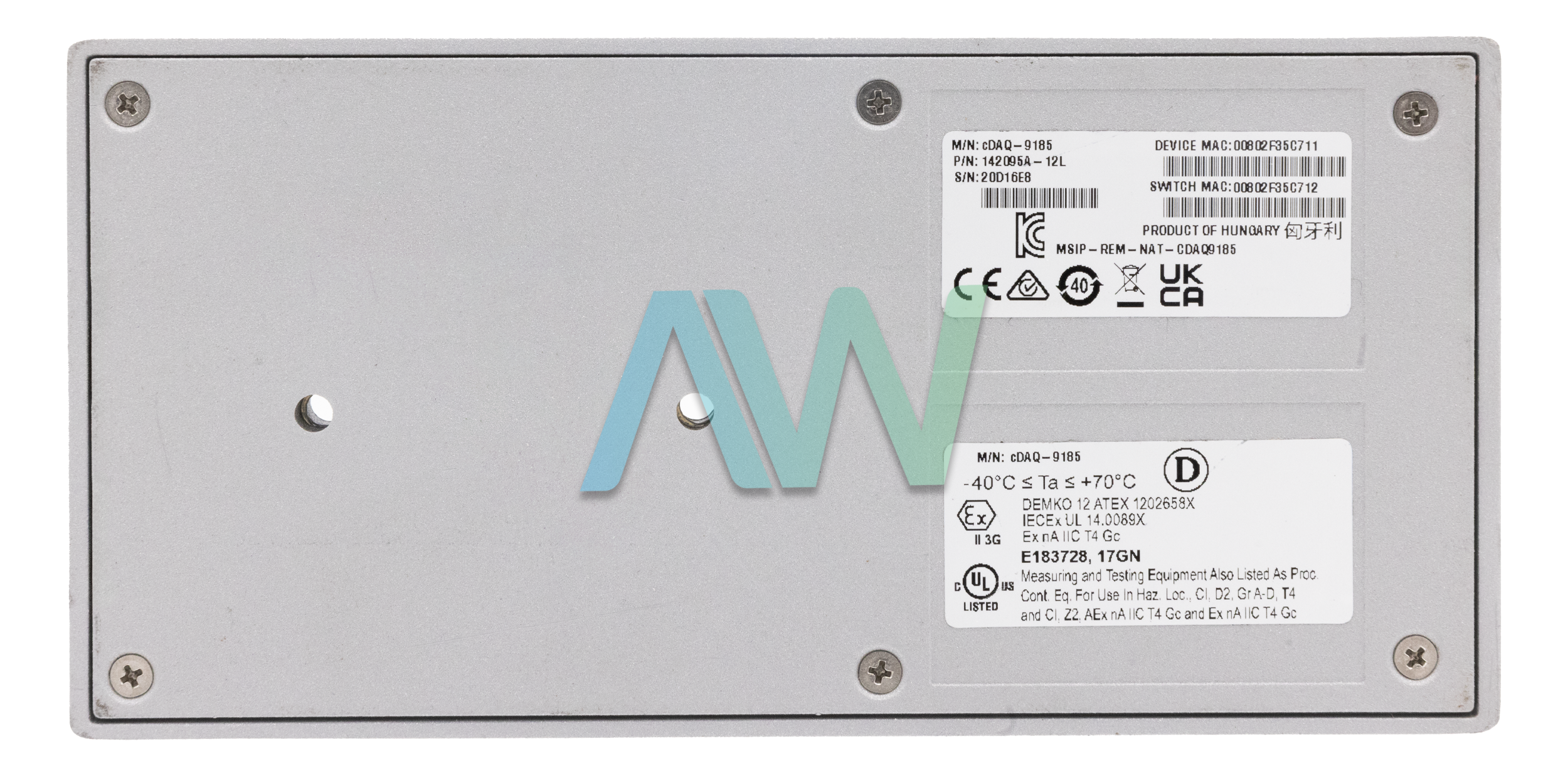

cDAQ-9185 NI CompactDAQ Chassis | In Stock Ships Today | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Expert Insights for the cDAQ-9185

"The cDAQ-9185 is a CompactDAQ chassis that is perfect for small remote measurement systems. It has ethernet connectivity, timing synchronization, and four 32-bit counters. It is able to use TSN for measurements over long distances. With 2 ethernet ports, you can have redundant network connectivity, or combine chassis in the same system. It is perfect for a growing or changing system."

- Chris B.

LabVIEW Trained

In-House Technician

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Expert Insights for the cDAQ-9185

- Chris B.

LabVIEW Trained

In-House Technician

National Instruments cDAQ-9185 CompactDAQ Chassis

The cDAQ-9185 (Part Numbers: 785064-01, 786473-01, 787929-01) is a CompactDAQ Chassis. With this model, the user can introduce a thermocouple module by an accelerometer estimation module and gain both at various rates. The NI cDAQ-9185 Chassis has numerous simple information timing motors, which allows the user to gather the majority of their simple info modules in up to three arrangements of modules. These sets, known as undertakings, would all be able to keep running at various rates if each has its own specific motor planning in the backplane undercarriage. This reduces the need to demolish bring down speed information from the higher-speed information.

To exploit the 1,000 Mbit/s of data transmission on a Gigabit Ethernet interface, this NI CompactDAQ Chassis actualizes a TCP/IP network protocol. With this innovation, C Series modules such as the NI-9223 can persistently gain up to 1 MS/s of synchronous 16-bit information on all four channels. Besides, various NI CompactDAQ undercarriages can have a similar Gigabit Ethernet organized for appropriated, high-channel-count frameworks. The device has a timing accuracy of 50 ppm of sample rate.

Utilizing a modern programming design, the NI-DAQmx driver programming allows for buffered operations. This operation type is when data first moves from a host buffer to an onboard FIFO before being written to modules for analog output. For digital input, the data moves from the onboard FIFO to a PC buffer. In the meantime, the driver screens the condition of the system to modify for startling deferrals or transitory intrusions. The greater part of this is preoccupied from the client, so the user can center on the estimation application and not the system. The device can be programmed using LabVIEW or LabWindows/CVI.

The NI device weighs 23.3 oz, and measures 7.01 x 3.47 x 2.52 in. in physical dimensions. It has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, non-condensing operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH respectively, and random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz. More information about the cDAQ-9185 can be found in the datasheets and manuals of the "Manuals & PDFs" tab.

Model	cDAQ-9185
Manufacturer	National Instruments
Part Numbers	785064-01, 786473-01, 787929-01
Type	CompactDAQ Chassis
Slots	4
Bus Connector	Ethernet
Timing Accuracy	50 ppm of Sample Rate
Onboard Trigger?	Yes
Synchronization Enabled?	Yes
Wiring Gauge	24 AWG to 14 AWG
Operating Temperature Range	-40 °C to 70 °C
Storage Temperature Range	-40 °C to 85 °C
Dimensions	7.01 x 3.47 x 2.52 in. (178.1 mm × 88.1 mm × 64.1 mm)
Weight	23.3 oz. (660.5 g)
Warranty	Three Year Warranty
cDAQ-9185 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote for Pricing Information

Associated part numbers for cDAQ-9185:

National Instruments cDAQ-9185 Frequently Asked Questions

Question: Why are there two different part numbers for the NI cDAQ-9185?

Answer: Part number 785064-01 is not conformal coated, while part number 786473-01 is conformal coated.

Question: When I run the NI cDAQ-9185 in Test Panels in MAX, I get an Error 209836 - "the devices in your task cannot be synchronized." What should I do?

Answer: This may be because there are no available synchronization mechanisms between the devices. Make sure that all of your drivers are updated.

Question: Is the NI cDAQ-9185 CompactDAQ Chassis supported in Linux?

Answer: No, this Chassis is not supported in Linux.

Question: How many ethernet ports are available on the cDAQ-9185?

Answer: The cDAQ chassis is equipped with 2 ethernet ports.

Question: Why can’t I see the NI cDAQ-9185 when it’s connected via the network? I can see it when it’s connected through MAX but not when connected through the network.

Answer: Your cDAQ-9185 may not be able to be seen because it is TSN (Time Sensitive Network) enabled. TSN uses the Rapid Spanning Tree Protocol (RSTP) to create a loopless network, which is not compatible with some network settings. If it is not possible to configure your network differently, you could consider a non-TSN cDAQ chassis, such as the cDAQ-9184 or cDAQ-9188.

Question: Why can't I see the CompactDAQ Chassis in LabVIEW?

Answer: The cDAQ-9185 does not have its own controller, so it can not be added to a LabVIEW project- instead, you will be able to access it with DAQmx API.
