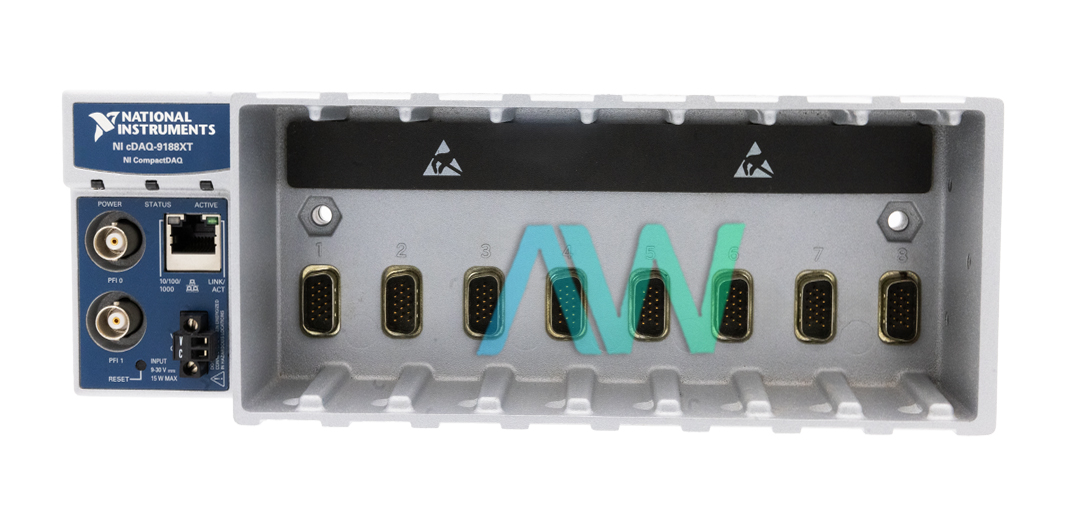

cDAQ-9188XT National Instruments CompactDAQ Ethernet Chassis | Apex Waves | Image

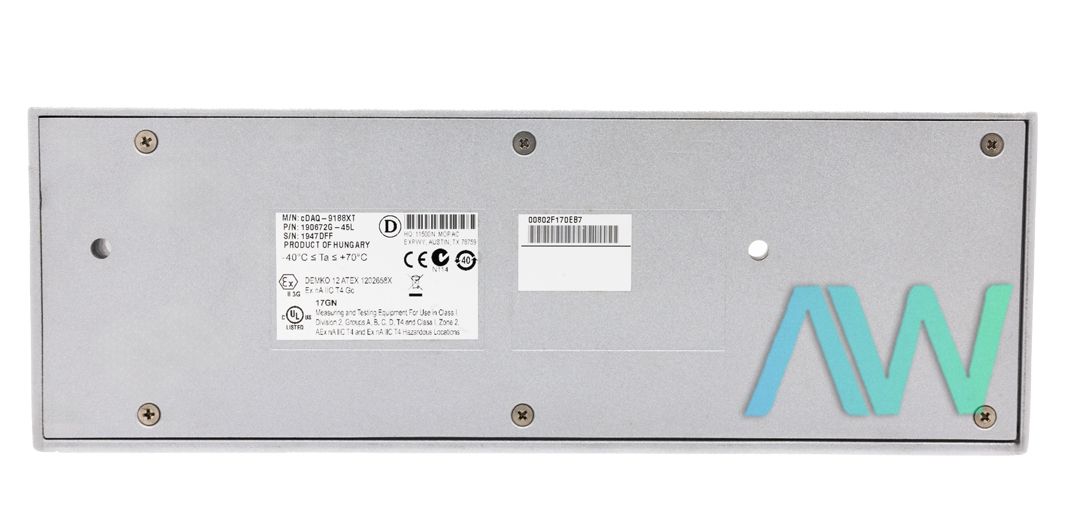

cDAQ-9188XT National Instruments CompactDAQ Ethernet Chassis | Apex Waves | Image
cDAQ-9188XT New
cDAQ-9188XT Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

cDAQ-9188XT National Instruments CompactDAQ Ethernet Chassis | Apex Waves | Image
cDAQ-9188XT National Instruments CompactDAQ Ethernet Chassis | Apex Waves | Image
cDAQ-9188XT New
cDAQ-9188XT Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cDAQ-9188XT CompactDAQ Extended Temperature Ethernet Chassis

The cDAQ-9188XT (Part number: 782824-01) is a CompactDAQ Ethernet Chassis intended for little, circulated sensor estimation frameworks. The suspension additionally has four 32 bit universally useful counters/clocks. The user can get to these counters through an introduced, equipment coordinated computerized C Series module for applications that include quadrature encoders, PWM, occasion checking, beat train creation, and period or frequency estimation.

The NI cDAQ-9188XT Chassis has three AI timing motors, which implies that three simple information assignments can be running at once on a chassis. A simple information errand can incorporate channels from numerous simple information modules. In any case, channels from a solitary module cannot be utilized in various errands. Numerous planning motors permit the cDAQ-9188XT Ethernet Chassis to keep running up to three simple information undertakings at the same time, each utilizing autonomous planning and activating setups. The three AI timing motors are ai, te0, and te1.

This model does not have a guard dog reset programming direction inside the time indicated for the guard dog clock. The outputs go to a client characterized termination state and stay in that state until the guard dog clock is incapacitated by a gadget reset. After the guard dog clock terminates, the cDAQ-9188XT body cannot play out any activity until the NI cDAQ-9188XT is reset.

With this model, the user can configure a safeguard component utilizing the guard dog clock for output types to respond properly, choose from in excess of 50 hot-swappable I/O modules with incorporated signal molding, stream nonstop waveform estimations with licensed NI Signal Streaming innovation and simplify setup with zero design organizing and an implicit online arrangement utility.

ModelcDAQ-9188XT
ManufacturerNational Instruments
Part Number782824-01
TypeCompactDAQ Extended Temperature Ethernet Chassis
Slots8
Analog Input FIFO Size127 samples per slot
Voltage Input Range9 V to 30 V
Dimensions10.00 in. × 3.47 in. × 2.32 in.
Weight31.7 oz.
Warranty2-3 Year Warranty
cDAQ-9188XT ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cDAQ-9188XT:

National Instruments cDAQ-9188XT Frequently Asked Questions



Question: What is the timing accuracy of the cDAQ-9188XT?



Answer: The cDAQ-9188XT has a timing accuracy of 50 ppm of the sample rate.



Question: What is the maximum sample rate of the NI cDAQ-9188XT?



Answer: The maximum sample rate of the NI cDAQ-9188XT is dependent on the C Series module(s), as is the quantity of channels supported and several other specifications.



Question: Which types of counter measurements are possible on the cDAQ-9188XT?



Answer: The cDAQ-9188XT can perform the following counter measurements: pulse width, edge counting, two-edge separation, pulse, period, and semi-period.



Question: Which type of Ethernet network interface does the NI cDAQ-9188XT have?



Answer: The NI cDAQ-9188XT has 1000 Base-TX, full-duplex; 1000 Base-TX, half-duplex; 100 Base-TX, full-duplex; 100 Base-TX, half-duplex; 10 Base-T, full-duplex; 10 Base-T, half-duplex Ethernet network interface.
