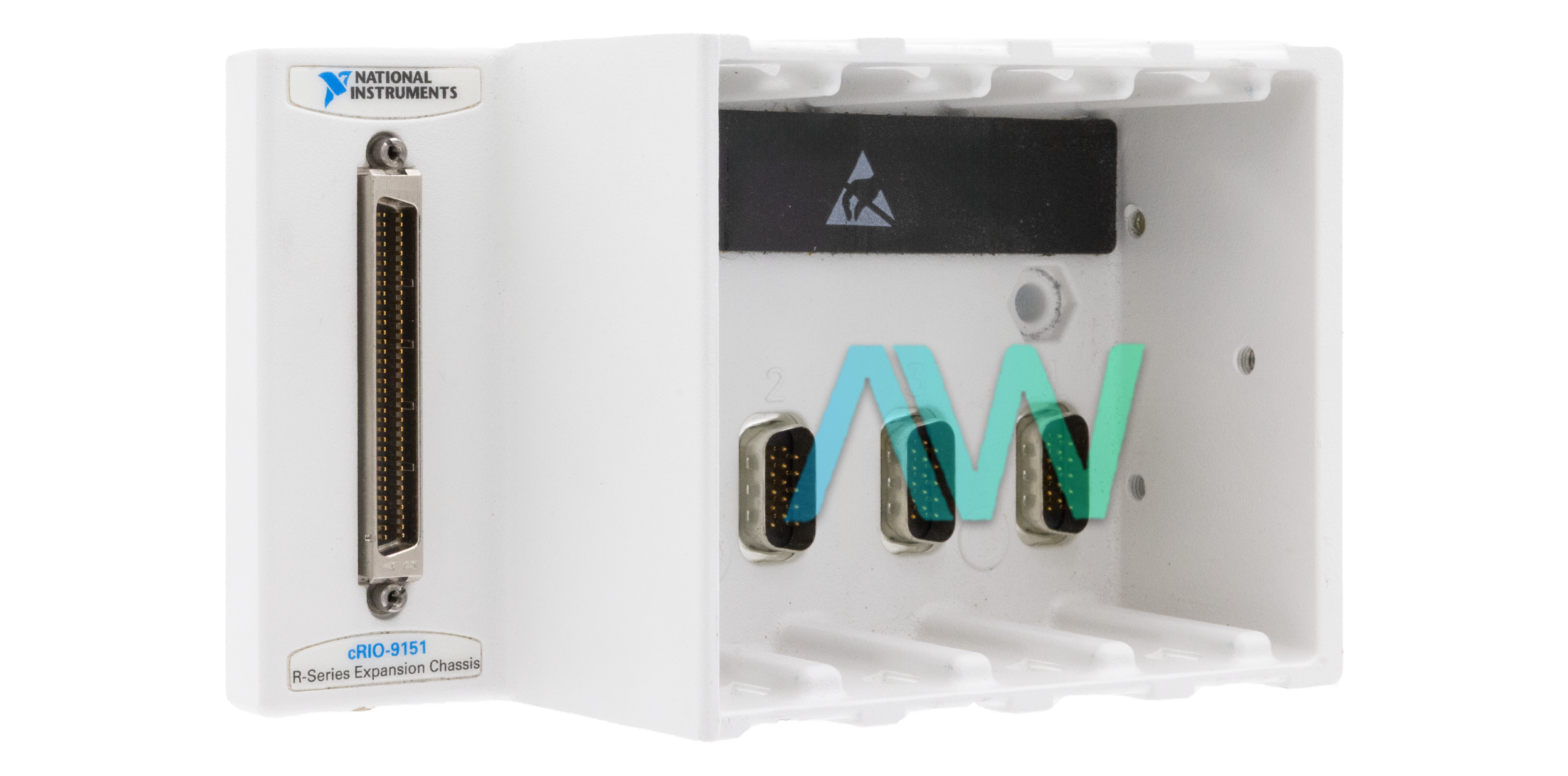

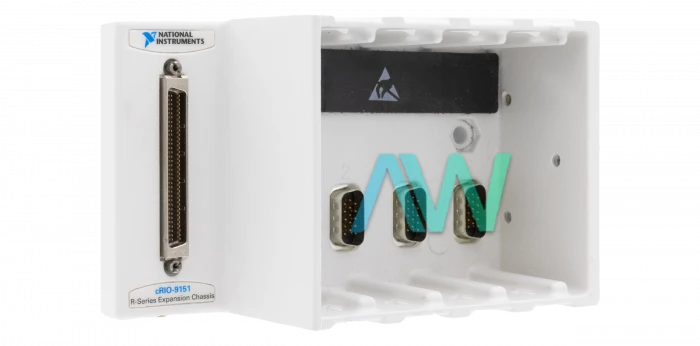

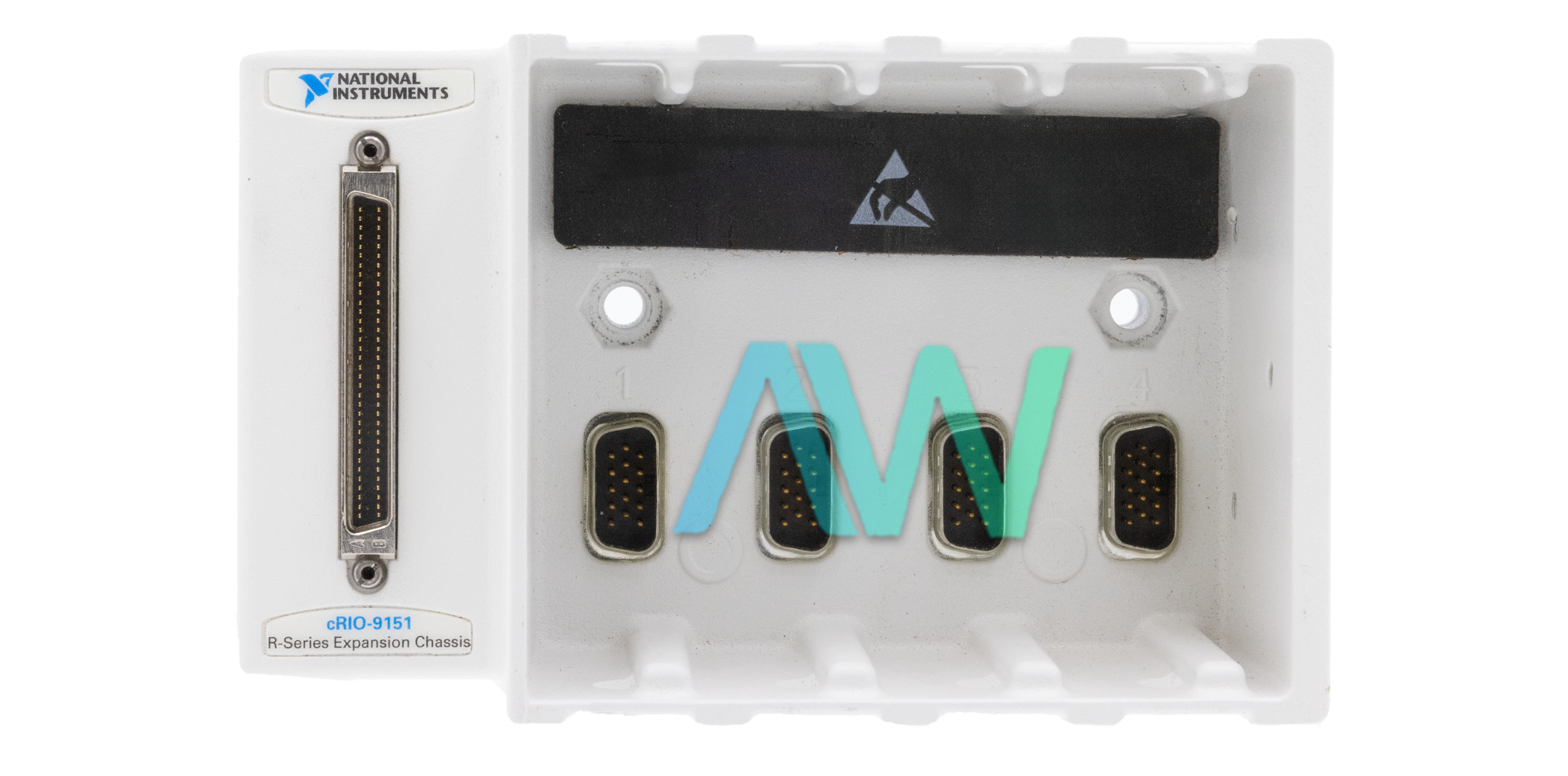

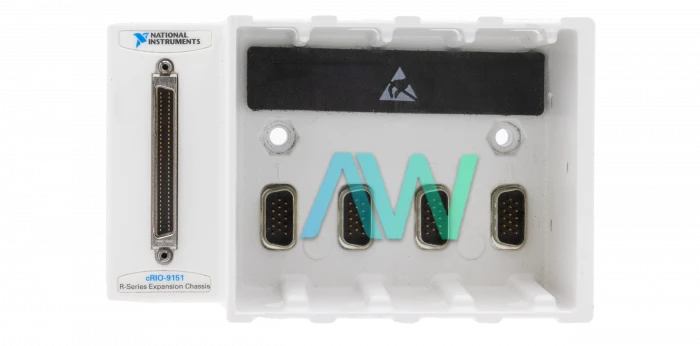

National Instruments 779008-01 Reconfigurable I/O Module CompactRIO Chassis
The part number 779008-01 from National Instruments is the identifying part number for the NI-9151 4-Slot, Reconfigurable I/O Module CompactRIO Chassis. This 4-slot chassis is designed for the National Instruments CompactRIO I/O modules. The chassis has a power consumption rating of 0.5 W maximum in Active mode and does not support the Sleep mode.
The 779008-01 chassis has a compact size with dimensions of 142 mm × 88.1 mm × 59.2 mm (5.6 in. × 3.5 in. × 2.3 in.) and weighs 527 grams without the I/O modules attached. With U.S. (UL) Class I, Division 2, Groups A, B, C, D, and T4 standards the module can be mounted in environments where flammable gases, vapors, or liquids may be present intermittently under normal operating conditions. The T4 designation signifies that the chassis is rated for use in environments where the temperature may reach up to T4 (130 degrees Celsius). Similarly, the chassis is designed according to the Canada (C-UL), Europe (ATEX), and International (IECEx) standards.
The 779008-01 chassis meets the EMC standards for sensitive electrical equipment for measurement, control, and laboratory use with the EN 55011 Emissions; Group 1, Class A Nonindustrial levels per EN 61326-1:1997 + A2:2001, Table 1 CE, C-Tick, and FCC Part 15 (Class A) Compliant standards.
Following the IEC 60068-2-1, and IEC 60068-2-2 standards the 779008-01 chassis is designed to be operated in an environment with an operating temperature of -40 °C to 70 °C. It can also be stored in an environment with a temperature of -40 degrees Celsius to 85 degrees Celsius. The operating humidity according to the IEC 60068-2-78 standard is between 10% RH to 90% RH, non-condensing, while the storage humidity is between 5% RH to 95% RH, non-condensing. The chassis is IP 40-rated protecting it from surface-level scratches. To mount the chassis it is recommended to mount it on a standard 35 mm DIN rail at an altitude of 2000 meters maximum. The chassis can be mounted with two M4 screws or number 10 Panhead screws. This device is designed for indoor use only.
| Part Number | 779008-01 |
|---|---|
| Model Name | NI-9151 |
| Part Type | Reconfigurable I/O Module CompactRIO Chassis |
| Power Consumption | 0.5 Watts (Active Mode) |
| Weight (unloaded) | 527 grams |
| Dimensions | 142 mm × 88.1 mm × 59.2 mm (5.6 in. × 3.5 in. × 2.3 in.) |
| Operating temperature (IEC 60068-2-1, IEC 60068-2-2) | -40 °C to 70 °C |
| Storage temperature (IEC 60068-2-1, IEC 60068-2-2) | -40 °C to 85 °C |
| Ingress protection | IP 40 |
| Maximum Altitude | 2000 meters |
| Manufacturer | NI |
