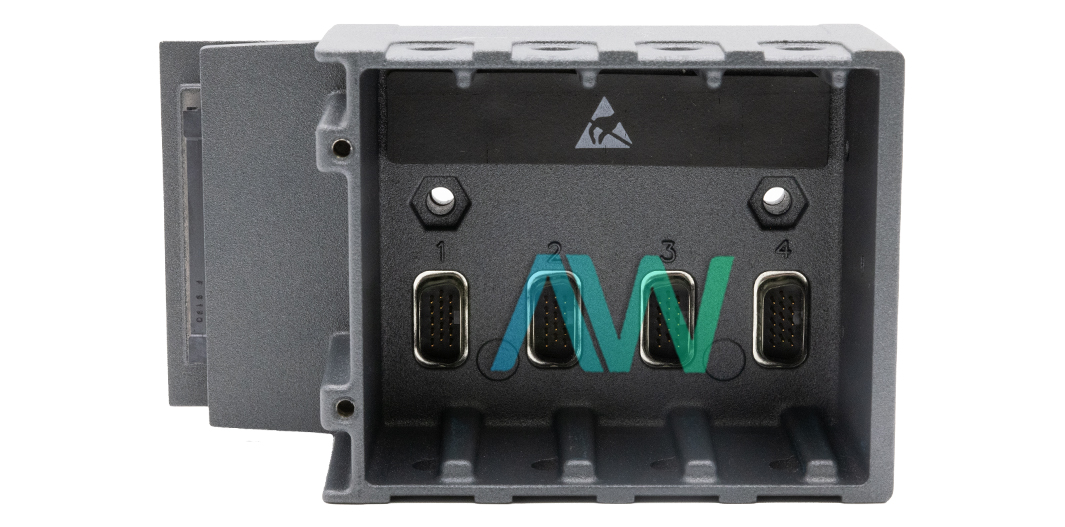

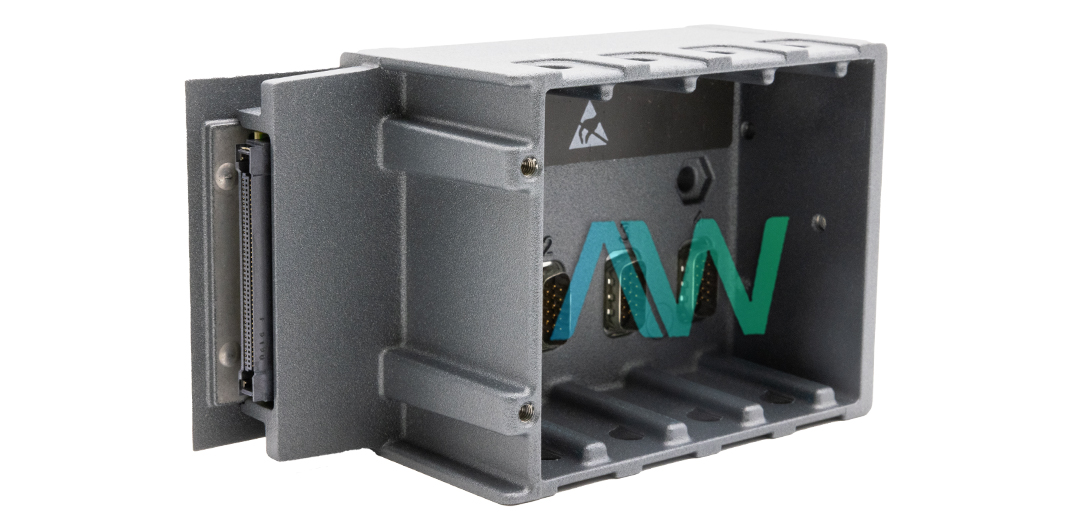

National Instruments 780917-01 CompactRIO Chassis

National Instruments part number 780917-01 is an identifying part number for the cRIO-9113 a CompactRIO Chassis with 4 slots and Virtex-5 LX50 FPGA Type. The NI 780917-01 features an FPGA that shares interconnect and access to a global routing grid, ensuring consistent high-speed performance. FPGAs are crucial in building reliable and highly available systems. The Virtex-5 family System Monitor simplifies monitoring of the FPGA and its external environment, enhancing overall system reliability and ease of management. The Virtex-5 FPGA on this CompactRIO Chassis employs input LUTs capable of handling up to 64 configurations, enabling greater logic execution per slice.

The slices are positioned closer together to minimize electron propagation delay and improve overall performance speeds. LabVIEW FPGA's single-cycle Timed Loop structure optimally utilizes six-input LUTs, significantly enhancing resource efficiency. This allows users to fit more LabVIEW FPGA code onto the Virtex-5 FPGA and execute more operations per clock cycle. Each FPGA within the Virtex-5 family features a System Monitor block, incorporating a 10-bit 200k SPS ADC (Analog-to-Digital Converter). This ADC is used to convert signals from on-chip sensors, such as temperature and power supply sensors, providing information about the FPGA's internal conditions.

External environmental monitoring is enabled through several analog input channels, supporting a wide range of voltage signal types. These inputs are versatile and support unipolar, bipolar, and true differential data formats. To install a CompactRIO system, you'll need the following key components: a reconfigurable embedded chassis and an intelligent real-time embedded controller. Additionally, C Series I/O modules are required for interfacing with external devices. Mounting hardware, including two M4 or number 10 panhead screws if panel mounting is needed, along with a number 2 Philips screwdriver, ensures secure installation. A reliable power supply and Ethernet cable are essential to power and connect the system, facilitating seamless operation and communication in industrial and embedded applications.

Part Number780917-01
Model RangecRIO-9113
Part TypeCompactRIO Chassis
Slots4
FPGAVirtex-5 LX50
Number of flip flops28,000
Embedded RAM1,728 kbits
Number of 6-input LUTs28,000
Total Chassis Power Consumption3,300 mW maximum
Weight20 oz.
