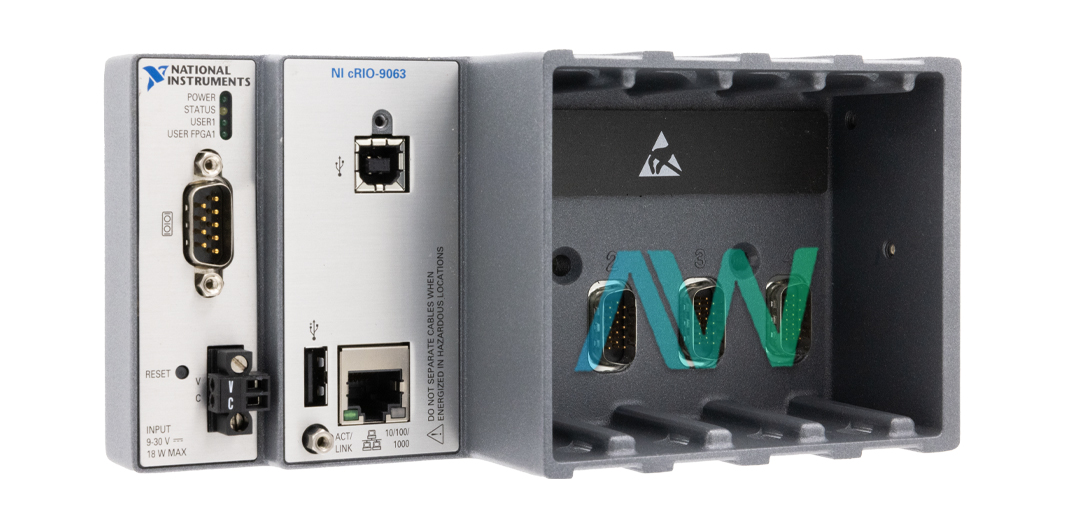

783830-01 cRIO-9063 Embedded cRIO Controller | Apex Waves | Image

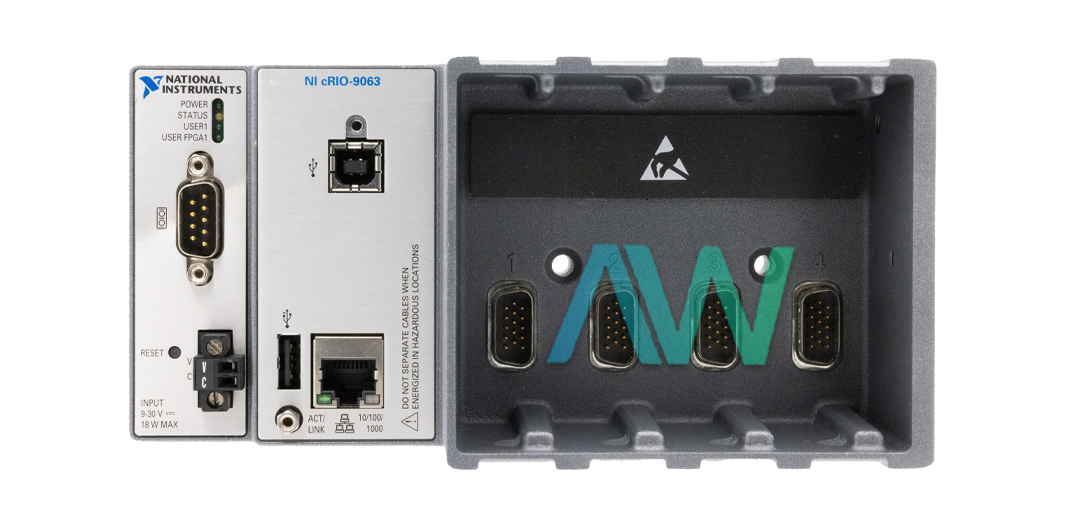

783830-01 cRIO-9063 Embedded cRIO Controller | Apex Waves | Image
783830-01 New
783830-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

783830-01 cRIO-9063 Embedded cRIO Controller | Apex Waves | Image
783830-01 cRIO-9063 Embedded cRIO Controller | Apex Waves | Image
783830-01 New
783830-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 783830-01 CompactRIO Controller

The National Instruments 783830-01 CompactRIO Controller is a part of the cRIO-9063 Model series and is intended for advanced control and monitoring uses. With a 667 MHz dual-core CPU supported by 256 MB of DRAM and 512 MB of storage, this small, fanless embedded controller has a robust architecture. Its core functionality is augmented by a Zynq-7020 FPGA, providing flexibility and real-time processing capabilities.

Utilizing the NI Linux Real-Time OS, the 783830-01 provides a dependable and steady platform for a range of industrial automation applications. Its multiple connectivity options—a USB host port, a USB device port, a tri-speed RJ-45 Gigabit Ethernet port, and an RS-232 serial port—ensure easy integration with current systems.

This controller makes it easier to build and implement custom applications quickly because it supports LabVIEW 2014 SP1 or later, as well as the LabVIEW Real-Time Module and FPGA Module. Compatibility and seamless functioning with NI software and hardware components are guaranteed by the NI-RIO Device Drivers 14.5 or later.

The 783830-01 has 512 MB of nonvolatile memory and 256 MB of volatile DRAM memory, which is sufficient for demanding applications in terms of processing and storage. With auto-negotiation for the best communication rates, its network interface supports the Ethernet 10Base-T, 100Base-T, and 1000Base-T protocols.

Featuring an astounding accuracy of 5 ppm, the controller has an internal real-time clock. Moreover, it provides two USB 2.0 Hi-Speed ports, each capable of handling up to 480 Mb/s of data, to accommodate a range of peripheral connectivity requirements.

Users may accomplish sophisticated algorithm implementations and real-time processing jobs using its reconfigurable FPGA, which is based on the Xilinx Zynq-7000 All Programmable SoC and has 85,000 logic cells, 106,400 flip-flops, and 53,200 6-input LUTs. The controller additionally offers high-performance signal processing capabilities with 220 DSP slices and 4,480 kbits of accessible block RAM.

Part Number783830-01
Model NamecRIO-9063
Part TypeCompactRIO Controller
Processor Speed667 MHz
Processor Cores2
Memory (DRAM)256 MB
Nonvolatile Memory512 MB
FPGA Logic Cells85,000
DSP Slices220
Ethernet Speed10/100/1000 Mbps
ManufacturerNational Instruments
