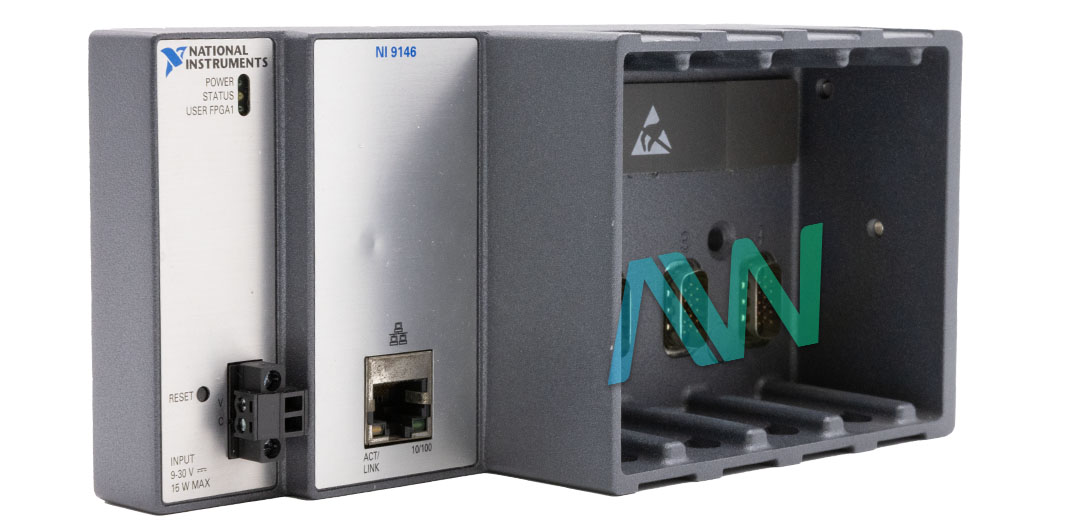

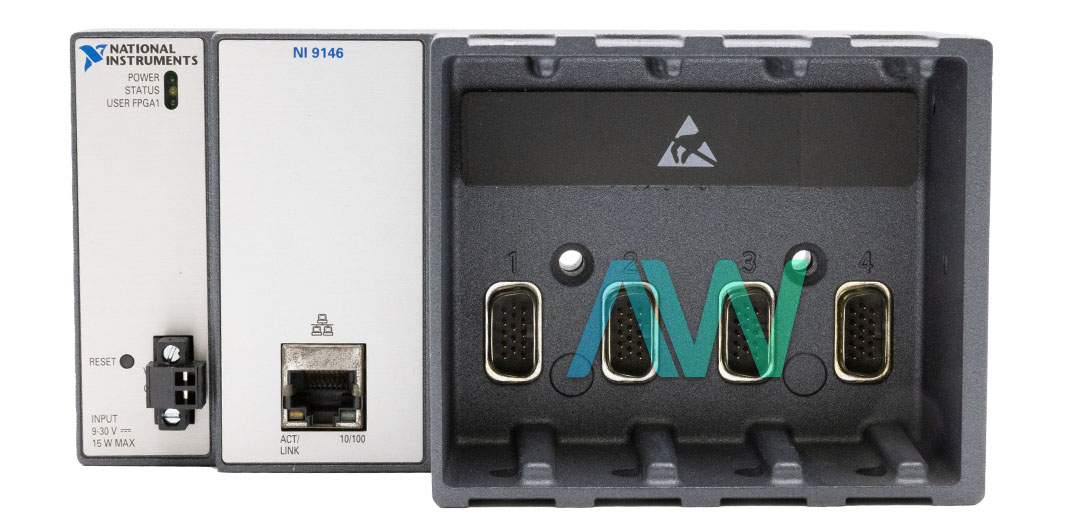

National Instruments NI-9146 CompactRIO Chassis
The NI 9146 (Part Number: 782445-01) Ethernet RIO has 4 slots and is designed to add distributed industrial C Series I/O to the user’s 10/100 Ethernet network. This CompactRIO Chassis provides a simple software, which allows the user to access their I/O with the NI RIO Scan Interface or the user-programmable FPGA from any Windows-based or LabVIEW Real-Time system. The NI-9146 does not need the LabVIEW Real-Time Module to access C Series I/O in Windows-based systems.
The LabVIEW FPGA Module can be utilized to program the Spartan-6 LX45 FPGA without experience in FPGA digital design. The FPGA on this Chassis offers dependable high-speed I/O, customizable timing, and advanced processing algorithms for the user’s high-speed control applications. Also, the user does not have to utilize the LabVIEW FPGA Module if they want to access the I/O only through the NI RIO Scan Interface.
The NI 9146 Ethernet RIO Chassis can be mounted horizontally on a flat, vertical, metallic surface like a panel or wall. For this configuration, the highest ambient temperature allowed for operation is 70 °C. Other mounting options for the NI-9146 are on a panel or wall in other configurations, on a non-metallic surface, in an enclosure, on a desktop, on a rack, or on a 35 mm DIN rail. The installation of the NI 9146 CompactRIO Chassis must have 1 inch on the top and bottom of the Chassis allowed for air circulation, as well as 2 inches in front of the modules for cabling clearance.
| Model | NI-9146 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782445-01 |
| Type | CompactRIO Chassis |
| Slots | 4 |
| FPGA | Spartan-6 LX45 |
| Bus Connector | Ethernet |
| Power Consumption | 15 W maximum |
| Weight | 22.7 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9146 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9146:
National Instruments NI-9146 Frequently Asked Questions
Question: What type of network compatibility does the NI-9146 Ethernet RIO have?
Answer: The chassis has IEEE 802.3 network compatibility.
Question: What is the power supply input range for the NI-9146?
Answer: The power supply input range is 9 V to 30 V.
Question: What are the communication rates of the chassis?
Answer: The communication rates of the NI-9146 are 10 Mbps, 100 Mbps, and auto-negotiated.
Question: Is the NI-9146 conformal coated?
Answer: No, this cRIO Chassis is not conformal coated.
