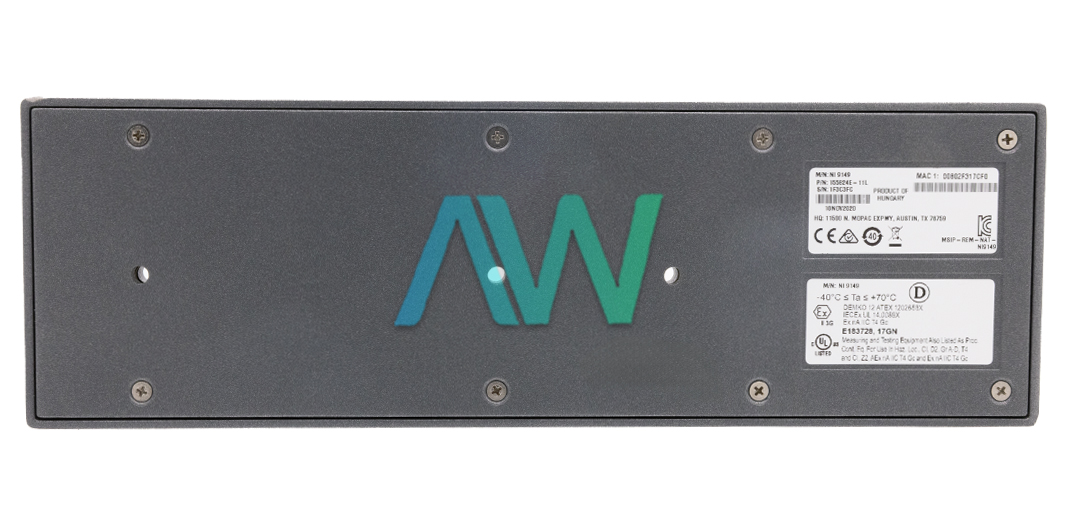

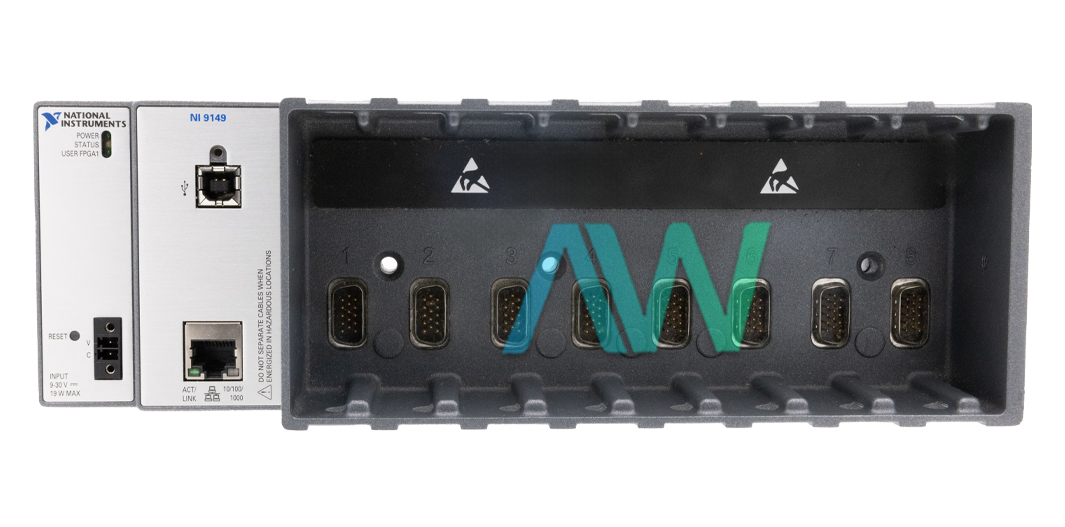

National Instruments NI-9149 Ethernet CompactRIO Chassis
The NI-9149 (Part numbers: 783376-01 and 783376-02) is an Ethernet CompactRIO Chassis manufactured by National Instruments. This model comes equipped with many useful features, including:
· 8- Slot Count Ethernet Bus Connector
· NI Linux Real-Time (32-bit)
· LabVIEW 2014 SP1, LabVIEW FPGA Module 2014 SP1 application software
· Industrial specs (50 g shock, 5 g vibration)
The NI 9149 is an Ethernet CompactRIO Chassis for NI C Series Modules. This Chassis is designed to connect with switches, routers, or already established Ethernet networks. The NI 9149 features 2 Ethernet ports with distinct communication pathways. The first port (Port 1) allows communication between the host computer and the real-time controller, while the second port (Port 2) is used to communicate with networks which are invisible to the host system. This model comes with NI Linux Real-Time (32-bit) operating system, LabVIEW 2014 SP1 or later, and LabVIEW FPGA Module 2014 SP1 or later application software.
The NI 9149 FPGA is a Xilinx Zynq-7000 reconfigurable FPGA. This Ethernet CompactRIO Chassis additionally is equipped with a high-speed USB 2.0 port with a maximum data rate of 480 Mpbs, as well as an Internal Real Time Clock accuracy of 5 ppm. The NI-9149 is a rugged extension Chassis designed for industrial deployment with its 5 g operating vibration and 50 g operating shock. The NI-9149 Ethernet CompactRIO Chassis’ dimensions are 10.74 in. × 3.47 in. × 2.45 in. This model weighs 36.97 oz. This model also has a gauge, which is 0.2 mm 2 to 2.1 mm2 (24 AWG to 14 AWG).
| Model | NI-9149 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783376-01 and 783376-02 |
| Type | CompactRIO Chassis |
| Bus Connector | Ethernet |
| Slots | 8 |
| FPGA | Zynq-7000 (Z-7020) |
| Dimensions | 10.74 x 3.47 x 2.45 in. |
| Weight | 36.97 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9149 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9149:
National Instruments NI-9149 Frequently Asked Questions
Question: What is the difference between the part numbers for the NI 9149?
Answer: Part number 783376-01 for the NI-9149 is not conformal coated, while part number 783376-02 is conformal coated.
Question: What drivers are used by the CompactRIO Chassis?
Answer: The drivers for the NI-9149 are LabVIEW 2014 SP1 or later, LabVIEW FPGA Module 2014 SP1 or later, and NI-RIO Device Drivers 14.5 or later.
Question: What type of FPGA does the NI-9149 have?
Answer: The Chassis has a Zynq-7000 (Z-7020) FPGA.
Question: Is the battery in the NI-9149 user-replaceable?
Answer: No, the battery is not user-replaceable.
