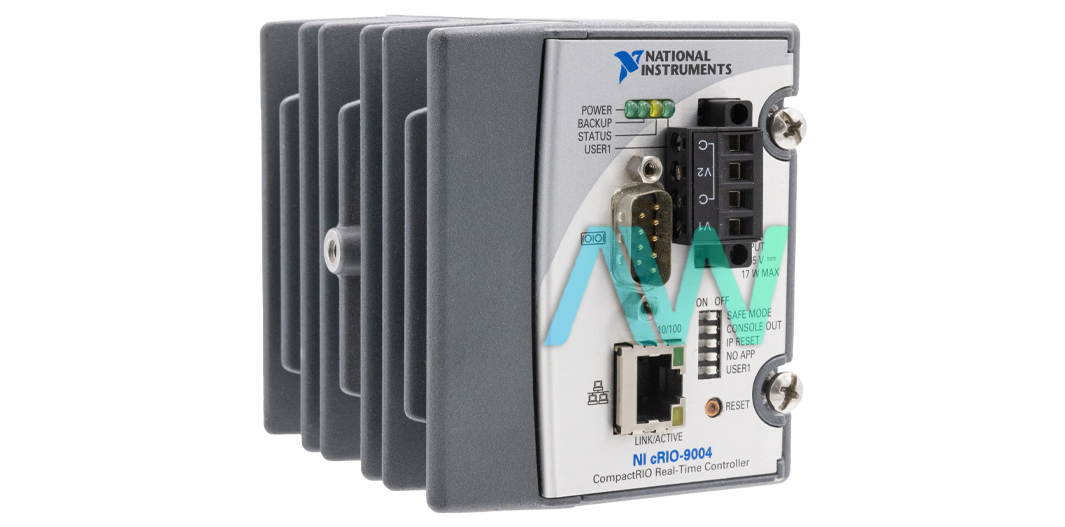

National Instruments cRIO-9004 CompactRIO Controller
The cRIO-9004 (Part number: 779055-01) is a CompactRIO Controller with Extended Temperature created by National Instruments. This model comes with exceptional features to enable quick and accurate measurements. The CRIO-9004 comes with nonvolatile built-in memory and a storage capacity of 512 MB. This model also has the DRAM value of 64 MB. The cRIO-9004 comes with the capability to consume very low power. This model has an operational temperature range of -40 to 70 degrees Celsius.

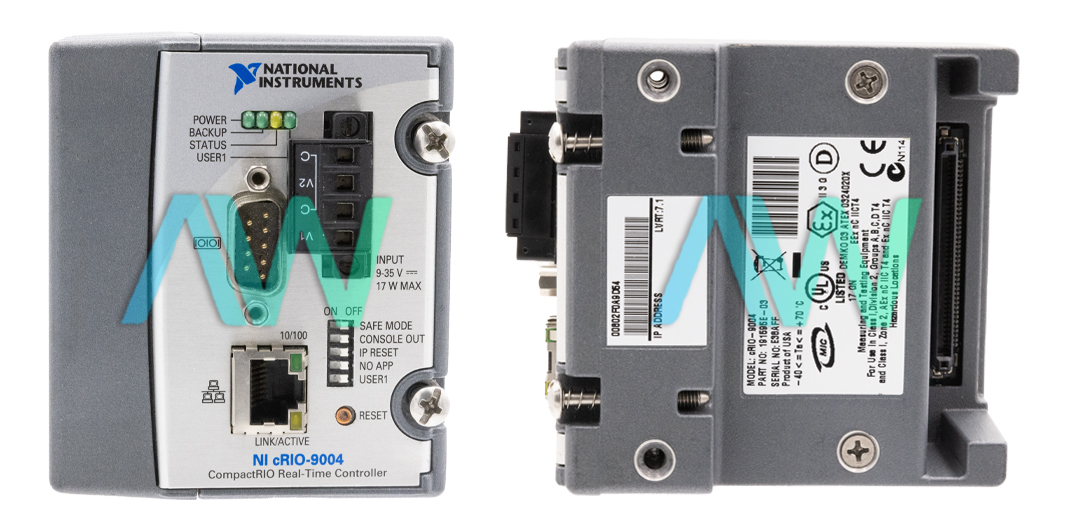

The front panel of the instrument offers various interfaces and optional capabilities. There is a built in RS-232 serial port and an RJ-45 Ethernet port. The serial port offers the maximum baud rate of 115,200 bps and has data bits from 5 to 8. It also has parity and flow control mechanisms. The user can perform controller communication with external devices. This model also provides valuable boot options. The user can configure the controller to launch an embedded stand-alone application.
The NI device is run using the NI-RIO driver software which can be programmed using software packages or application development environments (ADEs) such as LabVIEW FPGA Module or LabVIEW Real-Time Module. It can be configured using the Measurement & Automation Explorer (MAX) tools.
The cRIO-9004 has a recommended storage temperature range of -40 °C to 85 °C, non-condensing operating and storage humidity ranges of 10% RH to 90% RH and 5% RH to 95% RH, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz. The NI cRIO-9004 Controller has the dimensions of 90.2 x 77.3 x 88.1 in millimeters and weighs around 488 grams. The Controller operates with an NEC Class 2 power source, with a recommended power supply of 48 watts. This model has the maximum power consumption of seven watts.
The cRIO-9004 Controller is no longer available from National Instruments, but it will remain available in perpetuity for both purchase or repairs with Apex Waves!
| Model | cRIO-9004 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779055-01 |
| Series | CompactRIO |
| Part Type | CompactRIO Extended Temperature Controller |
| Network Interface | 10Base-T and 100Base-TX Ethernet |
| Nonvolatile Memory | 512 MB |
| DRAM | 64 MB |
| Network Interface | 10Base-T and 100Base-TX Ethernet |
| Max Cabling Distance | 100 m/Segment |
| Network Compatibility | IEEE 802.3 |
| Screw Terminal Gauge | 20 AWG to 14 AWG |
| Dimensions | 3.6 in. × 3.0 in. × 3.5 in. (90.2 mm × 77.3 mm × 88.1 mm) |
| Weight | 17.2 oz (488 g) |
| Warranty | Three Year Warranty |
| cRIO-9004 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cRIO-9004:
National Instruments cRIO-9004 Frequently Asked Questions
Question: Does the cRIO-9004 have a built-in fan?
Answer: No, the cRIO Controller is a fanless device.
Question: How many supply inputs does the NI cRIO-9004 have?
Answer: The device has dual DC supply inputs.
Question: How much internal nonvolatile storage does the controller have?
Answer: The NI cRIO-9004 has 512 MB of internal nonvolatile storage.
