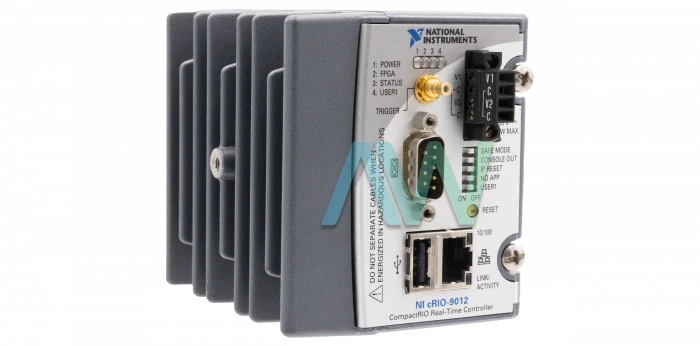

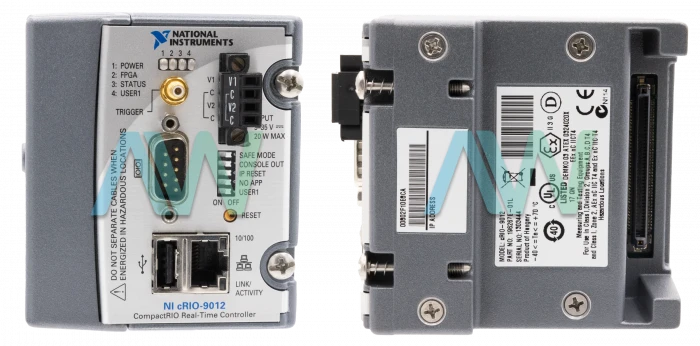

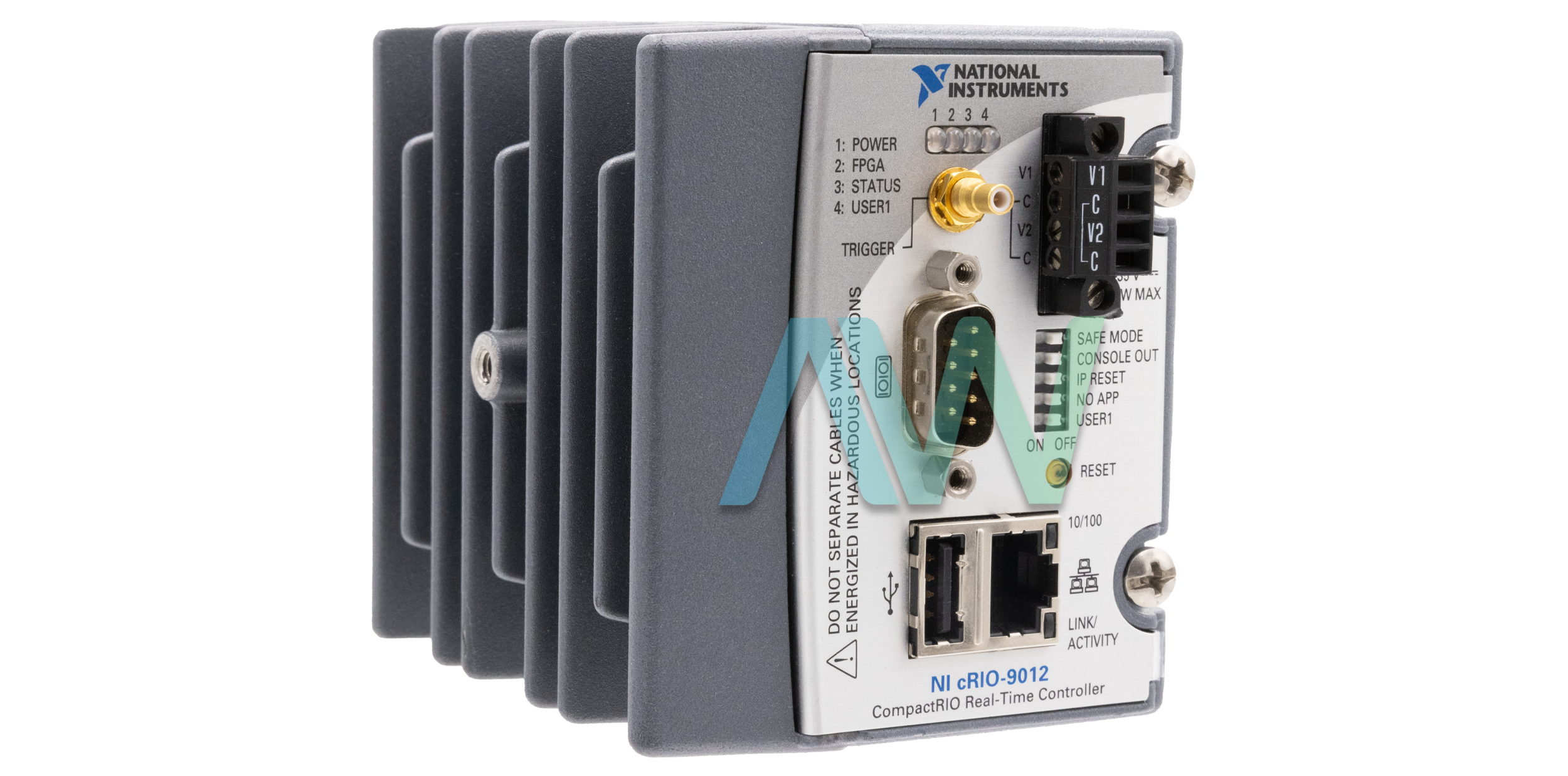

National Instruments cRIO-9012 CompactRIO Controller
The cRIO-9012 (Part number: 779563-01) is a CompactRIO Controller by National Instruments. This Controller is viable for enhanced monitoring and control applications. This model has many ports, which includes one USB port and one Ethernet port. There is also one serial port available in this controller. The NI cRIO-9012 can be combined with a CompactRIO Chassis, which results in a system that can operate with C Series I/O modules. The cRIO 9012 is equipped with an industrial 400 MHz Free-scale MPC5200 processor.
The cRIO NI 9012 is designed for low power consumption, consistent, and extreme roughness. It is featured with dual 9 to 35 VDC supply inputs. This VDC range helps deliver isolated power to the CompactRIO Chassis/modules. The CompactRIO NI cRIO-9012 can receive 6 to 35 VDC power supply inputs during operation, which helps the Controller operate for extended time periods in remote applications with the use of a solar power or a battery. The Controller can operate as an individual control for logging applications. The NI device has a maximum power input of 20 W, a voltage input range of 9 V to 35 V (on power-up) and 6 V to 35 V (after power-up), and a recommended operating temperature range of -40 °C to 70 °C.
The NI cRIO-9012 is structured with 64 MB of DRAM memory, and has a maximum data rate of 12 MB/s per second. It is also furnished with a minimum of 128 MB of nonvolatile storage. The device is equipped with a SMB connector, a RS-232 serial port, a USB port, and a RJ-45 Ethernet port. The Ethernet port has 10/100 Mbits per second. This port enables the Controller to execute programmatic communication through a network and further enables the Controller to communicate with the built-in files and web servers. The high-speed USB host port provides extra storage capacity to the Controller. It enables the NI cRIO-9012 to connect with external USB-based storage media. The external USB-based storage media includes flash drives and hard drives. It is workable for embedded logging applications that need extended storage. The device weighs 17.2 oz., and measures 3.6 x 3.0 x 3.5 in. in dimensions.
Apex Waves stocks, sells, and repairs legacy hardware in perpetuity. While the cRIO-9012 CompactRIO Controller is no longer available with National Instruments, it will remain available with Apex Waves!
| Model | cRIO-9012 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779563-01 |
| Type | CompactRIO Controller |
| Memory | 128 MB Minimum |
| DRAM | 64 MB |
| Maximum Data Rate | 12 Mb/s |
| Ethernet Port | 10/100Base-TX |
| Serial Port | RS-232 |
| Power Supply Input Range | 9 to 35 VDC |
| Power Consumption | 6 W Max |
| Backup Power Input? | Yes |
| Remote Panel Web Server? | Yes |
| FTP Server? | Yes |
| Dimensions | 3.6 x 3.0 x 3.5 in. |
| Weight | 17.2 oz. |
| Warranty | Three Year Warranty |
| cRIO-9012 Manual | User Manual and Maintenance Manual Available for Download |
| Price | For Pricing, Request a Quote Today! |
Associated part numbers for cRIO-9012:
National Instruments cRIO-9012 Frequently Asked Questions
Question: Why am I not able to connect to my cRIO-9012 in MAX or LabVIEW?
Answer: If the cRIO Controller is not connecting, remove all unnecessary add-ons in MAX. This should allow the extra room to connect it.
Question: What type of Ethernet port does the NI Controller use?
Answer: The NI cRIO-9012 uses a 10/100BASE-T Ethernet port with embedded web and file servers.
Question: What do I need to do to set the exact time on a controller using RT Set Date and Time?
Answer: To synchronize the time with your cRIO-9012, you will need to use Real Time-Shared Variables.
