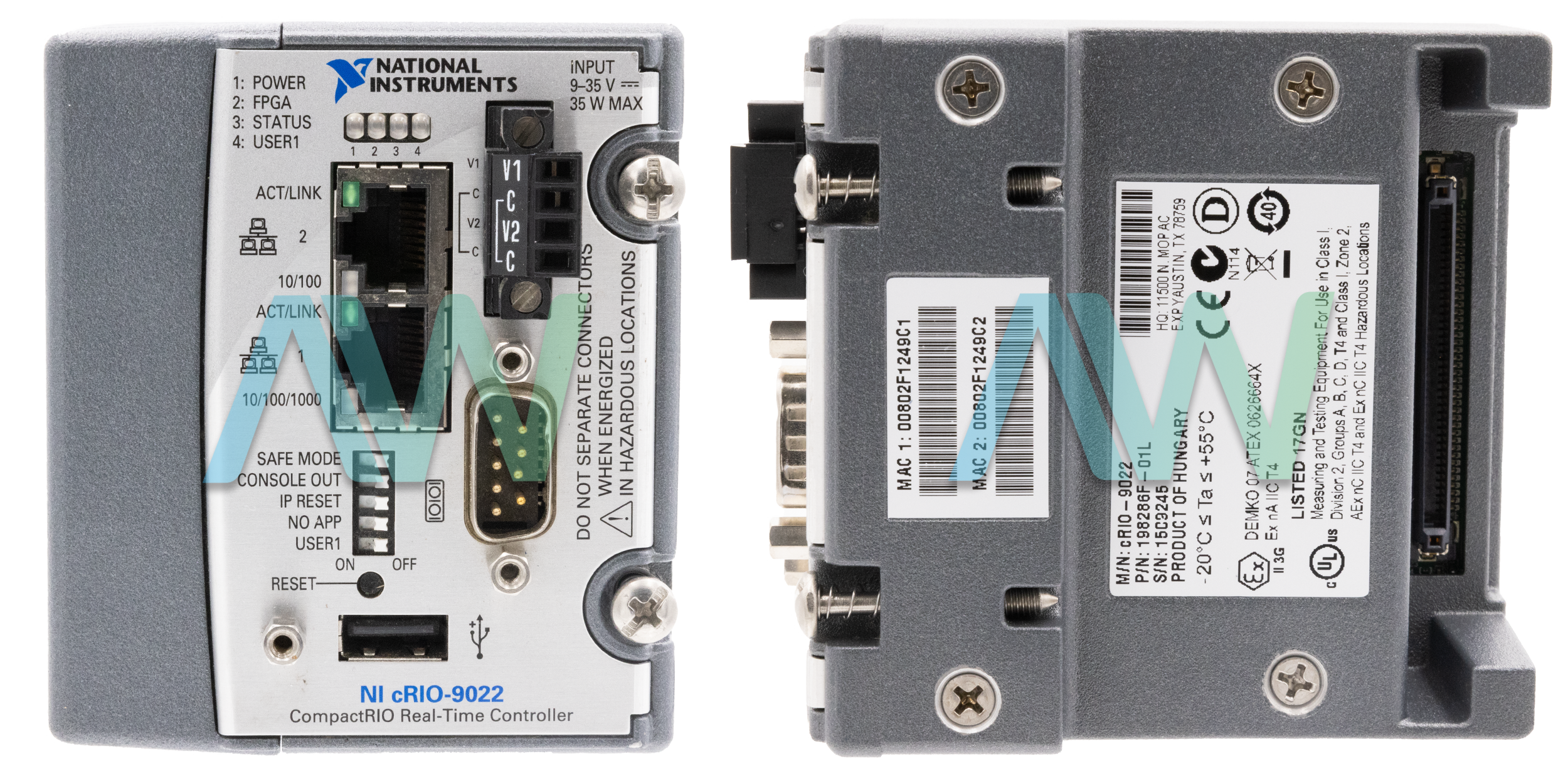

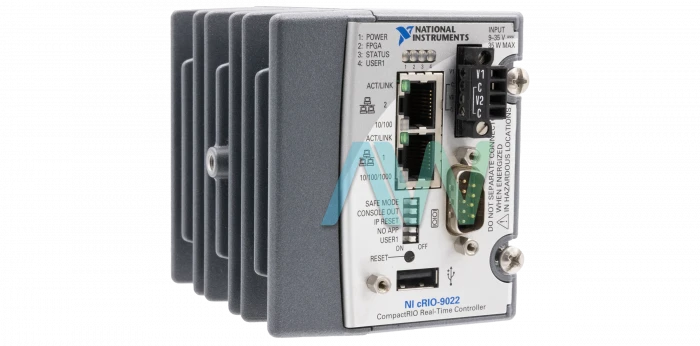

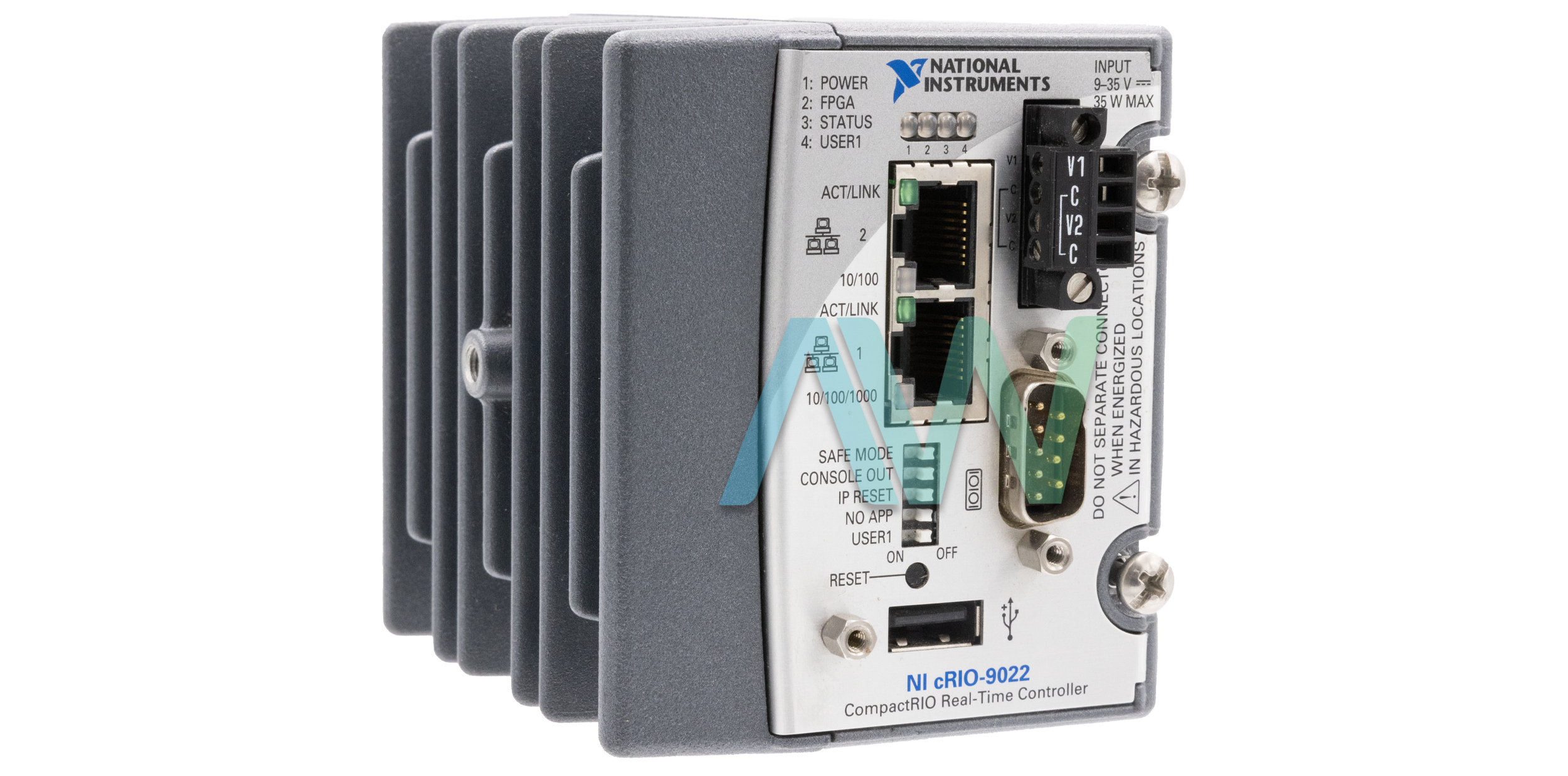

National Instruments cRIO-9022 CompactRIO Controller
The cRIO-9022 (Part number: 780718-01) is a CompactRIO Controller designed by National Instruments. This model is a member of the CompactRIO PAC (programmable automation controller) platform. It is structured with an industrial 533 MHz Free-scale MPC8347 processor and is workable for deterministic and consistent real-time applications. The cRIO 9022 comes with 256 MB of DDR2 RAM and is embedded with 2 GB nonvolatile storage. This can be used for storing programs and logging data. The Controller comes with a fault-tolerant file system. This system provides enhanced reliability for data logging applications. The NI cRIO-9022 meets the EMC standards for electrical equipment. These standards are essential for monitoring, control, and lab use. These standards provide sensible protection from harmful intrusions.
The NI cRIO 9022 needs a 35 VDC external power supply to filter and control the provided power. It also provides power for the C Series modules. The Controller has a main power input, V1, and a subordinate power input, V2. It pulls the power from the supply with the higher voltage. The NI cRIO-9022 is structured with one layer of reverse-voltage protection. This layer ensures the power supply is powered off and helps install the ferrite on the positive and negative leads of the supply.
The NI cRIO-9022 system clock synchronizes with the internal high-precision real-time clock during startup. This change provides time-stamp data to the Controller. The internal RTC is used to correct the drift of the system clock. The cRIO-9022 comes with a USB port to support external storage devices. It also includes an RS-232 serial port. This port helps connect the input or display devices. It is also embedded with two Ethernet ports.
Apex Waves buys, sells, and repairs end-of-life hardware. While the cRIO-9022 is no longer available from the manufacturer National Instruments, the CompactRIO Controller will remain available with Apex Waves in perpetuity!
| Model | cRIO-9022 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780718-01 |
| Type | CompactRIO Controller |
| Memory | 2 GB (Nonvolatile) |
| DRAM | 256 MB |
| Maximum Data Rate | 480 Mb/s |
| Maximum Current | 500 mA |
| Recommended Power Supply | 55 W (Secondary), 35 VDC (Maximum) |
| Power Consumption | 17 W |
| Voltage Requirement | 9 V to 35 V (On Powerup) |
| Securement Type | Screw Flanges Provided |
| Ingree Protection | IP40 |
| Operating Temp | -20 °C to 55 °C |
| Storage Temp | -40 °C to 85 °C |
| Weight | 21.5 oz.(609 g) |
| Warranty | 2-3 Year Warranty |
| cRIO-9022 Manual | User Manual and Maintenance Manual Available for Download |
| Price | For Pricing Information, Request a Quote Today! |
Associated part numbers for cRIO-9022:
National Instruments cRIO-9022 Frequently Asked Questions
Question: Can I use USB external storage on the cRIO-9022?
Answer: Yes, external USB storage can be used with the cRIO Controller.
Question: What serial port does the NI Controller use?
Answer: The NI cRIO-9022 has an RS232 serial port for connection to peripherals.
Question: What version of LabVIEW does the cRIO-9022 controller support?
Answer: The controller supports LabVIEW Real Time 8.5.1.
