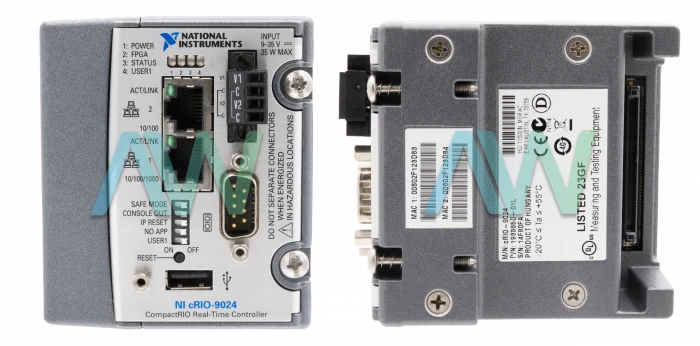

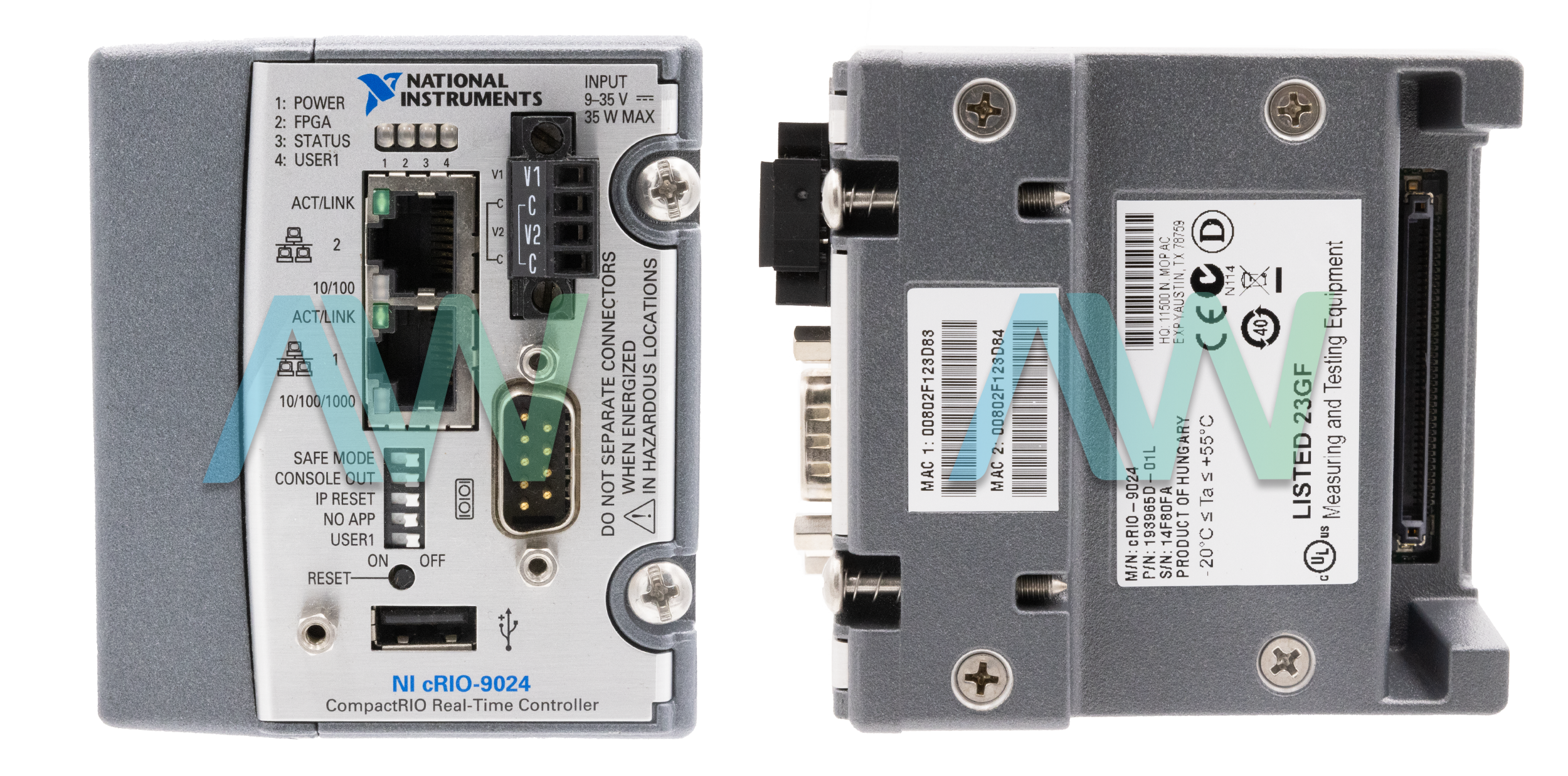

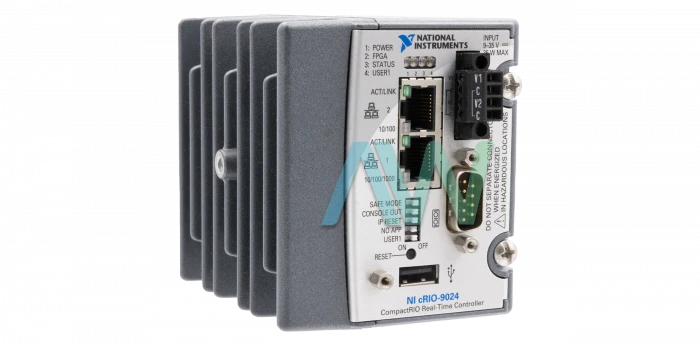

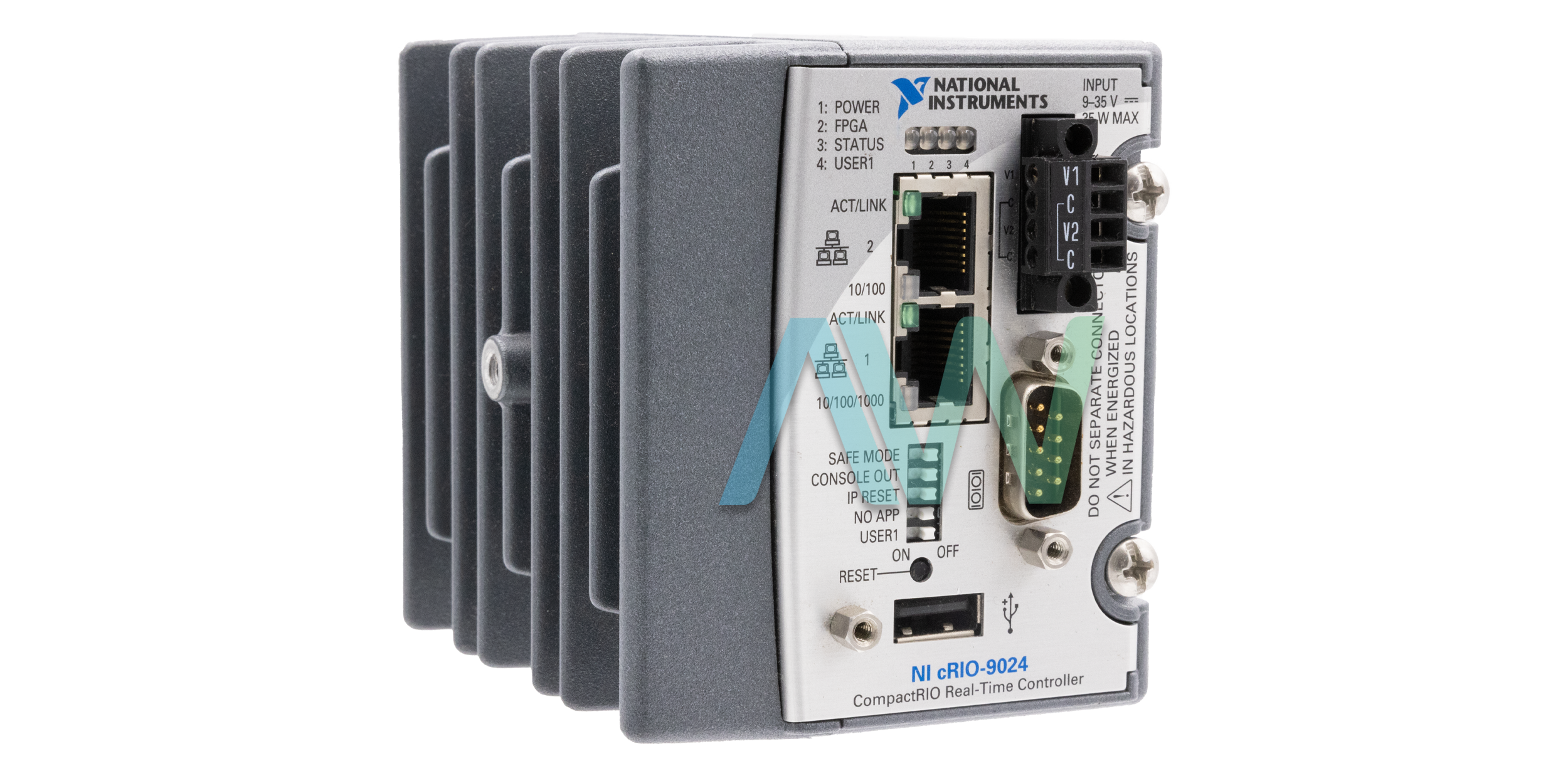

National Instruments cRIO-9024 CompactRIO Controller
The cRIO-9024 (Part numbers: 781174-01, 193965E-01L) is a high-performance controller by National Instruments. It can easily be installed on a chassis. The controller features two Ethernet ports; the primary Ethernet port is used to establish an Ethernet network using a CAT-5 or better Ethernet cable. The controller can directly link to a host computer if a network is not available. To prevent data loss, the cable length should be less than 100 meters. The cRIO-9024 has a secondary Ethernet port, which must be configured with a static IP address on a different subnet using NI MAX.
The NI cRIO-9024 runs a power-on self-test (POST). The status LEDs and power LED turn on during POST. The status LED turns off to indicate POST completion. The controller initially boots into safe mode because no software is installed. It attempts to automatically connect to a network using DHCP. If DHCP is unavailable, it links to the network using a link-local IP address. This module is powered by an 800 MHz CPU, and is equipped with 512 MB DRAM. In addition, it has 4 GB of nonvolatile storage memory.
The NI cRIO-9024 is embedded with an RS-232 DTE serial port. This port supports baud rates from 600 bps to 230,400 bps with data bit ranges from 5 to 8. The port flow control options include DTR/DSR, RTS/CTS, XON/XOFF, and none. The NI cRIO-9024 also features a high-speed USB port, with a maximum data rate of 480 Mb/s and a current draw of up to 500 mA.
The cRIO-9024 is Legacy hardware that is no longer available from the manufacturer National Instruments (NI), but the CompactRIO Controller will remain available in perpetuity for purchase or repairs with Apex Waves!
| Model | cRIO-9024 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781174-01, 193965E-01L |
| Type | CompactRIO Controller |
| Processor | 800 MHz |
| Memory | 4 GB Nonvolatile |
| DRAM | 512 MB DDR2 |
| Ethernet Ports | 2 (1 × 10/100/1000, 1 × 10/100) |
| Maximum USB Data Rate | 480 Mb/s |
| Maximum USB Current | 500 mA |
| Power Consumption | 17 W (controller only), 35 W (with 8 modules) |
| Operating Temperature Range | -20 °C to 55 °C |
| Weight | 21.5 oz (609 g) |
| cRIO-9024 Manual | User Manual and Specifications Available for Download |
| Price | Request a Quote For Additional Information |
Associated part numbers for cRIO-9024:
National Instruments cRIO-9024 Frequently Asked Questions
Question: I am using the cRIO-9024 to generate a PWM signal but the frequency is too low and appears to be inaccurate. What can I do?
Answer: Check to see if your digital output card supports PWM specialty digital mode and make sure the timed loop is synchronized to scan engine.
Question: Can I use a USB-232/4 with a cRIO-9024?
Answer: You cannot use a USB-232/4 with the cRIO Controller, due to the differences in software stack on the cRIO-9024 and a PC.
Question: Does the NI cRIO-9024 allow for remote user interfacing?
Answer: Yes, the controller has dual Ethernet ports with embedded web and file servers which will allow for remote user interfacing.
