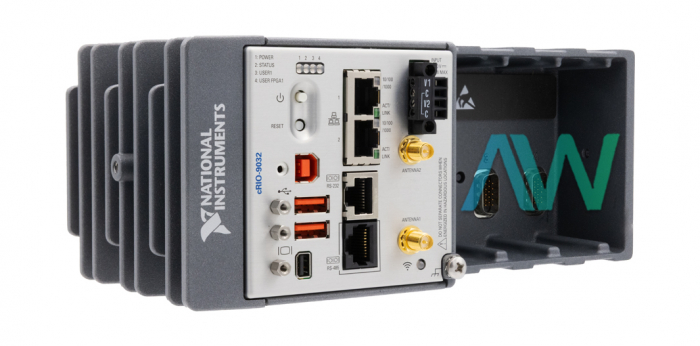

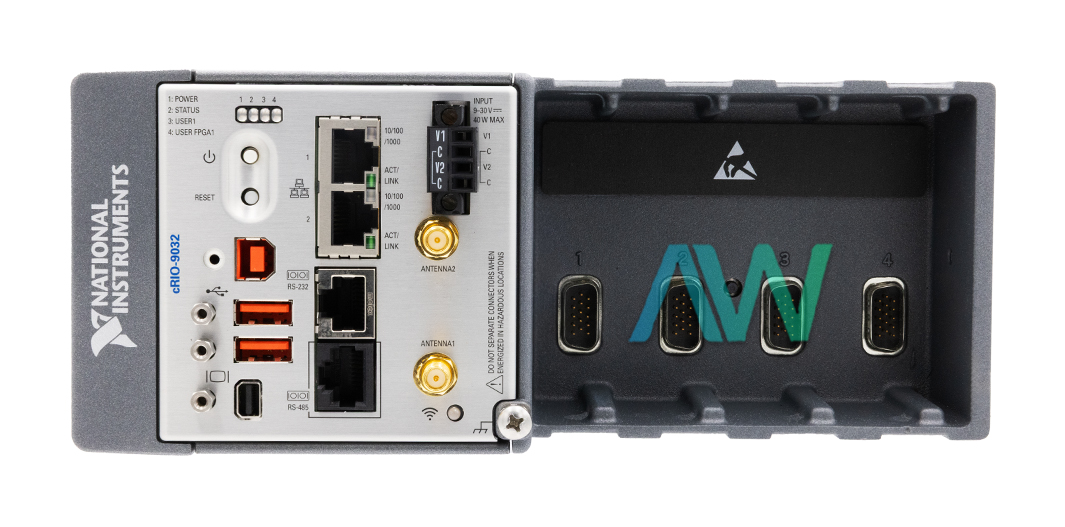

National Instruments cRIO-9032 CompactRIO Controller
The cRIO-9032 (Part number: 784548-01) is an embedded, 4-slot CompactRIO Controller by National Instruments. This model is equipped with 2 inputs. The V1 input can be used for long lines and short lines, as well as DC distributed networks. The V2 input can be used only for short lines. This model has a maximum power usage of 40 W and consumes a typical standby power around 3.4 W at 24 VDC input. A 100 W power supply is recommended for 24 VDC. The NI cRIO-9032 is featured with an 8 GB hard drive. This model is equipped with a 1.33 GHz dual-core processor. The Controller is structured with 2 GB DRAM. The cRIO 9032 is also featured with dual-band, 802.11 a/b/g/n WiFi communications. The wireless frequency band is 2.4 Ghz/5 GHz. The wireless capability on this Controller helps the model connect to HMIs and other devices. It can also develop the cloud WiFi for communications.
The NI cRIO 9032 driver software is NI CompactRIO Device Drivers August 2016 or later. The screw terminal wiring gauge on this Controller is 0.5 mm 2 to 2.1 mm2 (20 AWG to 14 AWG). It comes with copper conductor wire. The wire stripped length is around 0.24 inches. This CompactRIO Controller has insulation stripped from the end. The screw terminal wiring can operate under temperature range up to 85 °C. 0.20 Nm to 0.25 Nm torque is required for screw terminals. There is one wire on each screw terminal.
| Model | cRIO-9032 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 784548-01 |
| Type | CompactRIO Controller |
| CPU | Intel Atom E3825 |
| CPU Frequency | 1.33 GHz |
| Network/Ethernet Ports | 2 |
| Dimensions | 8.64 x 3.47 x 4.67 in. |
| Weight | 3 lbs., 14 oz. |
| Warranty | 2-3 Year Warranty |
| cRIO-9032 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cRIO-9032:
National Instruments cRIO-9032 Frequently Asked Questions
Question: Do you need to have LabVIEW 2015 installed to use the cRIO-9032?
Answer: Yes, you must have LabVIEW 2015 SP1 or later installed before using the cRIO-9032.
Question: Do you need to connect the cRIO-9032 grounding terminal?
Answer: Yes, you must connect the cRIO-9032 grounding terminal to the grounding electrode system of the facility before using.
Question: What are the external power supply requirements for the cRIO-9032?
Answer: The cRIO-9032 requires a 9 V to 30 V external power supply.
cRIO-9032 PDF Manuals
CRIO-9032-LETTER-OF-VOLATILITY.PDF
CARRYING-HANDLE-FOR-COMPACTRIO-AND-COMPACTDAQ-USER-GUIDE.PDF
COMPACTRIO-CONTROLLERS-PRODUCT-FLYER.PDF
CRIO-9032-LETTER-OF-VOLATILITY.PDF
INDUSTRIAL-RACK-MOUNT-KIT-FOR-COMPACTRIO-AND-COMPACTDAQ-INSTALLATION-GUIDE.PDF
MODULE-IMMOBILIZATION-ACCESSORY-INSTALLATION-GUIDE.PDF
NI-CRIO-9032-GETTING-STARTED-GUIDE.PDF
