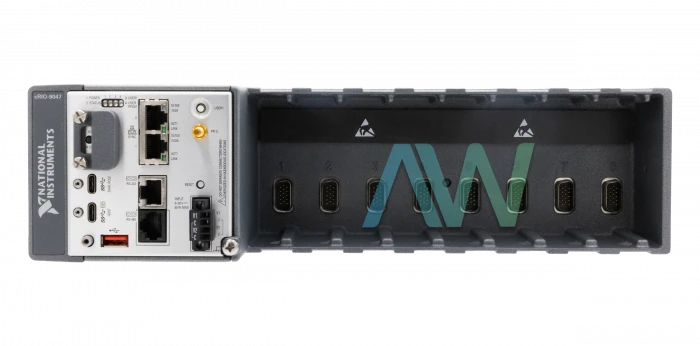

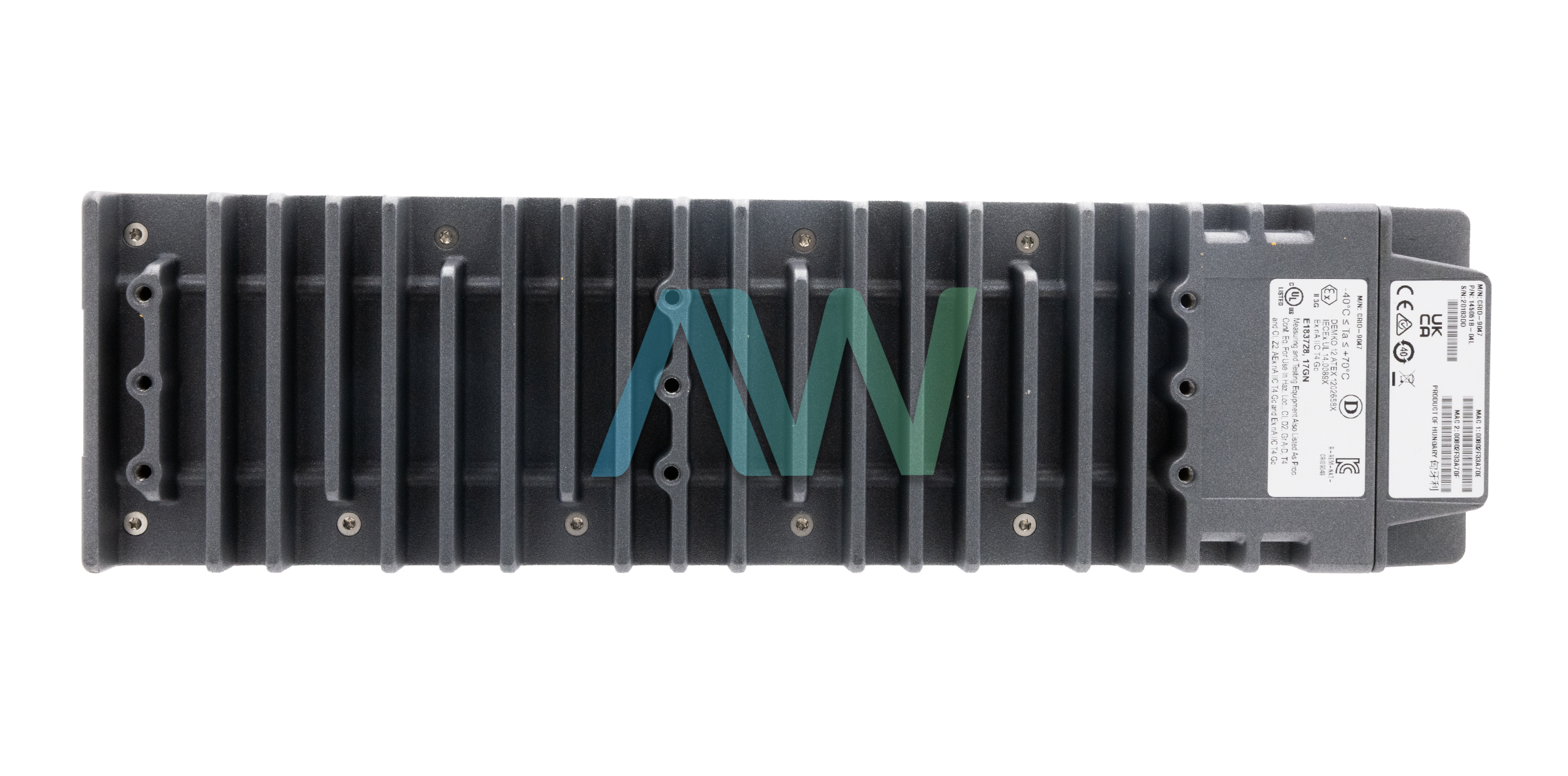

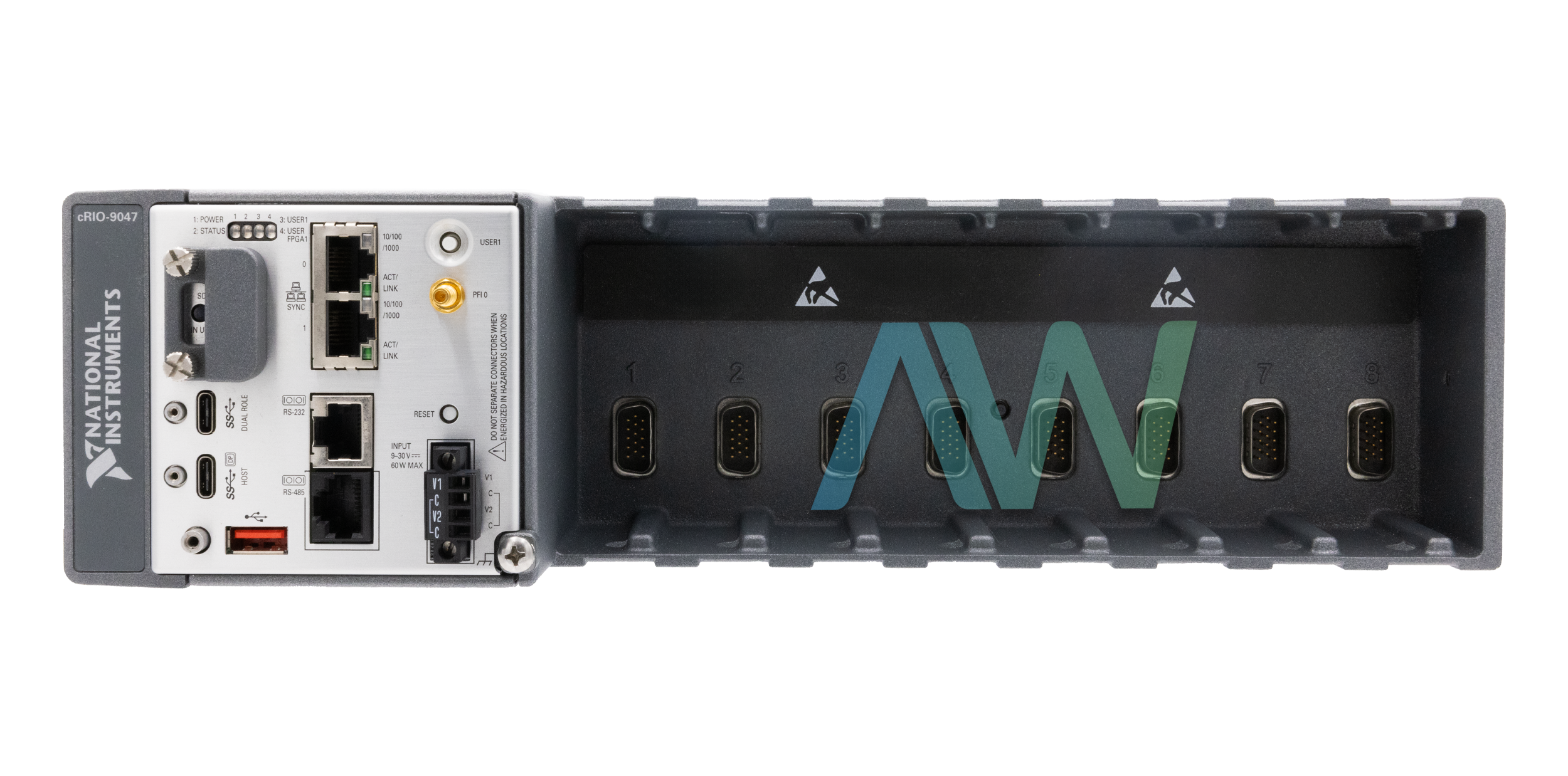

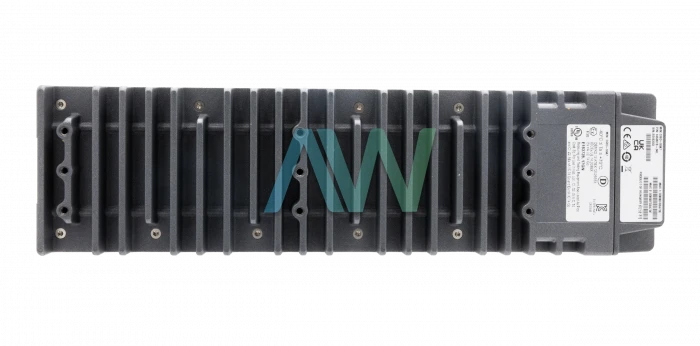

National Instruments cRIO-9047 CompactRIO Controller
The cRIO-9047 (Part Numbers: 785621-01 and 785621-02) is a CompactRIO Controller from National Instruments with a 4-core Intel Atom E3940 CPU. Equipped with 2 Network/Ethernet Ports, this controller is compatible with IEEE 802.3 and has a maximum cabling distance of 100 m/segment. The two Serial Ports of the device, RS-232 and RS-485, have maximum baud rates of 115,200 b/s and 230,400 b/s respectively.
This cRIO Controller features 4 GB of nonvolatile memory, and the volatile memory has a max theoretical data rate of 12.8 GB/s. There are also three USB ports on the cRIO-9047, two host ports (USB Type-A and USB Type-C) and a USB Type-C port that is a dual role port (as either device or host). The maximum data rates for the USB Type-A port is 480 Mb/s. For the USB Type-C ports, the max data rate is 5 Gb/s.
The reconfigurable FPGA of the cRIO-9047 is a Xilinx Kintex-7 7K70T type with 4,860 kbits of available block RAM. When the user targets LabVIEW to a FPGA gadget, they can approach just to the LabVIEW VIs and capacities that bode well on the FPGA gadget. One possible scenario is that a regular FPGA gadget does not approach a plate drive, so File I/O capacities are not accessible on the Functions palette when the user focuses on that gadget.
When unloaded, the physical dimensions of the cRIO-9047 measure 12.94 in. × 3.47 in. × 4.77 in. (328.8 mm × 88.1 mm × 121.2 mm) and weighs 4 lbs, 15 oz (2,250 g). The operating temperature range is -40 °C to 70 °C with a noncondensing operating humidity of 10% RH to 90% RH. For storage, the temperature range is -40 °C to 85 °C with a noncondensing storage humidity of 5% RH to 95% RH. These temperature and humidity ranges were tested in accordance with IEC 60068-2-1, IEC 60068-2-2, and IEC 60068-2-30.
| Model | cRIO-9047 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 785621-01 and 785621-02 |
| Type | CompactRIO Controller |
| Slots | 8 |
| FPGA | Kintex-7 70T |
| Ethernet Ports | 2 |
| Processor Core | Quad Core Intel Atom |
| CPU Frequency | 1.60 GHz |
| RAM Storage | 4 GB |
| Programming Method | LabVIEW FPGA, NI-DAQmx |
| GigE Vision Support? | Yes |
| TSN Enabled | Synchronization, Deterministic Communication |
| Operating Temp Range | -40 °C to 70 °C |
| Dimensions | 12.94 x 3.47 x 4.77 (328.8 mm × 88.1 mm × 121.2 mm) |
| Weight | 4 lbs., 15 oz. (2,250 g) |
| Warranty | 2-3 Year Warranty |
| cRIO-9047 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for cRIO-9047:
National Instruments cRIO-9047 Frequently Asked Questions
Question: Why does the NI cRIO-9047 have two part numbers?
Answer: One variation of the cRIO Controller has conformal coating (Part Number: 785621-02), while the second variation (Part Number: 785621-01) does not have conformal coating.
Question: Why am I getting spam in the system log of the cRIO-9047 when running C++?
Answer: If you’re getting spam when running C++, it’s usually because you have disabled the LabVIEW Project Access on the cRIO-9047.
Question: Where would I use the VISA functions available on the controller?
Answer: You should be able to use the VISA functions with the serial port of your NI cRIO-9047.
Question: How many USB ports does the cRIO-9047 have?
Answer: There are 3 USB ports on the CompactRIO Controller.
