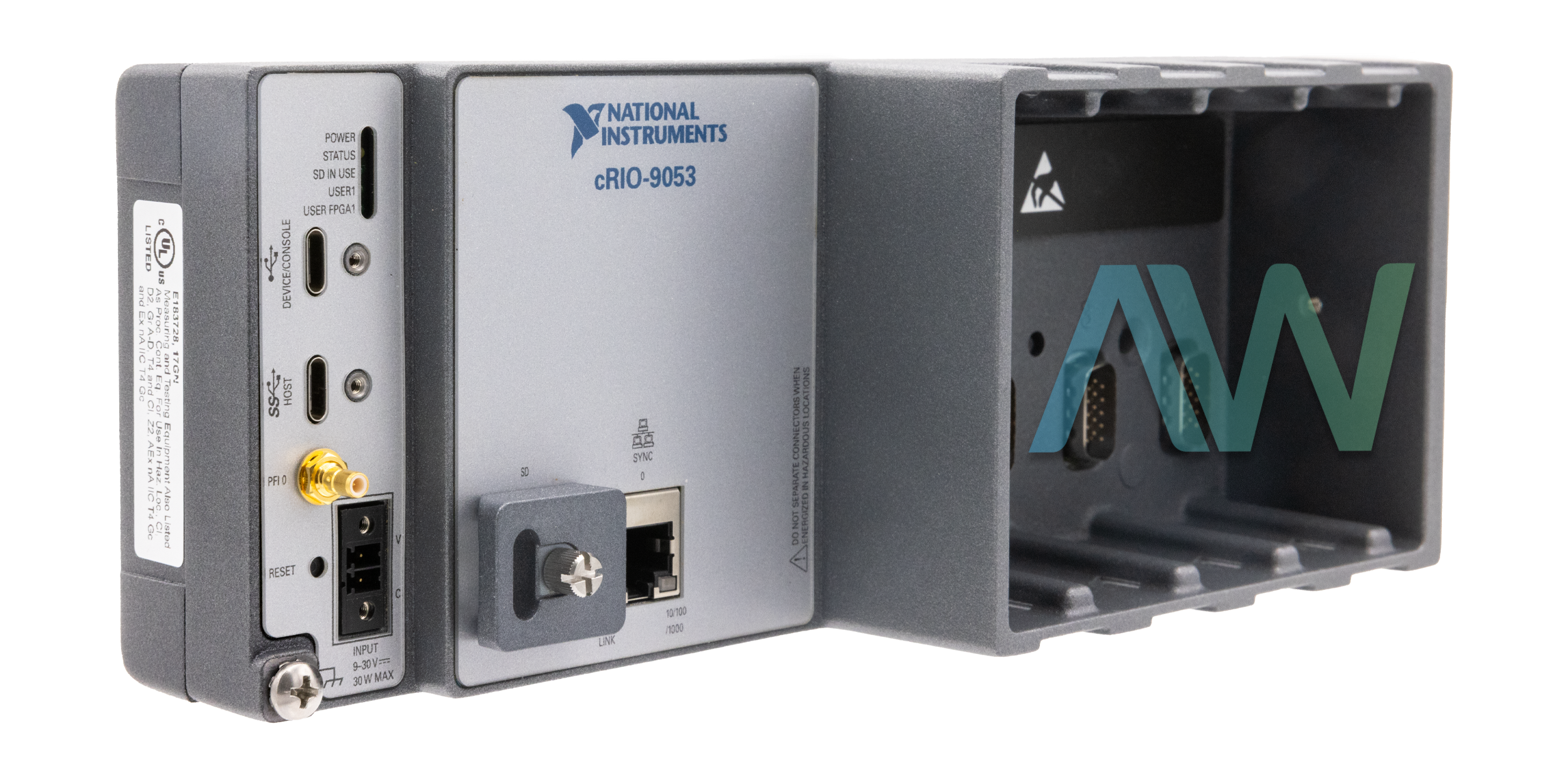

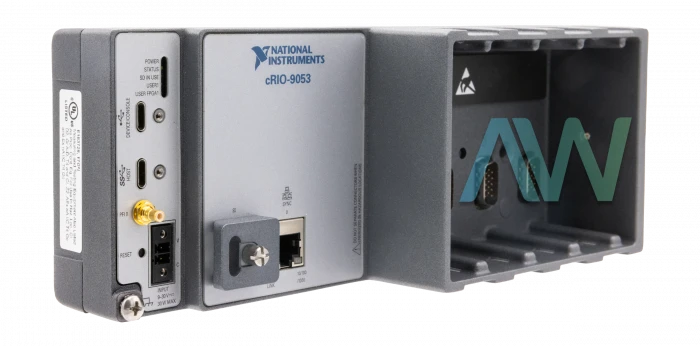

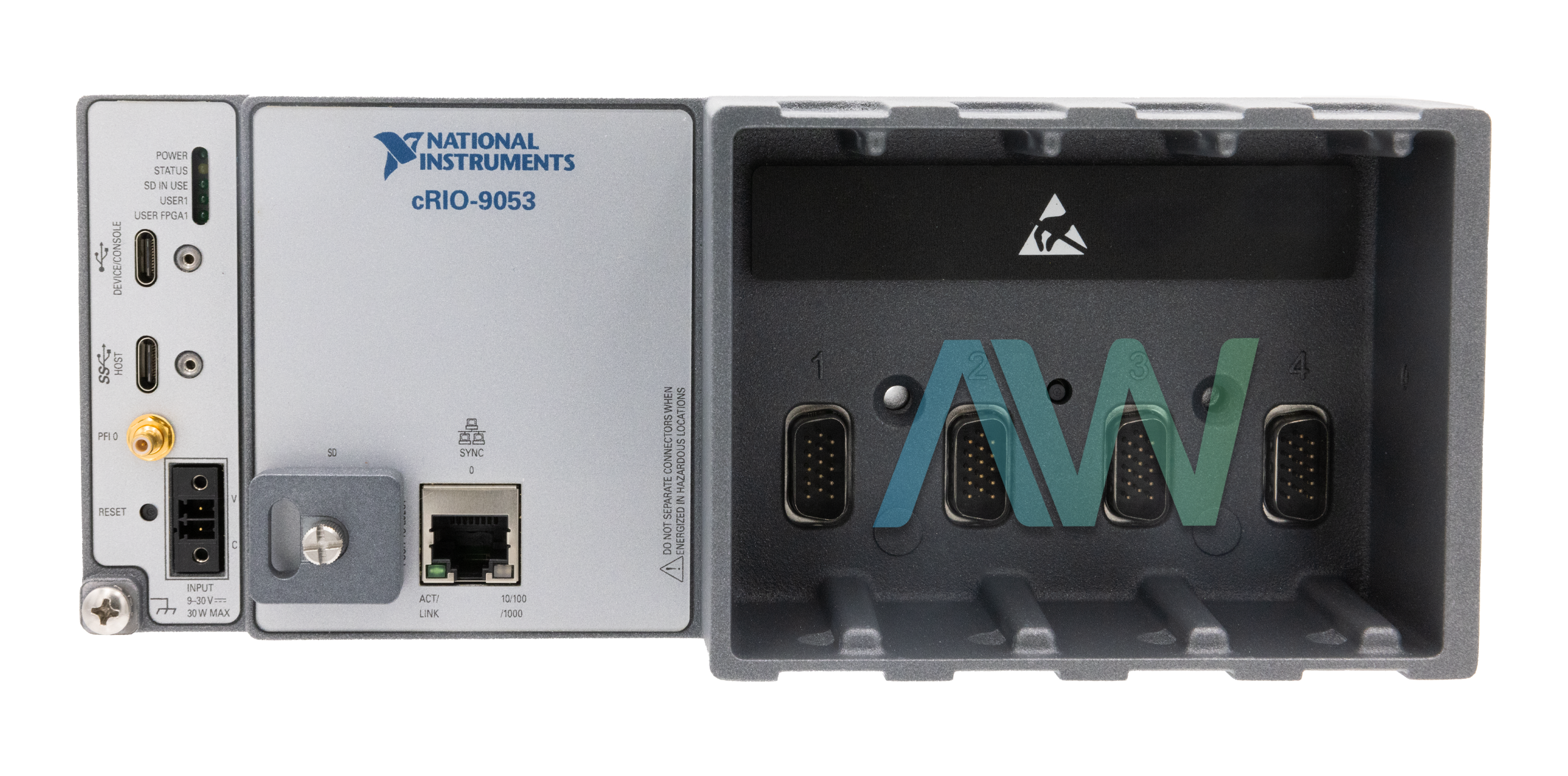

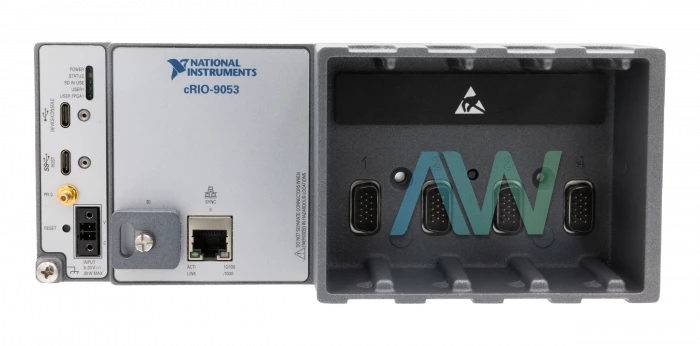

National Instruments cRIO-9053 CompactRIO Controller
Featured with a Dual-Core CPU and 4 GB internal storage, the NI cRIO-9053 (Part Number: 786424-01) is a CompactRIO Controller from National Instruments. This 4-Slot model has a rugged construction and can be deployed in a variety of scenarios for control and data acquisition applications. In addition to an Intel Atom processor, the cRIO-9053 has an Artix-7 FPGA. This Controller is designed to accommodate a total of 4 C Series modules. You can use four similar or different modules for creating a fully customized control scheme, according to the nature and requirement of your application.
The NI cRIO-9053 utilizes TSN to provide you with deterministic communications and comes with 1 USB 2.0 device port, 1 USB 3.1 host port, 1 Gigabit Ethernet port, 1 SD card slot, and 1 trigger line. The availability of a MicroSD card slot enables you to store important data on the device. The National Instruments cRIO-9053 CompactRIO Controller is designed to run with Linux Real-Time operating system. The I/O available on this CompactRIO Controller can be accessed through the LabVIEW FPGA module or with the NI-DAQmx driver software.
This CompactRIO Controller comes equipped with a 1.33 GHz 2-Core Intel Atom CPU. The volatile memory incorporated in this rugged CompactRIO Controller is a DDR3L, 1 GB DRAM, which is designed to operate with a maximum theoretical data rate of 8.55 GB/s. The powerful hardware resources of the NI cRIO-9053 CompactRIO Controller make it an ideal solution for extensive and challenging industrial applications. Moreover, the versatile communication capabilities allow for seamless integration into your existing infrastructure.
| Model | cRIO-9053 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 786424-01 |
| Type | CompactRIO Controller |
| Slot Count | 4 |
| Processor Core | 1.33 GHz Dual Core Intel Atom |
| FPGA | Artix-7 50T |
| Maximum Power Consumption | 30 W |
| Dimensions | 8.72 in. × 3.25 in. × 3.53 in. |
| Weight | 2 lbs, 9 oz. |
| Warranty | 2-3 Year Warranty |
| cRIO-9053 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for cRIO-9053:
National Instruments cRIO-9053 Frequently Asked Questions
Question: How many DMA channels does the FPGA of the cRIO-9053?
Answer: The FGPA has 16 DMA channels.
Question: How many counter/timers does the cRIO Controller have?
Answer: The cRIO-9053 has 4 general purpose counters/timers.
Question: What is the voltage input range of the cRIO-9053?
Answer: The voltage input range, measured at the power connector, is 9 V DC to 30 V DC.
Question: What is the maximum power consumption of the CompactRIO Controller?
Answer: The cRIO-9053 has a max power consumption of 30 W.
