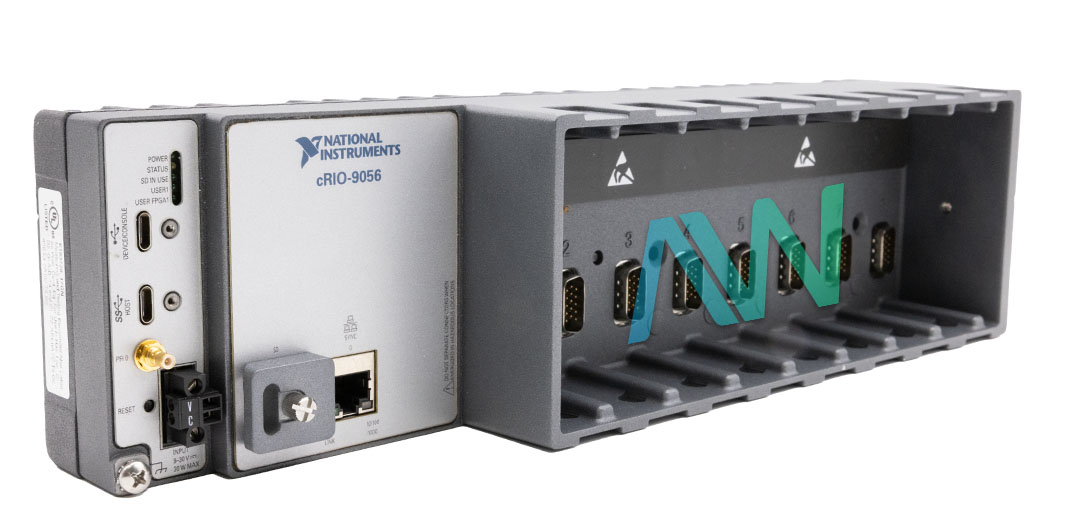

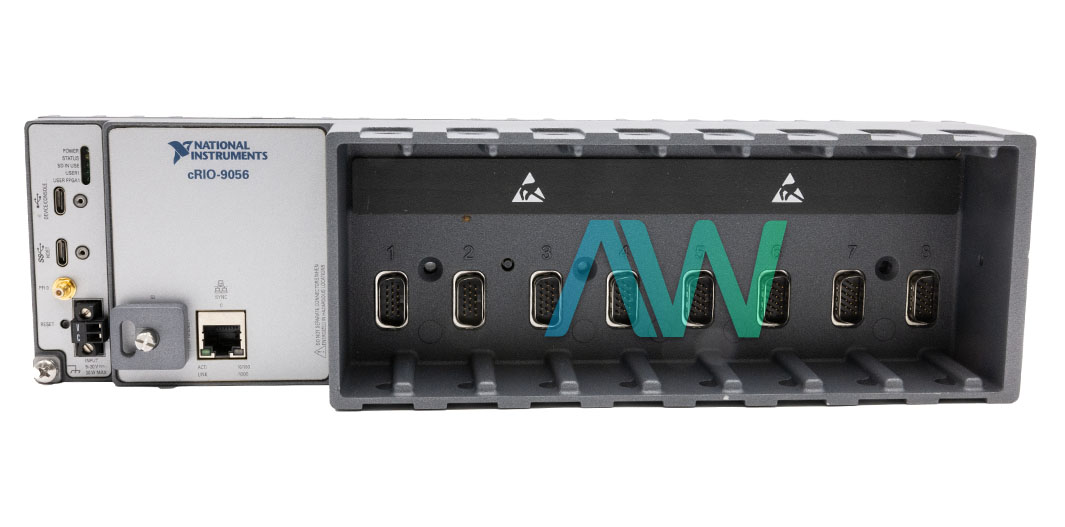

National Instruments cRIO-9056 CompactRIO Controller
Featured with a 1.33 GHz Dual-Core CPU and 4 GB Storage, the NI cRIO-9056 (Part Number: 786426-01, 146494C-01L) is an 8-Slot CompactRIO Controller. This model is a deployable, rugged Controller for control and data acquisition applications and offers an Artix-7 FPGA, Intel Atom dual-core processing, and eight C Series module compatible slots. The NI cRIO-9056 operates on the NI Linux Real-Time (RT) operating system and offers synchronized timing and communications through the network using TSN.
The network/Ethernet port incorporated in this Controller is a standard, IEEE 802.3 compatible port, which supports auto-negotiated communication rates. For network timing and synchronization, the cRIO-9056 uses IEEE 802.1 AS-2011 protocol. This model comes with two USB ports: Port 1 and Port 2. Port 1 is a USB 2.0, Hi-Speed, Type-C device port that can transfer data at 480 Mb/s maximum data rate. Port 2 is a USB Type-C host port that can transfer data at 5 Gb/s. The National Instruments cRIO-9056 has a MicroSD card slot that can be used with MicroSD and MicroSDHC cards.
This CompactRIO Controller features a powerful, reconfigurable FPGA, which offers 94,400 flip-flops, 47,200 6-input LUTs, and 180 DSP slices. The DDR3L 1 GB volatile memory DRAM used in this Controller enables it to provide the users with an optimum experience. For synchronization-related functions, the cRIO-9056 comes equipped with a Real-Time internal clock that offers up to 200 ppm accuracy (40 ppm at 25°C). In addition, this National Instruments CompactRIO Controller has four general-purpose Counters/Timers as well
| Model | cRIO-9056 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 786426-01, 146494C-01L |
| Type | CompactRIO Controller |
| Slots | 8 |
| Processor Core | 1.33 GHz Dual Core Intel Atom |
| FPGA | Artix-7 75T |
| Dimensions | 12.94 in. × 3.25 in. × 3.53 in. |
| Weight | 3 lbs, 8 oz. |
| Volatile Memory (DRAM) | DDR3L, 1 GB, 8.533 GB/s |
| Voltage Range | 9 V DC to 30 V DC |
| Operating Temperature Range | -20 °C to 55 °C |
Associated part numbers for cRIO-9056:
National Instruments cRIO-9056 Frequently Asked Questions
Question: Which driver software can be used with the cRIO 9056?
Answer: NI CompactRIO Device Drivers 18.1 or later can be used with the cRIO 9056.
Question: What is the operating temperature for the cRIO-9056?
Answer: The operating temperature for the cRIO-9056 is -20 to 55 °C.
Question: What is the internal real-time clock accuracy of the NI cRIO-9056?
Answer: The internal real-time clock accuracy of the NI cRIO-9056 is 200 ppm; 40 ppm at 25 °C.
Question: What is the timing resolution of the NI cRIO 9056?
Answer: The timing resolution of the NI cRIO 9056 is 12.5 ns.
