cRIO-9065 Request for Availability

Q: What software needs to be installed before using the cRIO Controller?

The NI cRIO-9065 requires the following software and device drivers on the host computer in this order: 1. LabVIEW 2014 SP1 or later, 2. LabVIEW Real-Time Module 2014 SP1 or later, 3. LabVIEW FPGA Module 2014 SP1 or later, and 4. NI-RIO Device Drivers 14.5 or later.

cRIO-9065, 4-Slot, 512 MB RAM, 2 Ethernet Ports, Embedded CompactRIO Controller

Rated 4.7/5 | 19 ratings

cRIO-9065 National Instruments CompactRIO Controller | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

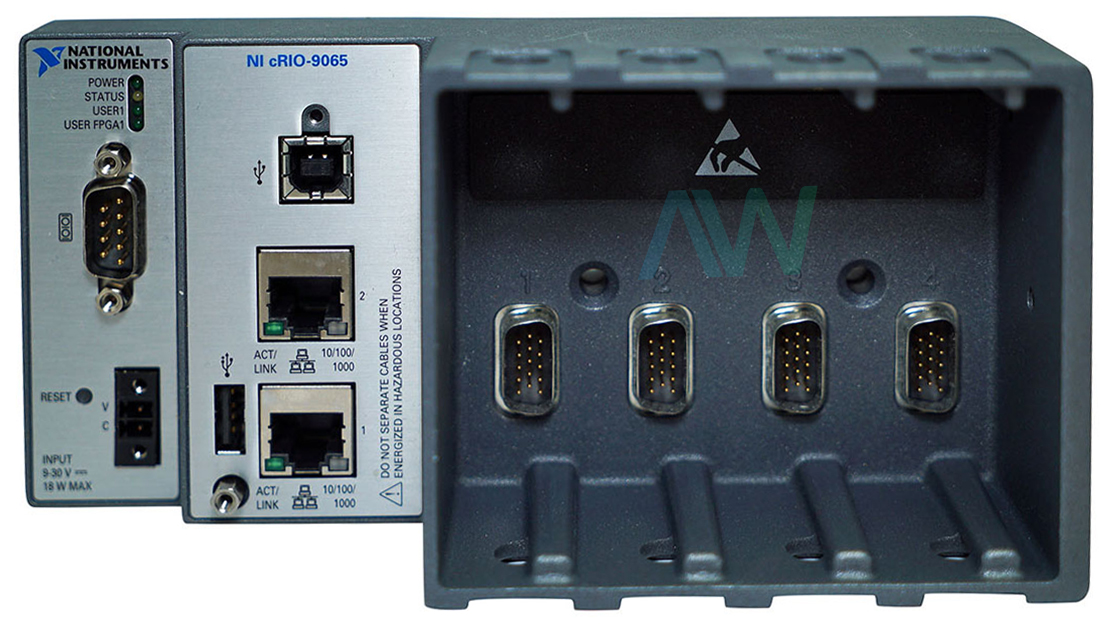

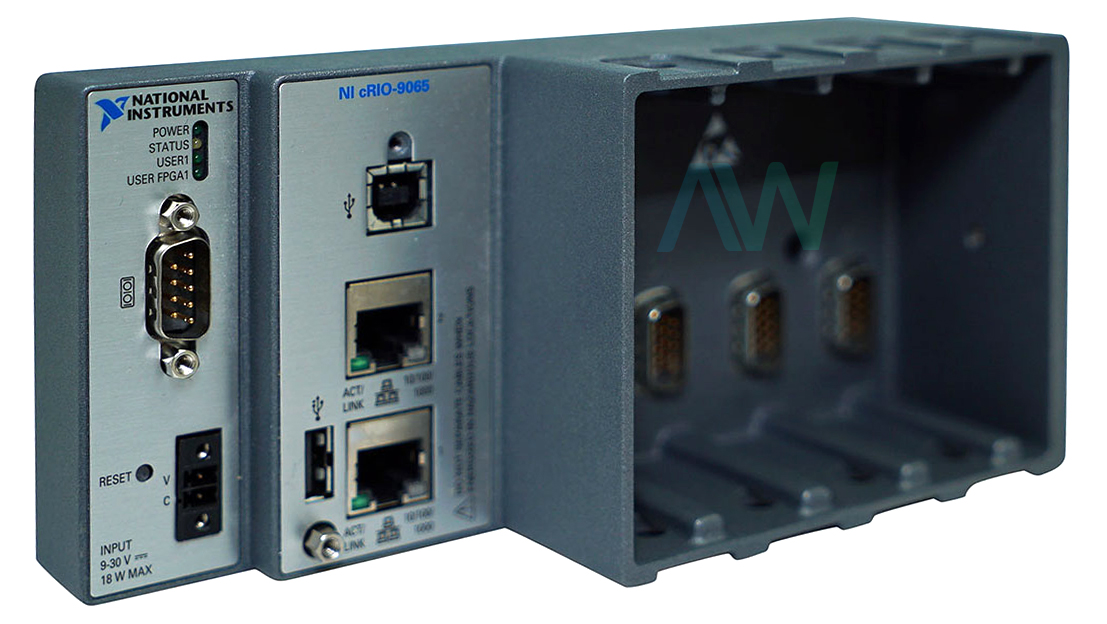

National Instruments cRIO-9065 CompactRIO Controller

The cRIO-9065 (Part Numbers: 783832-01 and 783832-02) CompactRIO Controller can follow the conventions built up for UNIX-style working frameworks. Other LabVIEW Real-Time targets take after the Microsoft Windows style traditions. To encourage the movement of uses from those goals, this goal is perfect with the Windows/C style home index.

To get the most extreme admissible temperature of 55 ° C, the user should mount the cRIO 9065 on a level plane on a level, metallic, vertical surface, such as a board or a divider. The user can mount the NI cRIO-9065 directly or they can utilize the NI board mounting kit. The user also has the option to mount the cRIO-9065 in several other ways: on a non-metallic surface, on a 35 mm DIN rail, on a work area, or in a rack. Placing the cRIO-9065 in these or other arrangements can lessen the most extreme passable surrounding temperature and can influence the average exactness of the modules in this CompactRIO Controller.

It is also possible to utilize a USB link to associate the cRIO-9065 USB device port to a host PC. The USB driver makes a virtual system interface card and appoints an IP deliver to the cRIO-9065 in the configuration of 172.22.11.x.

The manufacturer built up a Linux-based ongoing OS (RTOS) called NI Linux Real-Time, through long stretches of R&D advancement, which is included with this Controller, a joint effort with open-source network, and with commitments from accomplices. NI Linux Real-Time is completely bolstered by the NI LabVIEW advancement condition with the LabVIEW Real-Time Module.

Model	cRIO-9065
Manufacturer	National Instruments
Part Numbers	783832-01, 783832-02
Type	CompactRIO Controller
Slots	4
CPU Frequency	667 MHz
Storage	1 GB
Dimensions	7.01 x 3.44 x 2.63 in.
Weight	24.56 oz.
Warranty	2-3 Year Warranty
cRIO-9065 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for cRIO-9065:

National Instruments cRIO-9065 Frequently Asked Questions

Question: What type of operating system does the cRIO-9065 use?

Answer: The controller has a real-time processor running the NI Linus Real-Time OS.

Question: Does the NI cRIO-9065 have a fan?

Answer: No, the controller is fanless.

Question: What software needs to be installed before using the cRIO Controller?

Answer: The NI cRIO-9065 requires the following software and device drivers on the host computer in this order: 1. LabVIEW 2014 SP1 or later, 2. LabVIEW Real-Time Module 2014 SP1 or later, 3. LabVIEW FPGA Module 2014 SP1 or later, and 4. NI-RIO Device Drivers 14.5 or later.
