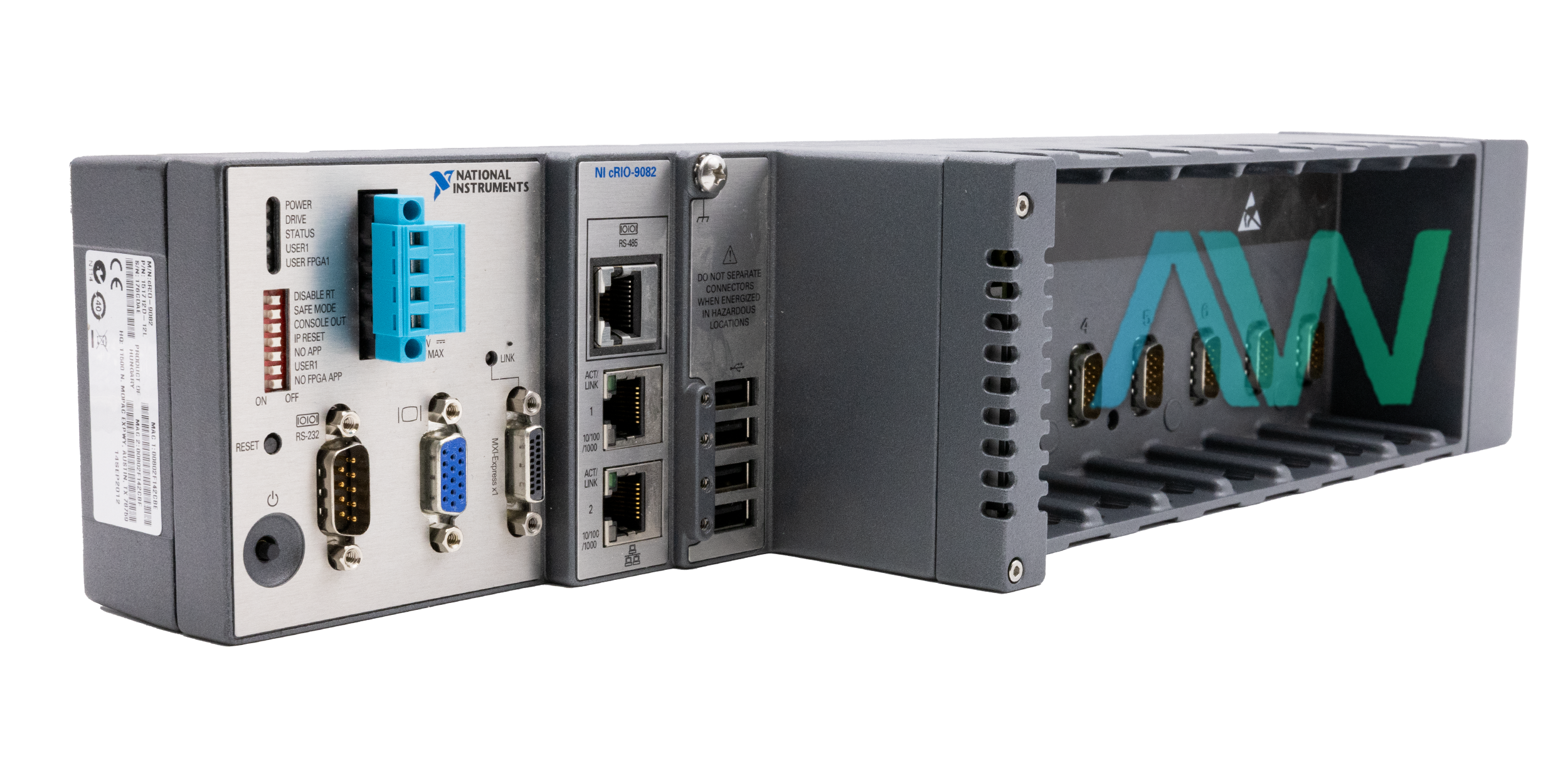

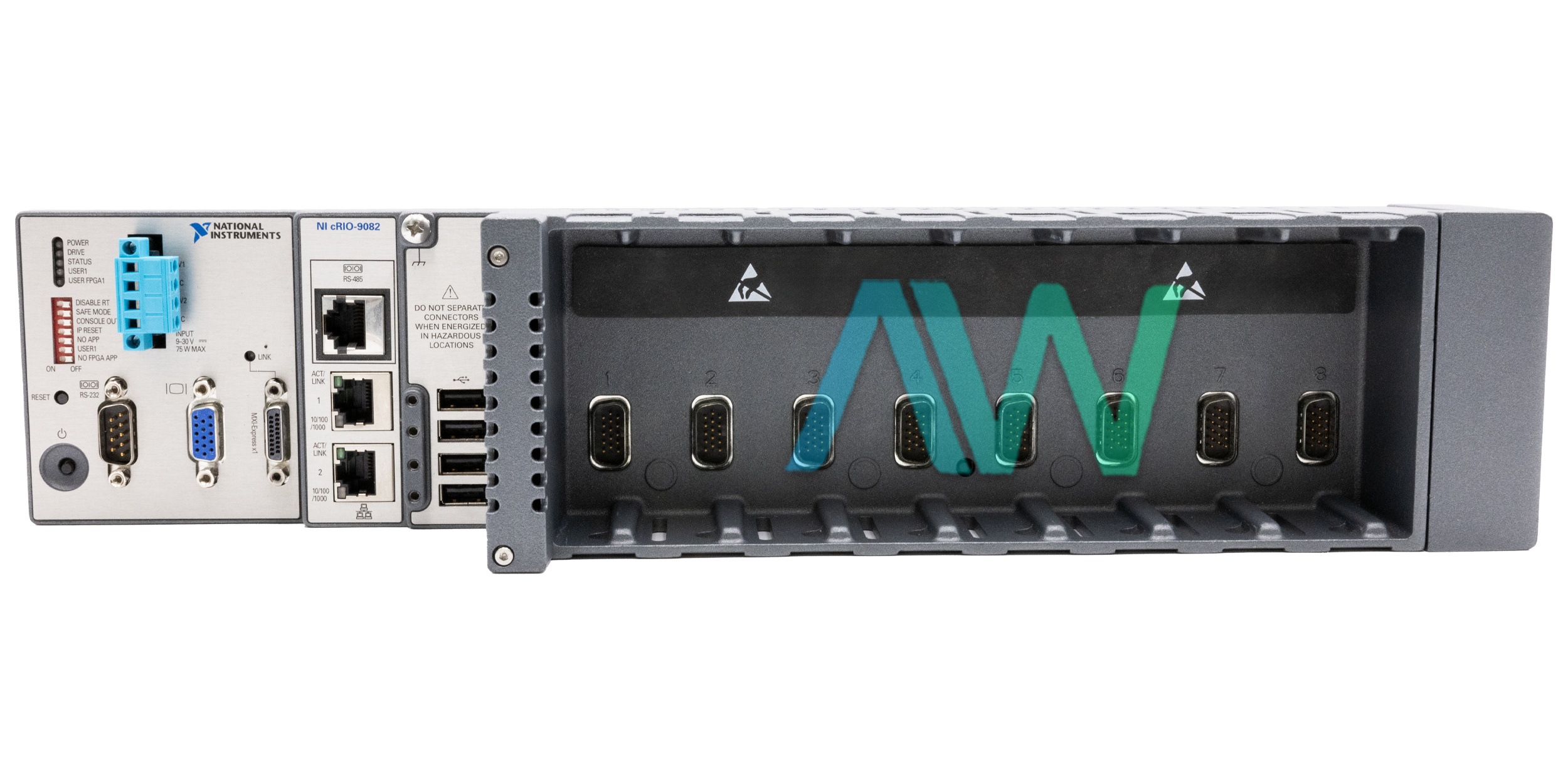

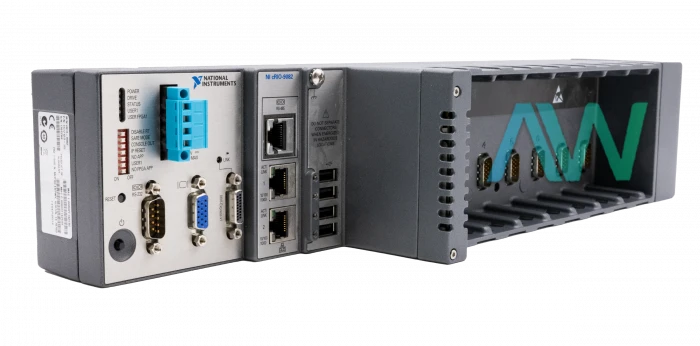

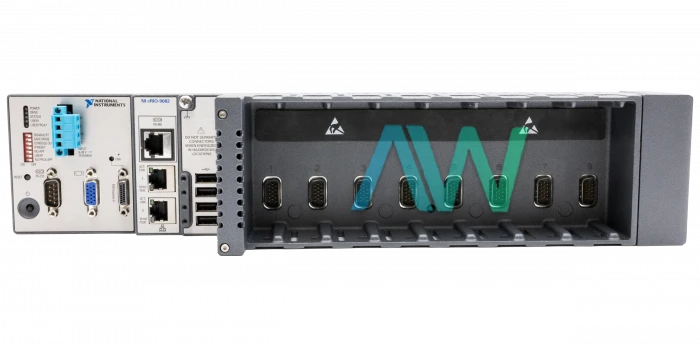

National Instruments cRIO-9082 CompactRIO Controller
Featured with a Xilinx Spartan-6 LX150 FPGA, 2 GB of DDR3 system memory, and 32 GB of CFast SSD nonvolatile storage, the National Instruments cRIO-9082 (Part Numbers: 781787-02, 781787-12, 781787-03) is an 8-Slot, CompactRIO Controller. This model comes with a robust configuration and broad connectivity options, making it suitable for critical and complex industrial applications. The various part numbers of the cRIO Controller differ depending on their operating system. Part numbers 781787-02 and 781787-03 are both for the RealTime OS, but part number 781787-03 is also conformal coated. Part number 781787-12 is designed for use with the Windows OS.
This cRIO-9082 features an Intel Core i7-660UE processor with two cores, a base frequency of 1.33 GHz, and a maximum single-core Turbo Boost frequency of 2.4 GHz. It includes 4 MB of shared on-die L3 cache and 256 KB of L2 cache per core. For display output, the VGA port supports a maximum resolution of 1600 × 1200 at 60 Hz. The device is equipped with four USB 2.0 ports that support various USB peripherals, including keyboards, mice, and external storage devices.
The reconfigurable Xilinx Spartan-6 LX150 FPGA used in this module offers 4,824 kbit of block RAM, 3 DMA channels, 180 DSP slices, 184,304 flip-flops, 92,152 (6-input) LUTs. Additionally, the internal real-time clock has an accuracy of 200 ppm (35 ppm at 25 °C). The maximum power consumption is 75 watts, and the input voltage range is 9 V to 30 V. The cRIO-9082 also supports redundant power supply inputs for increased reliability.
When it comes to environmental specifications, the cRIO-9082 has an operating temperature range of 0 °C to 45 °C, which can be extended to 0 °C to 55 °C when using an NI panel mount kit. When not being used, the storage temperature of the device ranges from -40 °C to 85 °C. The physical dimensions of this cRIO Controller measure 15.89 x 3.43 x 4.80 in. (403.7 mm × 88.1 mm × 121.9 mm), and it weighs 6.7 lb. (3.1 kg).
The cRIO-9082 is no longer available from National Instruments, but the CompactRIO Controller will remain available in perpetuity with Apex Waves for both purchase and repair services!
| Model | cRIO-9082 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781787-02, 781787-12, 781787-03 |
| Type | CompactRIO Controller |
| Slots | 8 |
| CPU Frequency | 1.33 GHz |
| Storage | 32 GB |
| USB Ports | 4 |
| FPGA | Xilinx Spartan-6 LX150 |
| DMA Channels | 3 |
| Available Block RAM | 4,824 kbit |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 85 °C |
| Dimensions | 15.89 x 3.43 x 4.80 in. (403.7 mm × 88.1 mm × 121.9 mm) |
| Weight | 6.7 lb. (3.1 kg) |
| Operating Temperature | 0 °C to 45 °C |
| Power Consumption | 75 W (Max) |
| Input Voltage Range | 9 V to 30 V |
Associated part numbers for cRIO-9082:
National Instruments cRIO-9082 Frequently Asked Questions
Question: Is there a way to automatically turn on the power in the cRIO-9082 without pressing the power button?
Answer: To set the cRIO Controller to automatically turn on, you have to change the setting value of the DC Power Behavior in the BIOS of the cRIO-9082. You can find it under advanced, then change from “stay off” to “turn on.”
Question: What is the normal transfer bandwidth of the NI cRIO-9082?
Answer: The normal transfer bandwidth of the cRIO Controller is between 90-100 MB/s.
Question: What type of internal storage card is used with the cRIO Controller?
Answer: The NI cRIO-9082 uses a CFast card as the internal storage card.
