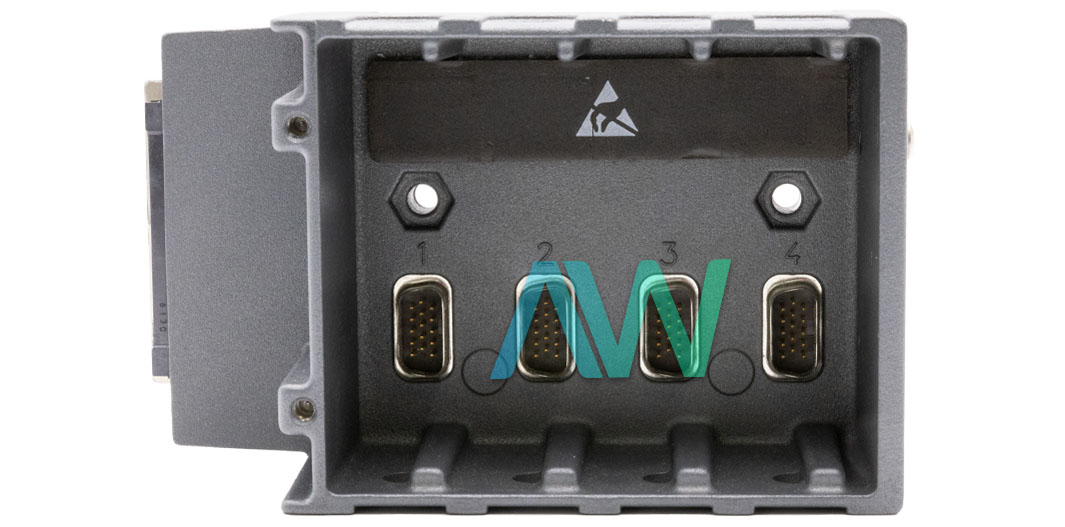

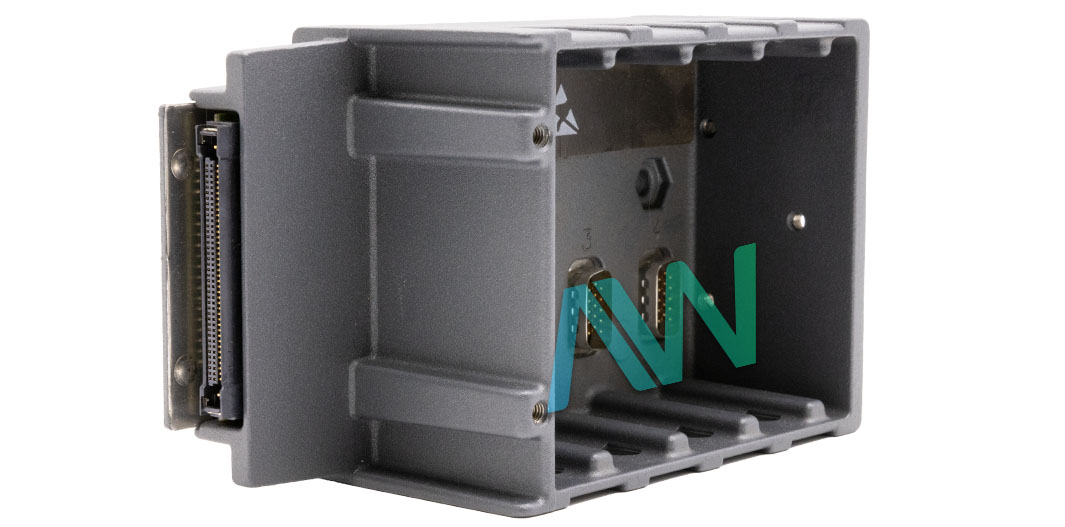

cRIO-9101, 4-Slot, Rugged CompactRIO Chassis

Rated 5/5 | 6 ratings

cRIO-9101 National Instruments CompactRIO Chassis | Apex Waves | Image
cRIO-9101 National Instruments CompactRIO Chassis | Apex Waves | Image
cRIO-9101 New
cRIO-9101 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

cRIO-9101 National Instruments CompactRIO Chassis | Apex Waves | Image
cRIO-9101 National Instruments CompactRIO Chassis | Apex Waves | Image
cRIO-9101 New
cRIO-9101 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments cRIO-9101 CompactRIO Chassis

The National Instruments cRIO-9101 (Part Number: 779052-01) is a 4-Slot, CompactRIO Chassis. This rugged Chassis can be used to add multiple C Series I/O modules to an existing monitoring or control application. Users can program this Chassis through scan mode for a quick expansion of their real-time infrastructure or through the onboard FPGA.

The reconfigurable FPGA incorporated in this Chassis has 5120 logic slices and 81,920 bytes of embedded RAM. The addition of this FPGA enables the cRIO 9101 to offer high-speed control and I/O. To communicate with the C Series modules installed in any of the four slots, a CompactRIO Controller is necessary. If the user wants to mount this Chassis on a DIN rail, then they can acquire the National Instruments 9912 DIN rail kit separately. The other possible mounting options are rack mounting and panel mounting.

 The NI cRIO-9101 weighs around 490 g and draws 500 mW of power from +5 VDC and 1,800 mW of power from +3.3 VDC rail. Thus, the total power required (maximum) for operating this Chassis is 2,300 mW. To start using the CompactRIO system, a Windows computer with NI-RIO drivers is required. In this Chassis, each I/O module maintains an individual connection to the FPGA core at a precise synchronization of up to 25 ns resolution. This Chassis is considered the heart of any CompactRIO system since it comes with an I/O core. The NI cRIO 9101 allows the user to remove I/O modules with the power supply in the ON position without affecting the entire control system.

ModelcRIO-9101
ManufacturerNational Instruments
Part Number779052-01
TypeCompactRIO Chassis
Slots4
FPGA1M Gate
Logic Slices5,120
Embedded RAM81,920 bytes
Weight17.3 oz.
Warranty2-3 Year Warranty
cRIO-9101 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cRIO-9101:

National Instruments cRIO-9101 Frequently Asked Questions



 Question: Does the NI cRIO-9101 have industrial certifications?

Answer: The NI cRIO-9101 has extreme industrial certifications and ratings.



Question: How do you program the cRIO 9101?

Answer: The cRIO 9101 can be programmed using the LabVIEW FPGA graphical development environment.



Question: What are the control logic rates of the NI cRIO 9101?

Answer: The NI cRIO 9101 uses LabVIEW control logic at rates up to 40 MS/s using single-cycle timed loops.
