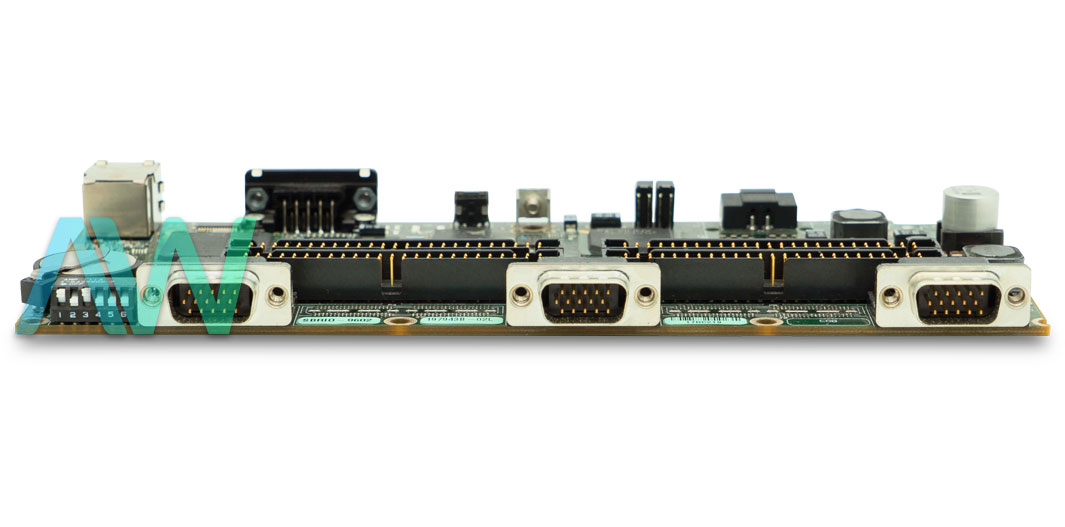

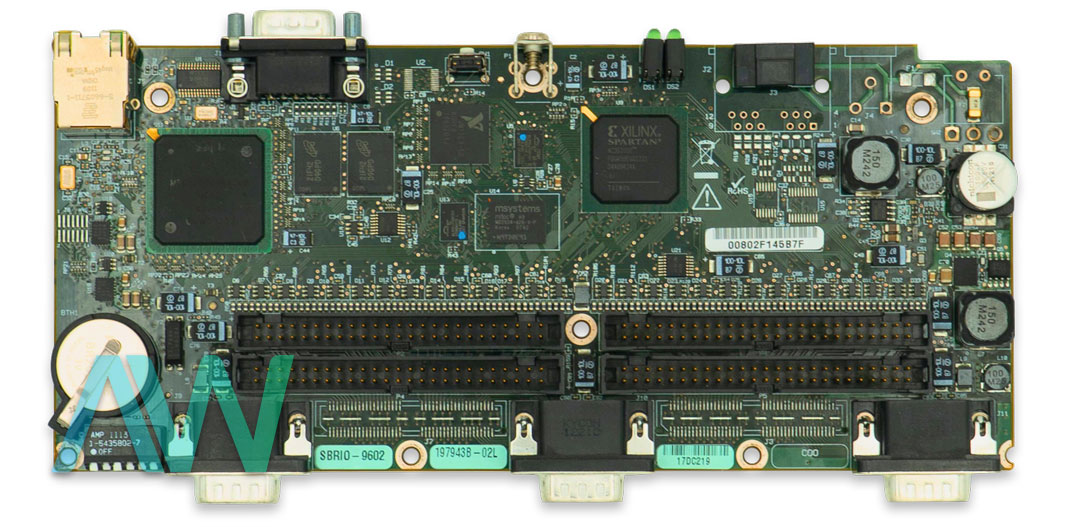

National Instruments sbRIO-9602 CompactRIO Single-Board Controller
The National Instruments sbRIO-9602 is a CompactRIO Single-Board Controller. This model comes equipped with a 400 MHz CPU, Digital I/O, and a 2M Gate FPGA. The NI sbRIO-9602 is known for its powerful configuration that consists of a user-configurable FPGA and a real-time processor. All these hardware resources come packaged on a single PCB (printed circuit board). This controller features 1 Serial Port, 1 Ethernet Port, three connectors for C Series modules, and 110 3.3 V digital input/output lines. The availability of numerous digital I/O channels makes the NI sbRIO-9602 an ideal choice for high-volume applications.
This controller is offered with 256 MB of internal nonvolatile storage and 128 MB of DRAM. The FPGA incorporated in this model has two million gates. The National Instruments sbRIO-9602 features built-in HTTP and FTP servers. Thus, you can access this device from a remote PC over the internet. For its operation, the sbRIO-9602 requires an external power supply that can operate within the range of 19 V to 30 VDC. The integrated FPGA on this device can easily be configured for custom I/O timing, inline signal processing, and high-speed control through a LabVIEW FPGA Module.
The serial port on this controller can be used for adding peripheral devices such as a keyboard and mouse. The NI sbRIO-9602 is designed to operate in harsh industrial environments as its operating temperature range is -20 to 55 °C. All 3.3 V digital I/O lines are connected directly to the field-programable gate array.
sbRIO-9602 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | sbRIO-9602 |
|---|---|
| Manufacturer | National Instruments |
| Type | CompactRIO Single-Board Controller |
| DIO Channels | 110 |
| Available Embedded RAM | 720 kbits |
| Logic Cells | 46,080 |
| FPGA Type | Xilinx Spartan-3 Reconfigurable FPGA |
| System Memory | 128 MB minimum |
| Nonvolatile Memory | 256 MB minimum |
| Weight | 7.0 oz. |
| Warranty | 2-3 Year Warranty |
| sbRIO-9602 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for sbRIO-9602:
National Instruments sbRIO-9602 Frequently Asked Questions
Question: What LED indicators are featured on the sbRIO-9602?
Answer: The controller is equipped with four LED indicators: FPGA, USER, POWER, and STATUS.
Question: What is the processor speed?
Answer: The processor speed of the sbRIO-9602 Controller is 400 MHz.
Question: What are the power requirements for the sbRIO-9602?
Answer: The power supply has a 19–30 VDC voltage range and a current limit of 1.8 A.
Question: What is the cabling distance of the CompactRIO Single-Board Controller?
Answer: The sbRIO-9602 has a maximum cabling distance of 100 m/segment.
