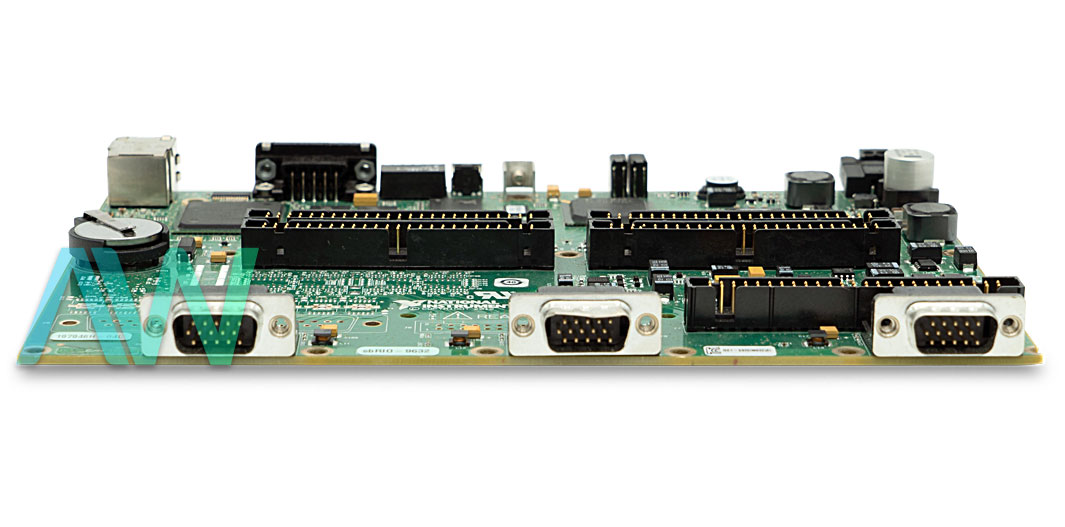

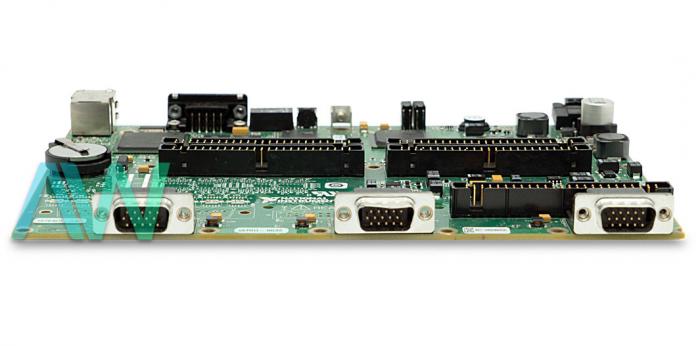

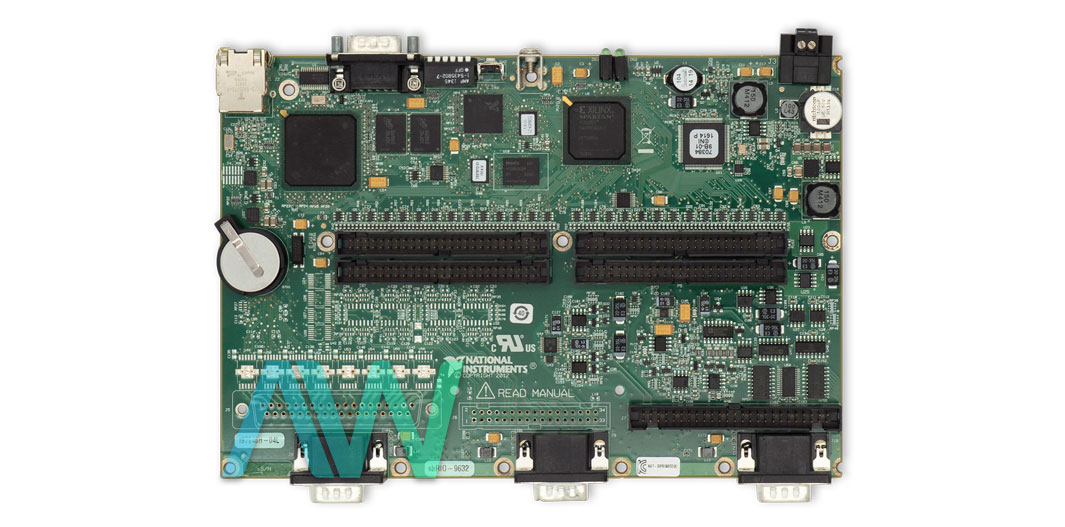

National Instruments sbRIO-9632 CompactRIO Single-Board Controller
Featuring 128 MB of Dynamic RAM (DRAM) and a 2M FPGA, the National Instruments sbRIO-9632 is a CompactRIO Single-Board Controller. This Controller offers better embedment in a variety of applications where high-performance and flexibility are necessary. The sbRIO-9632 is powered by a 400 MHz Freescale MPC5200 microprocessor. Moreover, you also get a completely configurable field-programmable gate array (FPGA) in this Controller that can be programmed for high-speed control, inline signal processing, and custom I/O timing applications through the LabVIEW FPGA Module.
The NI sbRIO-9632 CompactRIO Single-Board Controller comes with multiple communication ports that are widely found in other industrial devices, including a serial port and an Ethernet port. The availability of these communication interfaces provides you with unlimited integration opportunities. Thus, you can now design and integrate a CompactRIO control or data acquisition system with your existing National Instruments control or DAQ hardware. The National Instruments sbRIO-9632 can host as many as three C Series modules, since it comes with three onboard C Series connectors.
The availability of four analog output channels and 32 single-ended (or 16 differential) analog input channels make this Controller a viable solution where a combination of digital and analog signals needs to be handled. The Xilinx Spartan-3 FPGA incorporated in this Controller has 46,080 logic cells and 720 kb of available embedded RAM. The NI sbRIO 9632 offers an advanced user-interference through the built-in FTP and HTTP servers. You can easily communicate with this Embedded Controller via a standard Ethernet cable.
sbRIO-9632 Obsolete Status has been announced by National Instruments, but the CompactRIO Single-Board Controller will still be available for purchase and repairs by Apex Waves.
| Model | sbRIO-9632 |
|---|---|
| Manufacturer | National Instruments |
| Type | CompactRIO Single-Board Controller |
| Processing Speed | 400 MHz |
| DRAM | 128 MB |
| Storage | 256 MB |
| FPGA | 2M Gate |
| Analog Inputs | 32 |
| Analog Outputs | 4 |
| sbRIO-9632 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for sbRIO-9632:
National Instruments sbRIO-9632 Frequently Asked Questions
Question: What is the cabling distance of the sbRIO-9632?
Answer: The controller has a maximum cabling distance of 100 m/segment.
Question: Is the FPGA reconfigurable?
Answer: Yes, the sbRIO-9632 features a Xilinx Spartan-3 Reconfigurable FPGA.
Question: What type of DAQ does the analog output have?
Answer: The analog output of the NI cRIO Controller has a string DAC type.
Question: Does the sbRIO-9632 offer any overvoltage protection?
Answer: Yes, the controller offers overvoltage protection of ±25 V at 25 °C.
