sbRIO-9651 Request for Availability

Q: How many DMA channels are on the FPGA of the SOM Device?

The reconfigurable FPGA of the sbRIO-9651 features 16 DMA channels.

Q: What is the ethernet compatibility for the device?

The sbRIO-9651 is compatible with IEEE 802.3 for ethernet support.

Q: What should I know about mounting my sbRIO-9651?

The fastener torque for mounting the SOM device is 0.76 N · m (6.70 lb · in.).

sbRIO-9651, 667 MHz Dual-Core CPU, CompactRIO System on Module Device

Rated 4.5/5 | 12 ratings

sbRIO-9651 National Instruments CompactRIO System on Module | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

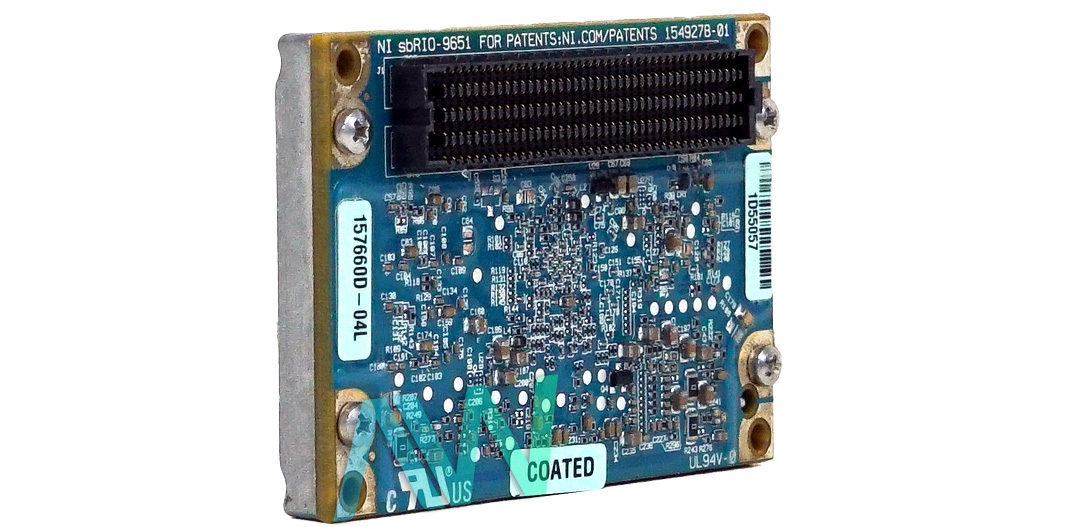

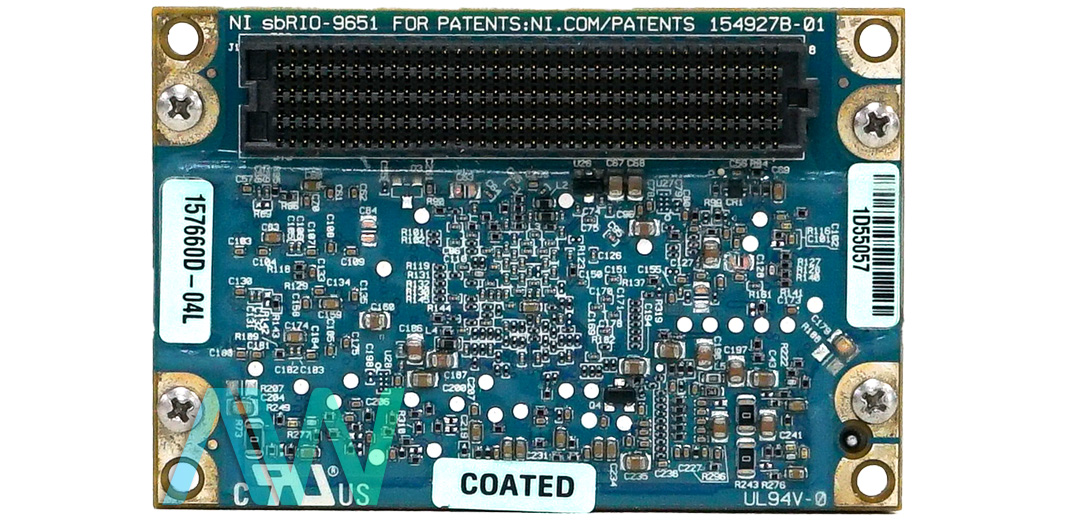

National Instruments sbRIO-9651 cRIO System on Module Device

The sbRIO-9651 (Part Numbers: 783525-01, 783525-02, 783525-03) is a cRIO System on Module Device developed by the manufacturer National Instruments. The difference between the different part numbers for this model is that part number 783525-01 is a SOM Development Kit, while part number 783525-02 is an OEM Kit and part number 783525-03 is the conformal coated version of the OEM kit. This module works with the NI-RIO Device Drivers from August 2014 or later. The sbRIO-9651 also supports LabVIEW software, including LabVIEW FPGA Module 2014 or later, LabVIEW 2014 or later, and LabVIEW Real-Time Module 2014 or later. The module can be used with the AlphaNovatech, S01LZZ0E-A heat sink and several types of mating connectors. It is designed to be used with the NI Linux Real-Time (32 bit) operating system.

The National Instruments sbRIO-9651 is equipped with a reconfigurable Xilinx Zynq-7020 FPGA and features an ARM Cortex-A9 architecture. Equipped with a dual-core processor that has a speed of 667 MHz, the DRAM volatile memory of the module is 512 MB while the non-volatile memory measures 512 MB. This System on Module is designed, validated, and assessed for dependable and high-volume OEM applications. For optimal connectivity, it is assembled with a range of serial ports, such as USB, RS-232, and RS-485. The maximum data rate of the device is 480 MB/s for USB interfaces, and it features CAN0, CAN1, and Ethernet support.

To make validation thermal solutions easier, there are three integrated temperature monitoring sensors included with the NI sbRIO-9651. Factors such as mounting, neighboring power dissipation, and resource consumption all have a significant impact on the thermal performance of NI sbRIO devices. The operating temperature and storage temperature ranges are the same, measuring from -40 °C to 85 °C. Physically, the SOM Device measures dimensions of 50.8 mm × 76.2 mm (2.0 in. x 3.0 in.) and weighs in at 77 g (2.72 oz).

While the sbRIO-9651 now has limited availability from National Instruments, the module will still be fully available for purchase and repairs with Apex Waves in perpetuity.

Model	sbRIO-9651
Manufacturer	National Instruments
Part Numbers	783525-01, 783525-02, 783525-03
Type	cRIO System on Module Device
CPU	667 MHz Dual-Core
FPGA	Zynq-7020
DRAM	512 MB
Storage	512 MB
FPGA RAM	560 KB
DMA Channels	16
Network Interface	10Base-T, 100Base-TX, 1000Base-T Ethernet
Real-Time Clock Accuracy	5 ppm
Flash Reboot Endurance	100,000 Cycles
Noncondensing Humidity Range	10% RH to 90% RH (Operating) 5% RH to 95% RH (Storage)
Ambient Operating Temperature	-40 °C to 85 °C
Storage Temperature Range	-40 °C to 85 °C
Dimensions	2.0 in. X 3.0 in. (50.8 mm × 76.2 mm)
Weight	2.72 oz. (77 g)
Warranty	Three Year Warranty
sbRIO-9651 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote for Pricing
