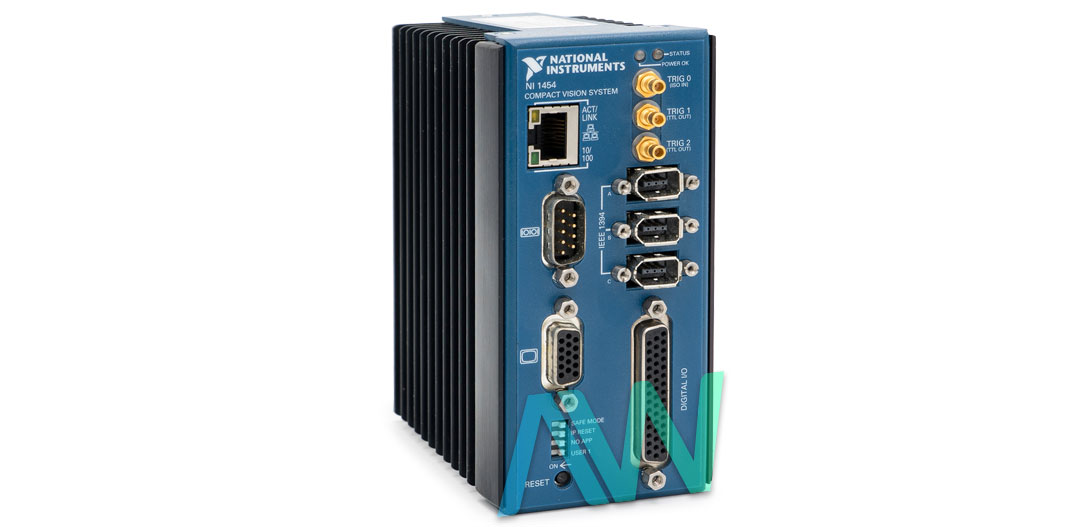

CVS-1454 National Instruments Compact Vision System | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

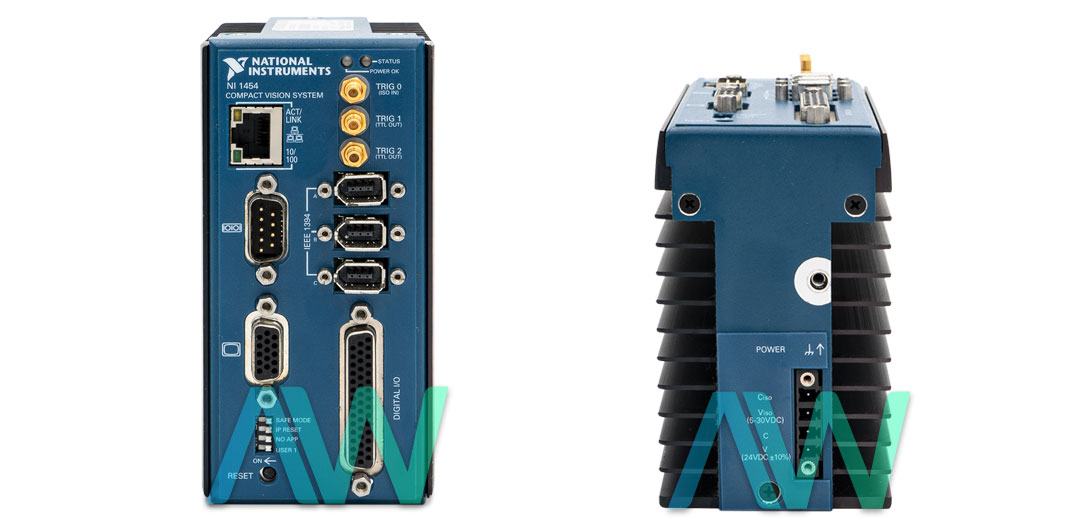

National Instruments CVS-1454 Compact Vision System

Featured with RS232 and Ethernet Ports, the NI CVS-1454 (Part Number: 778638-01) is a Compact Vision System. This model comes equipped with a high performance processor and supports 3 FireWire Camera Inputs. The CVS 1454 is a flexible and rugged real-time image acquisition, storage, and analysis solution. This model is a viable solution for gauging, alignment, inspection, identification, and various other applications. A robust processor integrated with the 3 integrated FireWire ports enables the CVS-1454 to handle any inspection job.

This compact vision system has 15 digital input lines and 14 digital output lines. Out of its 15 digital input lines, 12 are 24 V isolated lines and the remaining are dedicated TTL lines. Out of the 14 digital output lines, ten are dedicated TTL lines and four are 24 V isolated lines. The FireWire image acquisition allows users to choose the right sensor for their applications. Thus, users can choose either a high-performance or a low-cost, low resolution sensor.

Using its broad range of digital I/O options, the NI CVS-1454 Compact Vision System can easily communicate with numerous automation devices, such as relays, robotics, and PLCs. In addition, the NI CVS-1454 can send data and commands to other devices through integrated Serial and Ethernet ports. The VGA output port incorporated in this module can be used to provide users with a real-time display of their product under inspection. The inclusion of multiple FireWire ports enables users to connect multiple cameras to perform multidimensional inspection.

Model	CVS-1454, NI-1454
Part Number	778638-01
Manufacturer	National Instruments
Type	Compact Vision System
Typical Processor Performance	833 MIPS
Digital I/O Lines	29
Cameras	Up to 3
Dimensions	4 by 5 by 2.5 in.
Weight	2.15 lb
Warranty	2-3 Year Warranty
CVS-1454 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for CVS-1454:

National Instruments CVS-1454 Frequently Asked Questions

Question: Is it possible to use C code with the NI CVS-1454?

Answer: It is recommended to use LabWindows/CVI for C-based shared libraries when using the NI CVS-1454.

Question: My CVS-1454 is not recognizing my camera anymore. What can I do?

Answer: Check that the power supply of the CVS-1454 device can supply enough power to the camera at the same time.

Question: How can I save the image file in the NI CVS-1454 Compact Vision System to host a PC via TCP/IP instead of local memory?

Answer: To save the image files via TCP/IP instead of local memory when using the NI CVS-1454 Compact Vision System, select any network location using the image logging setup under "Tools>>Configure Input/Output" in VBAI. Type the network target in the save location.
