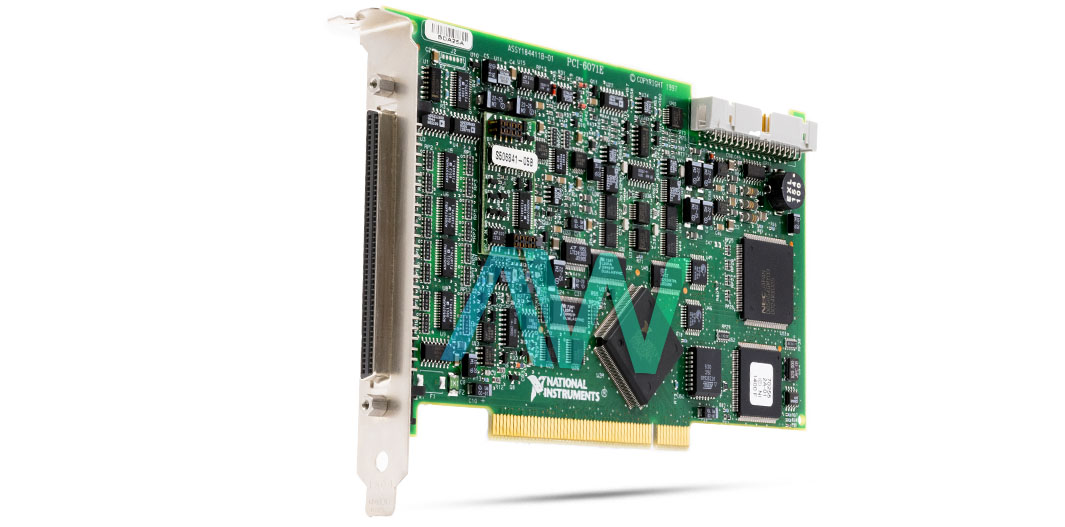

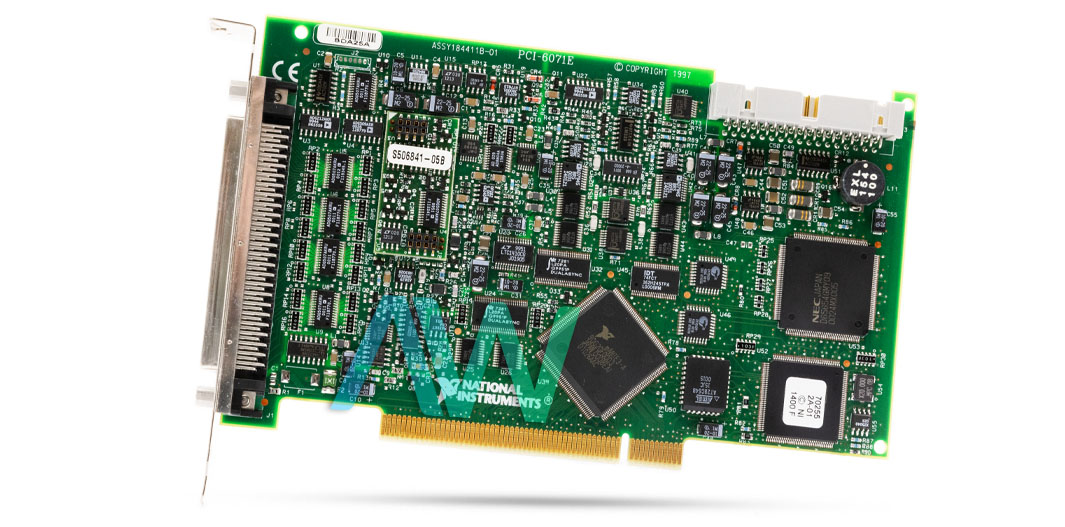

National Instruments 777515-01 Multifunction I/O Device
The 777515-01 is a crucial part of National Instruments' PCI-6071 Model E series. Specifically engineered as a multifunction input/output device, it provides an extensive array of functions appropriate for a wide range of applications in multiple industries, ranging from factory test environments to laboratory automation.
With a maximum sampling rate of 1.25 MS/s, users can obtain data using this device's 64 analog input channels. For greater flexibility in signal capture, each channel can be set up as differential or single-ended. Assuring accurate and dependable conversion, the analog-to-digital converter (ADC) uses the successive approximation concept of operation. With a resolution of 12 bits, it provides accurate measuring capabilities that let users record minute changes in input signals.
Users can create voltage outputs as needed for their applications due to the 777515-01's two channels of 12-bit resolution for analog output. The device additionally offers further variety in digital system interface thanks to its eight digital input/output channels, which are compatible with 5V/TTL signals.
In terms of timing functionalities, the device incorporates two up/down counter/timers and one frequency scaler, each with a resolution of 24 bits. A variety of measurement and control activities require accurate timing and counting, which these qualities make possible.
To enhance system integration and synchronization, the 777515-01 incorporates the Real-Time System Integration (RTSI) bus. This allows multiple functions across up to five DAQ boards within a computer to be synchronized to a common trigger or timing event, ensuring coherence and accuracy in data acquisition and processing.
Because of the National Instruments MITE bus interface chip, the device has a switchless and jumperless design that makes it easy to configure and use. This chip implements the PCI Local Bus Specification, enabling software-configured interrupts and base memory addresses. In addition, the user experience is optimized with the integrated NI-DAQmx driver and configuration utility, which streamline setup and measurements.
| Part Number | 777515-01 |
|---|---|
| Model Name | PCI-6071 Model E |
| Part Type | Multifunction I/O Device |
| Analog Input Channels | 64 single-ended or 32 differential (software-selectable per channel) |
| Analog Input Resolution | 12 bits, 1 in 4,096 |
| Maximum Sampling Rate | 1.25 MS/s |
| Digital I/O Channels | 8 input/output |
| Analog Output Channels | 2 voltage outputs |
| Counter/Timer Channels | 2 up/down counter/timers |
| Maximum Resolution | 24 bits |
| Manufacturer | National Instruments |
