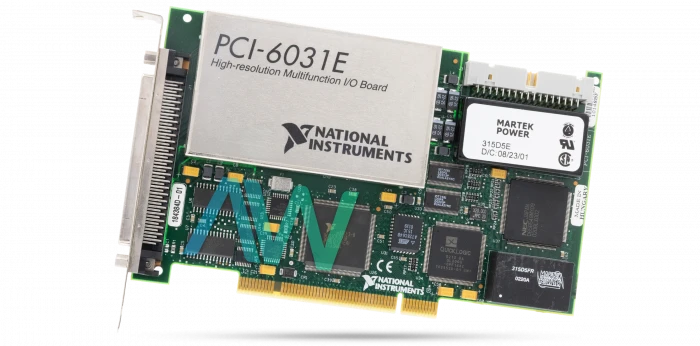

PCI-6031E NI Multifunction DAQ | In Stock Ships Today | Image

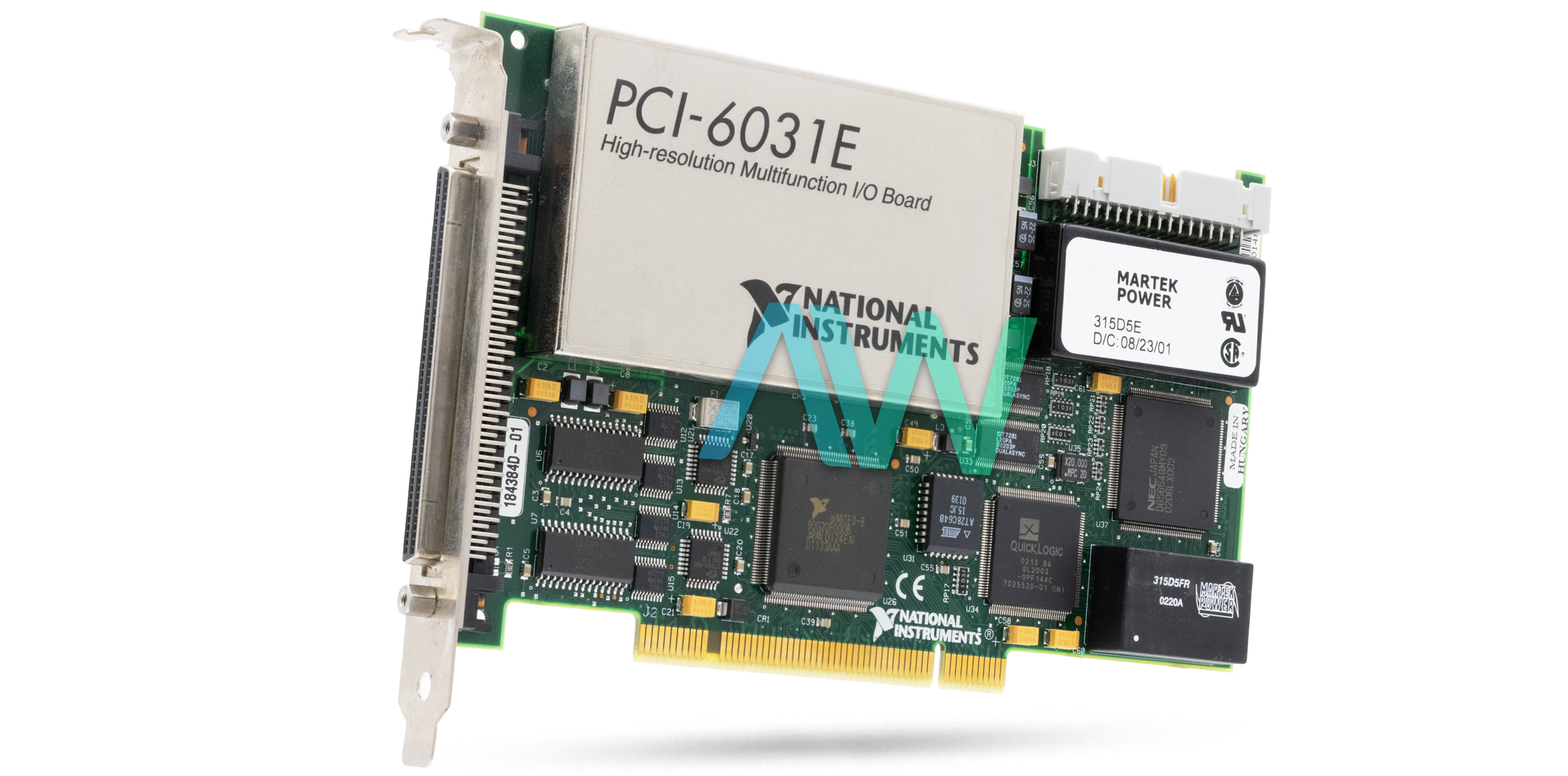

PCI-6031E NI Multifunction DAQ | In Stock Ships Today | Image
PCI-6031E New
PCI-6031E Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

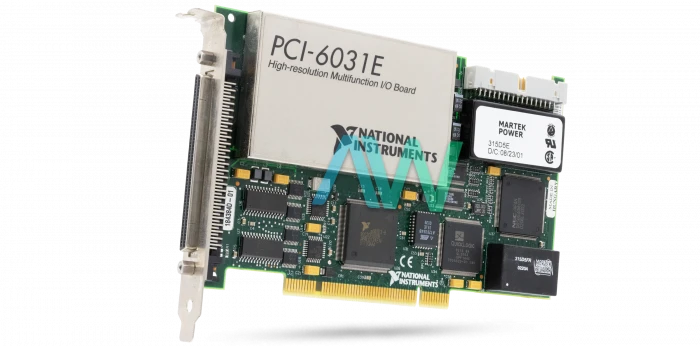

PCI-6031E NI Multifunction DAQ | In Stock Ships Today | Image

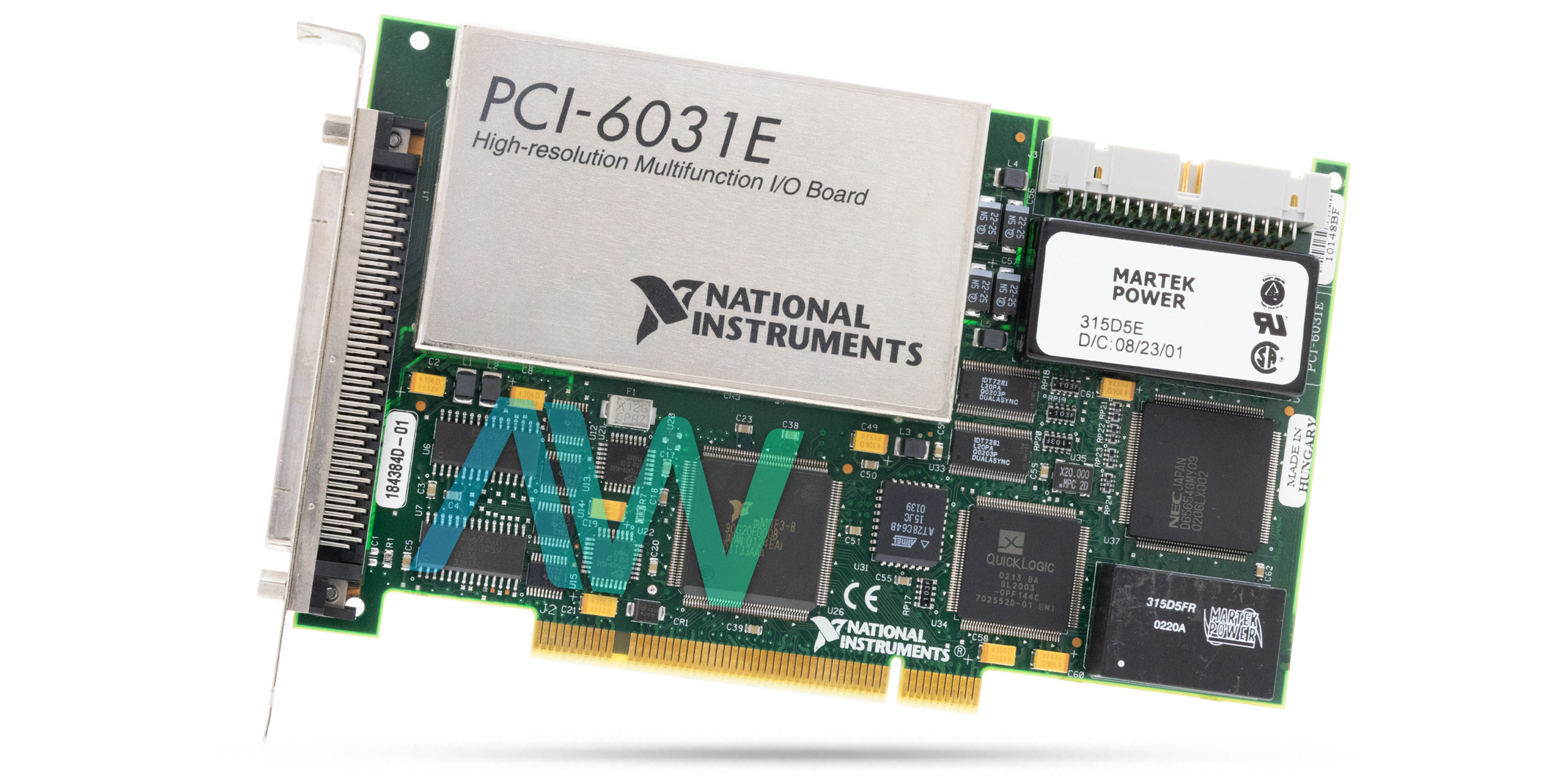

PCI-6031E NI Multifunction DAQ | In Stock Ships Today | Image
PCI-6031E New
PCI-6031E Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCI-6031E Multifunction DAQ

The National Instruments PCI-6031e (Part Number: 777514-01) is a multipurpose data acquisition (DAQ) tool intended for a range of industrial uses, such as research, design verification/test, production, and laboratory automation. It provides dependable DAQ capabilities with two 24-bit counters, digital I/O, and analog input/output (I/O). With digital-to-analog converters (DACs) for voltage outputs and 12-bit and 16-bit analog-to-digital converters (ADCs) with up to 64 analog inputs, this multifunctional board smoothly interfaces with PCI bus PCs.

It has extensive I/O functionality with eight lines of TTL-compatible digital I/O and two 24-bit counter/timers. Its plug-and-play design, which does away with the need for potentiometers, jumpers, or DIP switches, is one of its primary features. The National Instruments MITE bus interface chip makes configuration and calibration simple to handle through software. For accurate time-related operations, the PCI-6031e makes use of the National Instruments DAQ-STC system timing controller.

It consists of three timing groups that manage the general-purpose counter/timer, analog output, and analog input. It enables applications like equivalent time sampling and buffered pulse generation with a maximum timing resolution of 50 ns. Multiple measurement functions can be synced to a shared trigger or timing event using the Real-Time System Integration (RTSI) bus to overcome synchronization difficulties. This feature improves overall system performance by enabling the smooth integration of up to five PCI E Series boards in a computer system.

The PCI-6031e's capabilities are further expanded to enable high-voltage and sensor readings by supporting integration with SCXI signal conditioning modules. For plug-in DAQ boards, SCXI acts as the instrumentation front end, allowing for the capture of data from a variety of sources, including strain gauges, voltage sources, thermocouples, RTDs, and current sources.

Apex Waves buys, stocks, and repairs end-of-life hardware. While the PCI-6031e is no longer available from National Instruments, the Multifunction DAQ will remain available in perpetuity with Apex Waves!

ModelPCI-6031E
ManufacturerNational Instruments
Part Numbers777514-01
SeriesE Series
TypeMultifunction DAQ
Analog Inputs64 (or 32 Differential) Channels
Analog Outputs2 Channels
Digital I/O8 Channels
Counter/Timers2
Digital I/O Compatibility5 V/TTL
Counter/Timer24 Bits
I/O Connector100-Pin Female 0.050 D-Type Connector
Power Requirements+5 VDC - 1.5 A
Dimensions6.9 × 4.2 in.
Weight7.0 oz.
Driver SoftwareM Series DAQ and NI-DAQmx
WarrantyThree Year Warranty
PCI-6031E ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Info

Associated part numbers for PCI-6031E:

National Instruments PCI-6031E Frequently Asked Questions



Question: What is the driver software of the PCI-6031E?

Answer: The driver software used by the DAQ is NI-DAQ 7.



Question: What is the power-on state of the Multifunction DAQ?

Answer: The power-on state of the PCI-6031E is 0 V (±20 mV).



Question: What is the purpose of the analog input triggers?

Answer: The purpose of the analog input triggers on the NI PCI-6031E is clock, start and stop trigger, and gate.



Question: How often should the device be calibrated?

Answer: The PCI-6031E should be calibrated every year.
