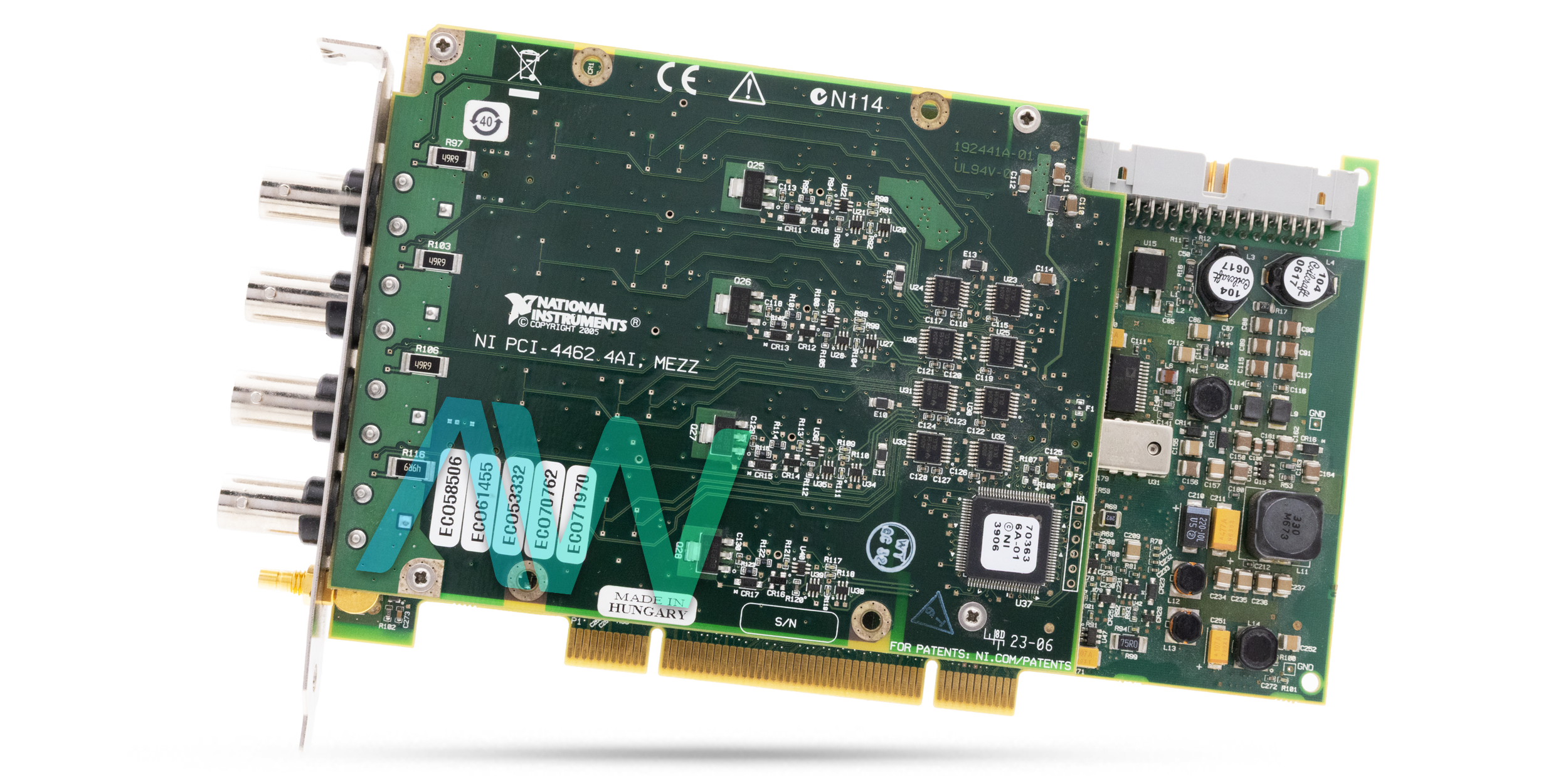

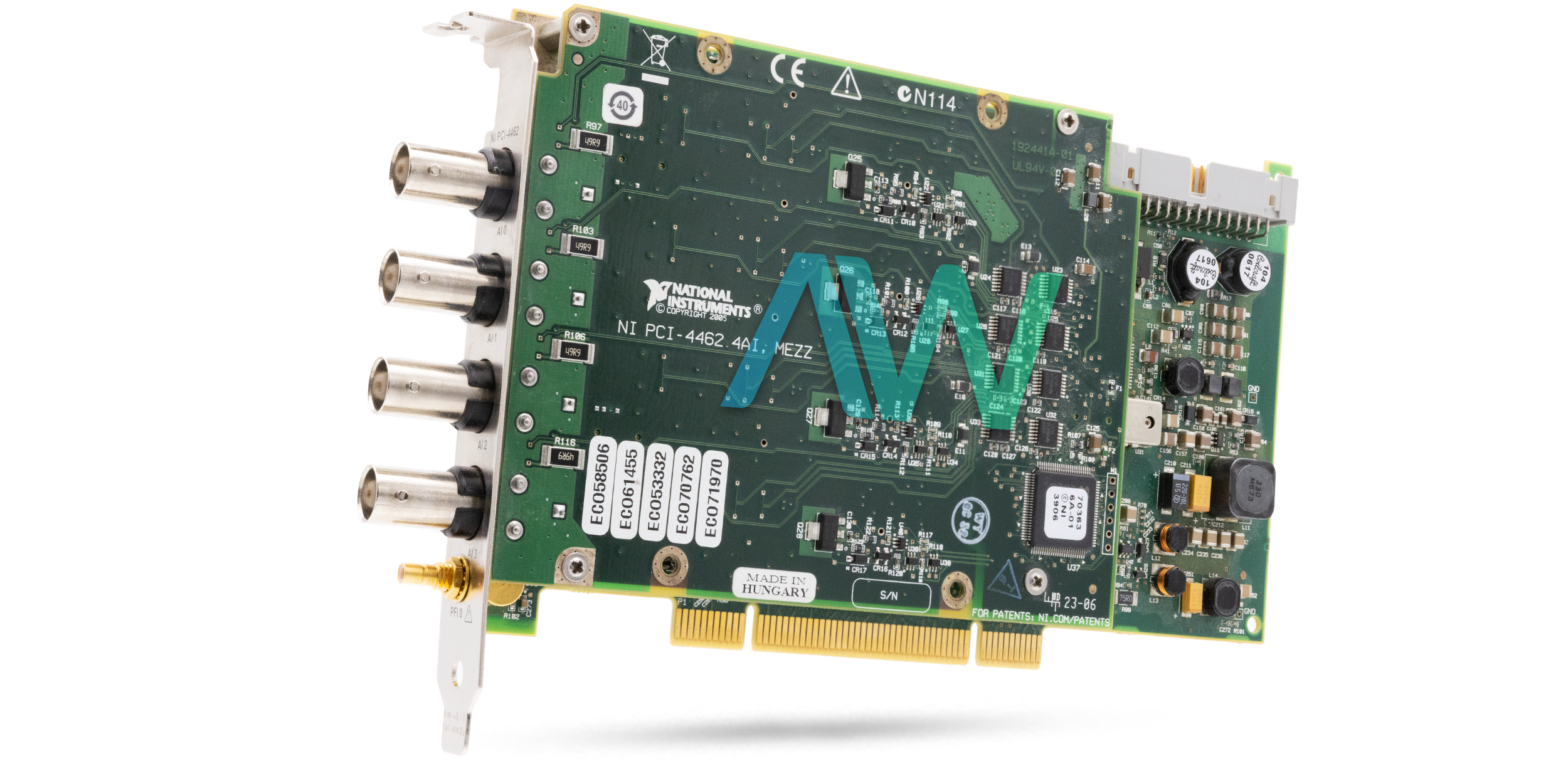

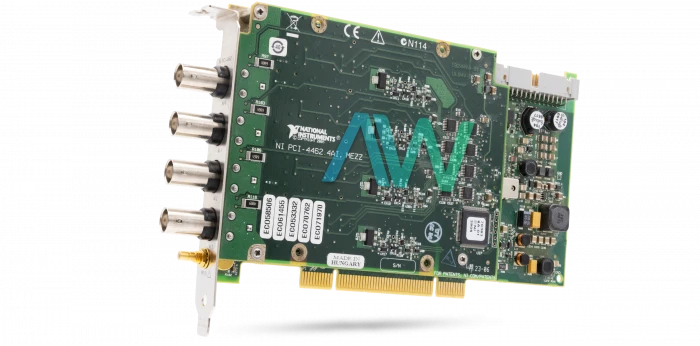

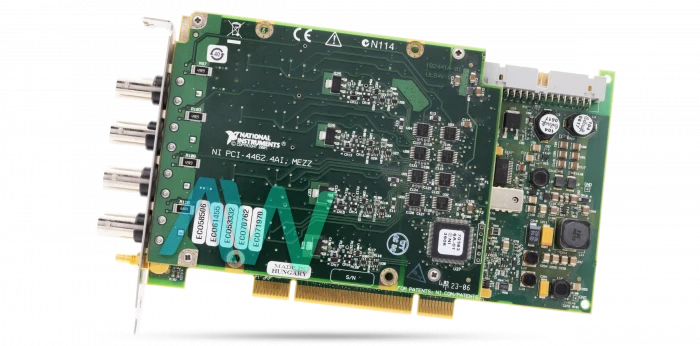

National Instruments PCI-4462 Sound and Vibration Device
The National Instruments PCI‑4462 (Part Number: 779309-01) comes with information sources that have both simple and advanced channels actualized in equipment to anticipate associating. Information signals initially go through a settled simple channel to evacuate any signs with frequency segments beyond the range of the ADCs. It has 4 differential analog input channels with a 24-bit ADC resolution.
The PCI 4462 NI Device does not have output channels; it is strictly a 4-input device. It also offers 0 or 20 dB of software-programmable attenuation, which is available on the input channels. This module has brilliant evenness of ±0.1 dB. The device is equipped with BNC female analog input connectors, and an SMB male digital trigger connector. It has a 3.3 V or 5 V PCI bus interface with 1 analog input DMA channel. The NI device has a warm-up time of 15 minutes, and is self-calibrated–it can also be externally calibrated, with a recommended calibration interval of 1 year.
This Sound and Vibration Device’s input channels have both analog and digital anti-aliasing filters. These channels expel the undesirable out-of-band components created when a signal is digitized from analog information. The digital channels, by dismissing images caused by the 32/64/128-times oversampling process (depending on sample rate), limit the bandwidth of the input signal to a fraction of the original sampling rate.
The AC/DC coupled device weighs 8.0 oz., and measures 6.9 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C for PCI models, and a storage temperature of -20 to 70 °C.
The PCI-4462 Sound and Vibration Device is no longer available from National Instruments, but Apex Waves will Sell, Buy, and Repair legacy hardware in perpetuity. Request a Quote today!
| Model | PCI-4462 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779309-01 |
| Type | Sound and Vibration Device |
| Differential Analog Input Channels | 4 |
| Input Resolution | 24-Bit |
| Input Impedance | 1 MΩ || 217 pF |
| Maximum Sample Rate | 204.8 kS/s |
| DMA Channels | 1 Analog Input |
| PCI Bus Interface | 3.3 V or 5 V Signal Environment |
| Analog I/O Connectors | BNC Female |
| Digital Trigger Connector | SMB Male |
| Analog Input Coupling | AC/DC |
| Operating Temperature Range | 0 to 50 °C |
| Storage Temperature Range | -20 to 70 °C |
| Dimensions | 6.9 x 3.9 in. (17.5 cm × 9.9 cm) |
| Weight | 8.0 oz. |
| Calibration Interval | Recommended 1 Year |
| PCI-4462 Manual | User and Maintenance Manuals Available for Download |
| Price | Request a Quote for Pricing Infomation |
Associated part numbers for PCI-4462:
National Instruments PCI-4462 Frequently Asked Questions
Question: Which type of front connection does the PCI-4462 have?
Answer: The device has a BNC, SMB front connection type.
Question: What is the FIFO buffer size of the NI PCI-4462?
Answer: The FIFO buffer size is 2,047 samples.
Question: Does the PCI-4462 have short circuit protection?
Answer: No, this Sound and Vibration Device does not include short circuit protection, as it does not have analog output channels.
Question: What is the minimum pulse width of the PCI-4462?
Answer: The minimum pulse width is 10 ns.
PCI-4462 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
MAINTAIN-FORCED-AIR-COOLING-NOTE-TO-USERS.PDF
NI-4461-4462-CALIBRATION-PROCEDURE.PDF
NI-4461-4462-SPECIFICATIONS.PDF
